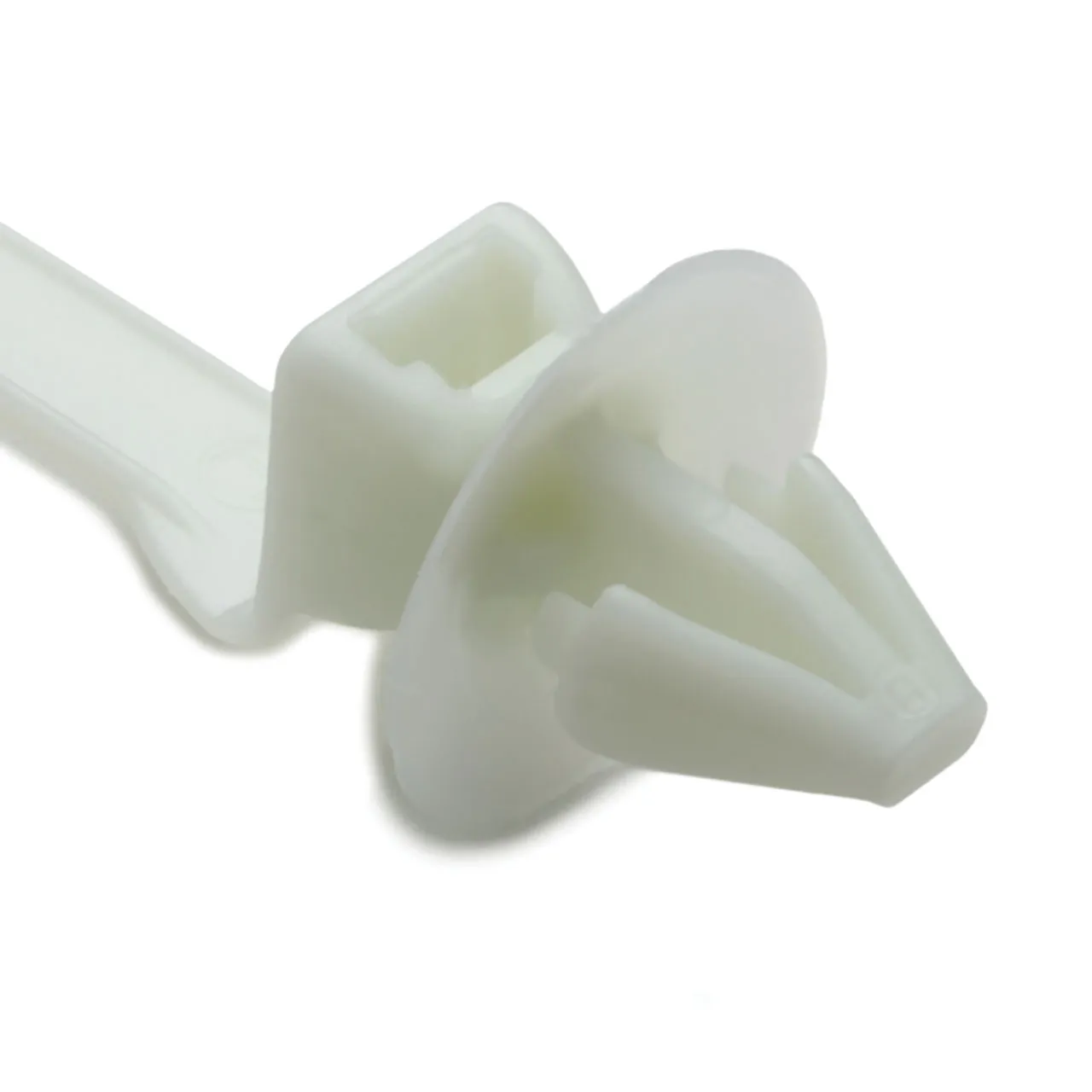

Cable Tie 1-Piece with Arrowhead Mount, 8.5"L, 50lb, Panel Thickness 0.07 - 0.12", PA66HIRHS, Natural, 500 per Package

Features

• An all-in-one bundling and fixing solution reduces costs. Disc provides secure insertion and minimizes access of dust, dirt and water.
• Product Type: Arrowhead Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Operating Temperature: -40°F to +230°F (-40°C to +110°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.97"
• Bundle Diameter Max. (Metric): 50.0 mm
• Bundle Diameter Min. (Imperial): 0.04"
• Bundle Diameter Min. (Metric): 1.0 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.63"
• Disc Diameter (Metric): 16.0 mm
• Fixation Method: Arrowhead
• Focused Markets and Industries: Automotive Industry
• Length L (Imperial): 8.5"
• Length L (Metric): 215.9 mm
• Mounting Hole Diameter D (Imperial): 0.24 - 0.27"
• Mounting Hole Diameter D (Metric): 6.1 - 6.9 mm
• Mounting Hole Diameter D Max. (Imperial): 0.27"
• Mounting Hole Diameter D Max. (Metric): 6.9 mm
• Mounting Hole Diameter D Min. (Imperial): 0.24"
• Mounting Hole Diameter D Min. (Metric): 6.1 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.07 - 0.12"
• Panel Thickness (Metric): 1.8 - 3.0 mm
• Panel Thickness Max. (Imperial): 0.12"
• Panel Thickness Max. (Metric): 3.0 mm
• Panel Thickness Min. (Imperial): 0.07"
• Panel Thickness Min. (Metric): 1.8 mm
• Recommended Application Tool: 110-05005; 110-70083; 110-70084; 110-80000; 110-80001; 110-80003
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Toothing (Serration): Outside Serrated
• Variant: Outside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.0277121063334
• Width W (Imperial): 0.20"
• Width W (Metric): 5.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306336051

Overview

The Domed Push Mount Tie provides a tight, rattle-free installation and acts as a seal to kieep out dust and debris. One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution.
