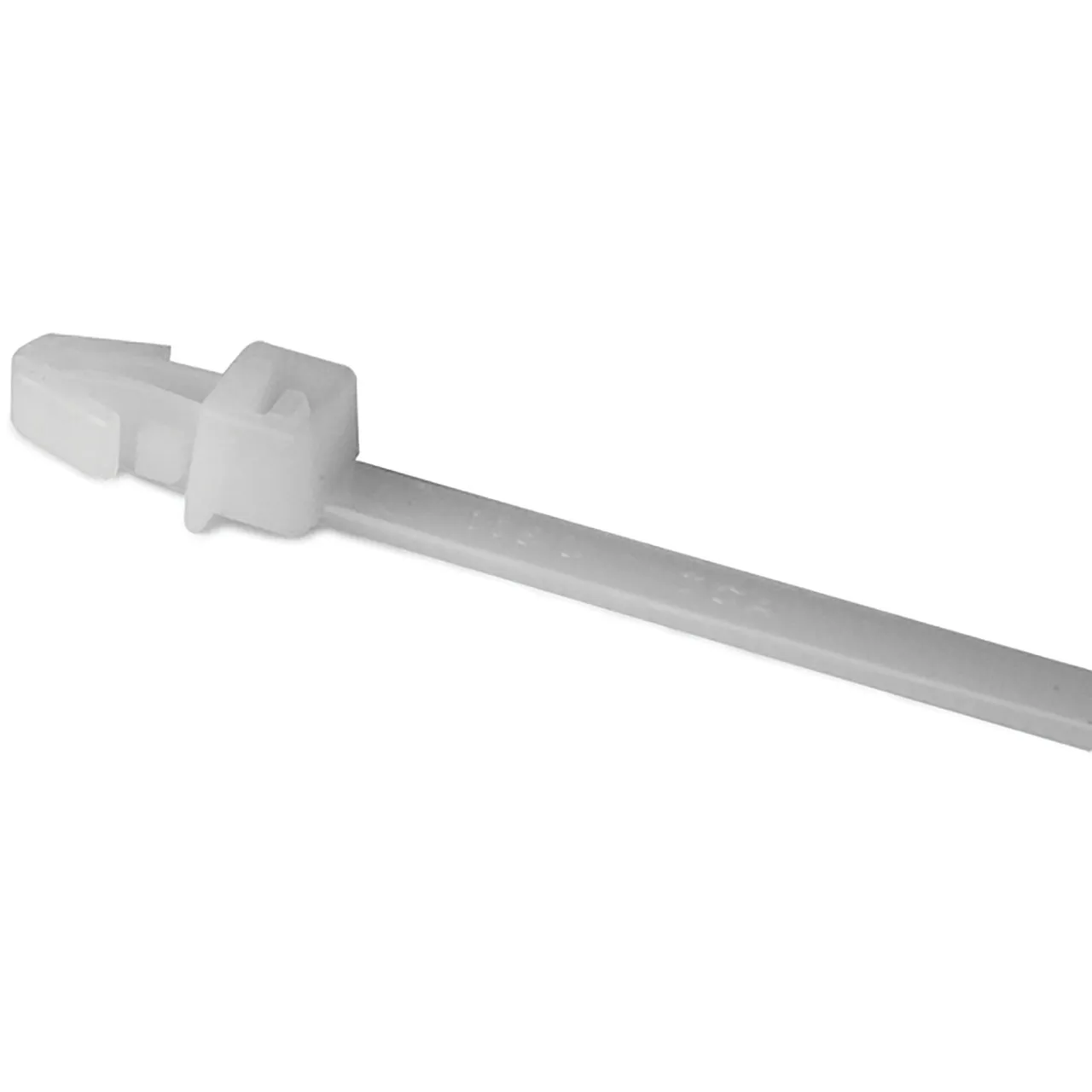

Cable Tie 1-Piece with Arrowhead Mount, 8.3"L, 50lb, 0.04 - 0.14" Panel Thickness, PA66, Natural, 100 per Package

Features

• All-in-one bundling and fastening solution reduces costs and assembly time. The arrowhead design of these ties offers a low insertion force and a high extraction force. High-spec materials and superior design deliver versatility, performance and value.
• Product Type: Arrowhead Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Natural (NA)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Bundle Diameter Max. (Imperial): 1.75"
• Bundle Diameter Max. (Metric): 44.5 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.6 mm
• Cable Tie Closure: plastic pawl
• Fixation Method: Arrowhead
• Focused Markets and Industries: Defense Industry; Automotive Industry
• Height H (Imperial): .30"
• Height H (Metric): 7.50 mm
• Length L (Imperial): 8.3"
• Length L (Metric): 210.82 mm
• Mounting Hole Diameter D (Imperial): 0.25 - 0.28"
• Mounting Hole Diameter D (Metric): 6.4 - 7.1 mm
• Mounting Hole Diameter D Max. (Imperial): 0.28"
• Mounting Hole Diameter D Max. (Metric): 7.1 mm
• Mounting Hole Diameter D Min. (Imperial): 0.25"
• Mounting Hole Diameter D Min. (Metric): 6.4 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.04 - 0.14"
• Panel Thickness (Metric): 1.0 - 3.56 mm
• Panel Thickness Max. (Imperial): 0.14"
• Panel Thickness Max. (Metric): 3.56 mm
• Panel Thickness Min. (Imperial): 0.04"
• Panel Thickness Min. (Metric): 1.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-07101; 110-70083
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.00330693393
• Width W (Imperial): 0.19"
• Width W (Metric): 4.7 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306090311

Overview

One-piece mounting ties offer a complete solution by both bundling cable and simultaneously providing a mounting solution. The arrowhead design of this push mount inserts easily and locks securely in place. HellermannTyton’s one-piece mounting ties combine high-specification materials with superior design to deliver dependable performance in a range of applications.
