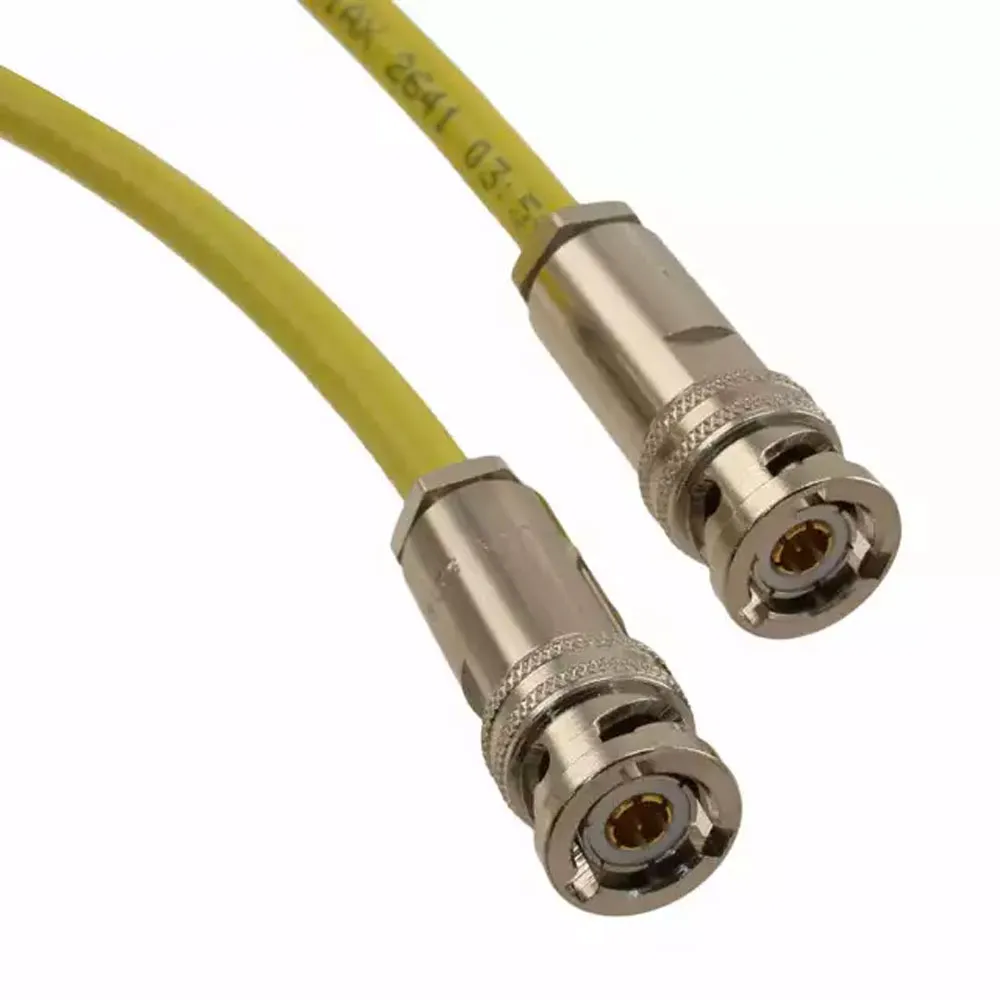

60" Triaxial 3 Lug Cable Assembly (Male)

• Mates to Model #5219
• 2 Shields provided for use in high interference areas
• Lengths other than those specified available upon request
• Operating Voltage: 500 VRMS/DC

• Connector - 1st End:
  • Triaxial Cable Male: BNC 3 Lug Bayonet Style
  • Finish: Body and Fittings - Tarnish Resistant
  • Intermediate and Center Contacts: Gold plated per requirements of MIL-C-39012
• Cable: Belden 9222 Triaxial conductors
  • Nominal Impedance: 50 Ohms
  • 20 AWG, Polyethylene dielectric
  • Shield: Tinned Copper
  • Jacket: PVC
  • Outer Diameter: 6.15mm (.242")
  • Color: Yellow
  • Marking: "POMONA 5223"
• Connector - 2nd End: Same as first
