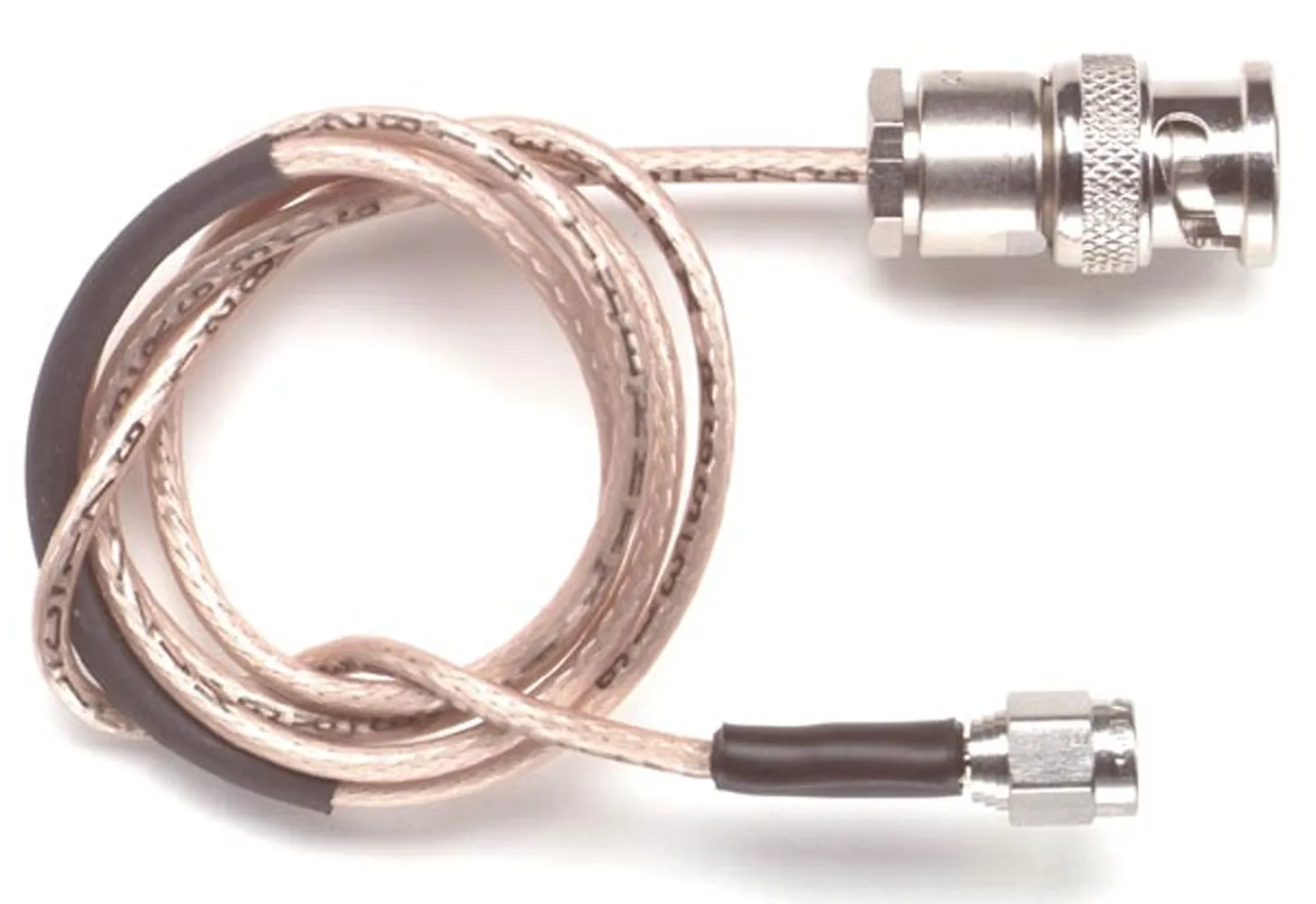

SMA Male-to-BNC Male Cable Assembly

• 24" Cable offers test versatility by including a BNC connector to a high performance SMA and RG316/U cable
• BNC Connectors feature tarnish resistant bodies and PTFE dielectrics for optimum performance
• Connector center contacts are gold plated for reliable electrical connection

• BNC: Body: Brass, Nickel Plated
  • Center Contacts: Brass, Gold Plated (Male)
  • Dielectric: PTFE
  • Impedance: 50 Ohms
• Cable: RG316/U: Single Shield With 26 AWG Center Cond. (7 x .0067) Silver
  • Coated Copper Covered Steel
  • Impedance: 50 Ohms (Nom.)
  • Capacitance: 29.0 pf/ft.
  • Loss (Max): 0.56 dB/ft. @ 3 GHz.
  • Jacket: FEP, Color: Tinted Brown
  • Outer Diameter: 0.098" (2.50 cm)
• SMA: Body/Fittings: Stainless Steel, Finish - Passivated Steel
  • Center Contact: Brass, Gold Plated
  • Impedance: 50 Ohms Nominal
