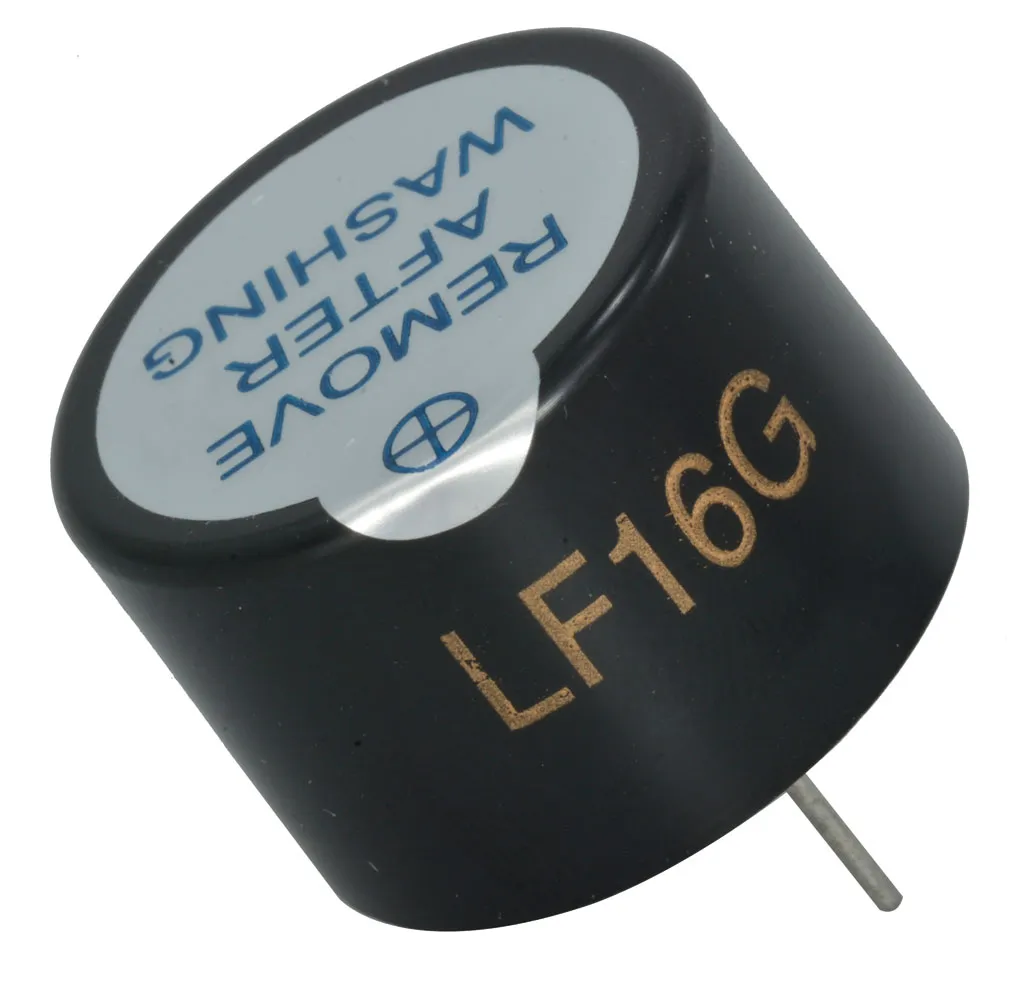

Piezo Buzzer 3-20VDC 2900Hz

Features

  • Operating Voltage: 12V @ 8mA
  • Single tone
  • 2-pin configuration
  • Voltage Range: 3-20V
  • Sound level: 85dB
  • Frequency: 2900Hz
  • Size: 16mm x 23.8mm

Dimensions & Appearance

Diameter:0.94 in.
Height:0.63 in.
Size (H" x Dia."):0.63 x 0.9
Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Voltage:12 V

Output

Output:85 dBA

Features

Tone Mode:Single
Voltage Range (Vp-p):3-20
Technology:Piezo
Frequency:2900 Hz
Termination Style:PC Pins
Frequency Range:2700 Hz to 3100 Hz
Current Rating:8 mA
,
