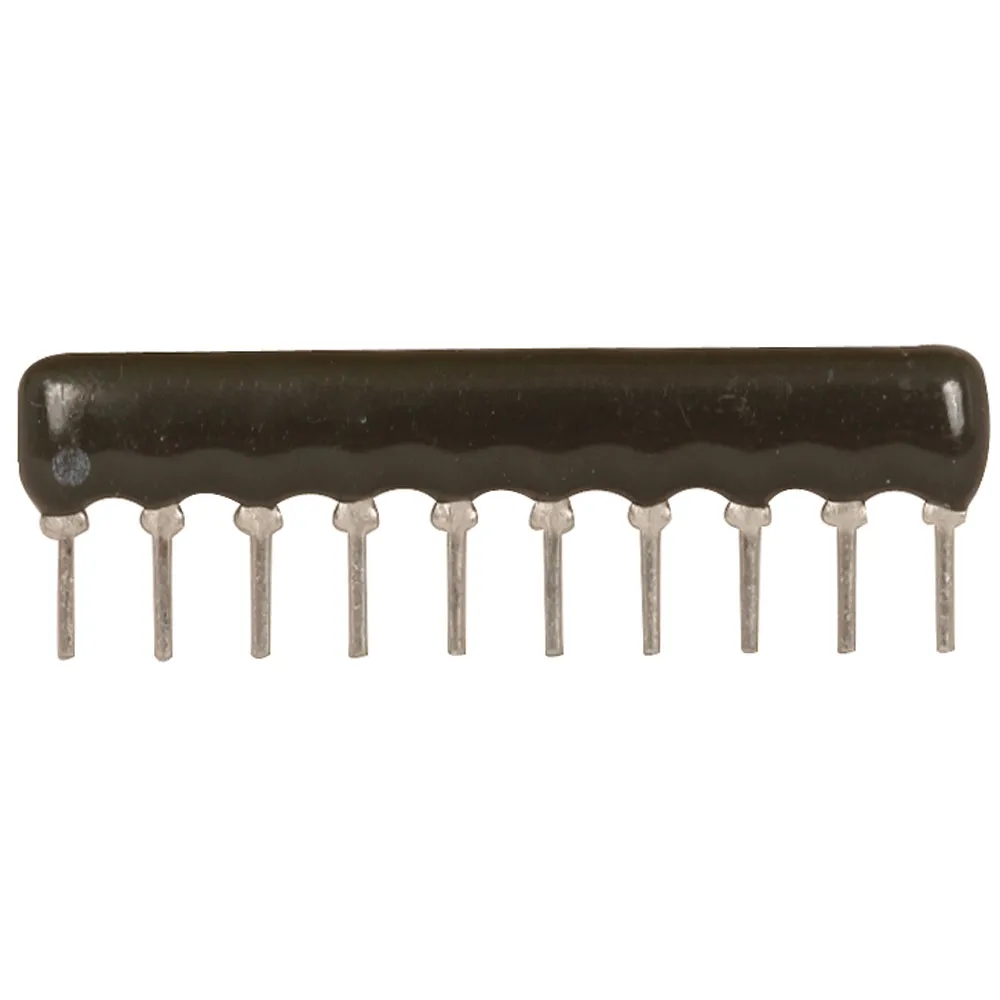

Bussed 9-Resistor Network Array 8200 Ohm 2% 200mW per Element SIP-10

Specifications

  • Circuit Type: Bussed
  • Resistance (Ohms): 8200 / 8.2K Ohm / 8k2 / 822
  • Tolerance: ±2%
  • Number of Resistors: 9
  • Resistor-Ratio-Drift: 50 ppm/°C
  • Number of Pins: 10
  • Power Per Element: 300 mW
  • Total Package Power: 1.25 W
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: 10-SIP

Product Identification

Family:4600X

Features

Circuit Designator:Bussed
Power Rating per Resistor:0.200 W
Tolerance:2%
Number of Resistors:9
Number of Terminals:10
Technology:Thick Film
Resistance:8.2 KOhm
Resistance (Ohm):8200
Power Rating:1.25 W
,
