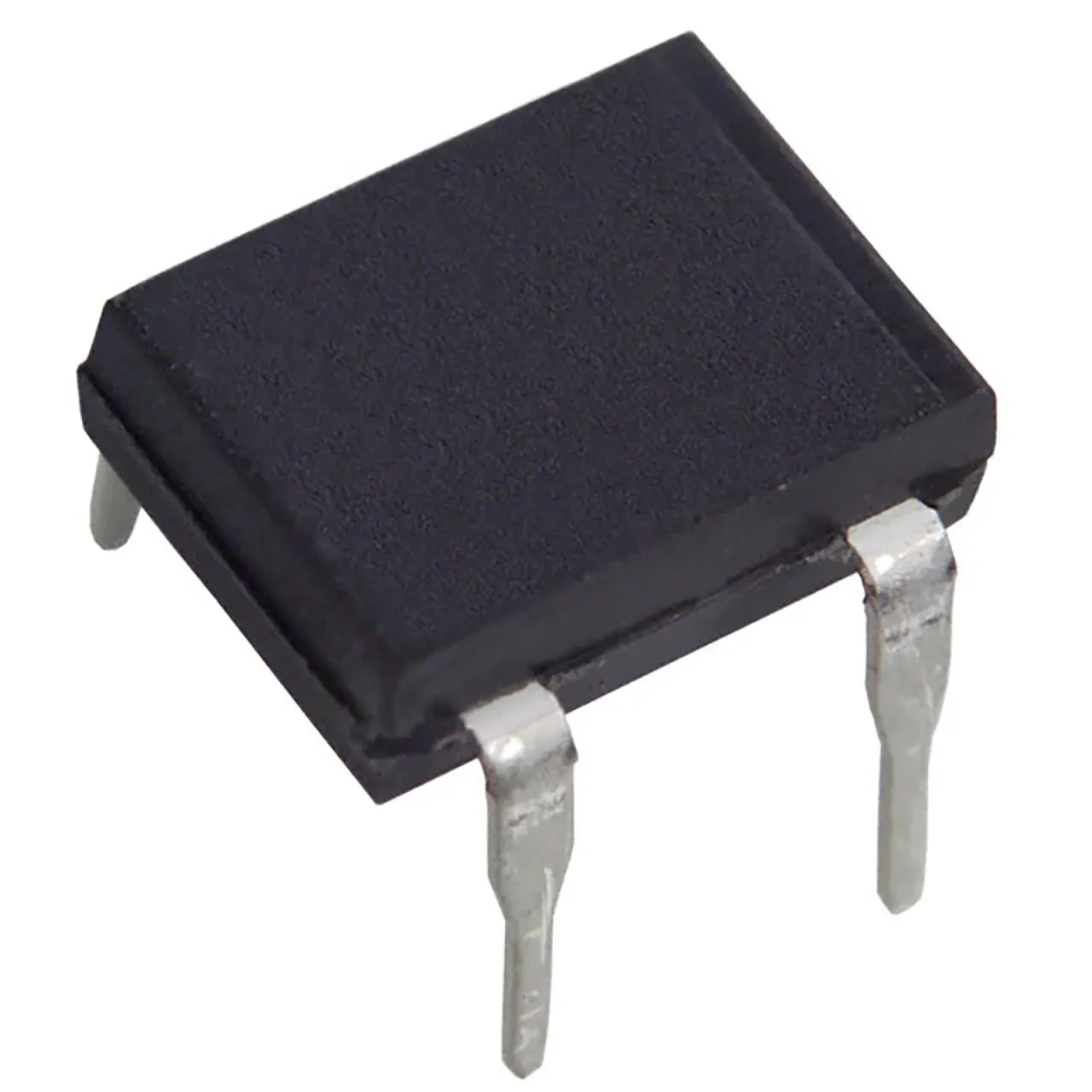

Bridge Rectifier Single Phase Standard 1 kV 1A Through Hole DFM

Specifications

  • Diode Type: Single Phase
  • Technology: Standard
  • Voltage - Peak Reverse (Max): 1 kV
  • Current - Average Rectified (Io): 1 A
  • Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 1 A
  • Current - Reverse Leakage @ Vr: 10 µA @ 1000 V
  • Operating Temperature: -65°C to 150°C (TJ)
  • Mounting Type: Through Hole
  • Package: 4-EDIP, DFM (0.3", 7.62 mm)
  • Base Number: DF10

Output

Average Rectified Output Current:1A

Features

Repetitive Peak Reverse Voltage:1000 V
,
