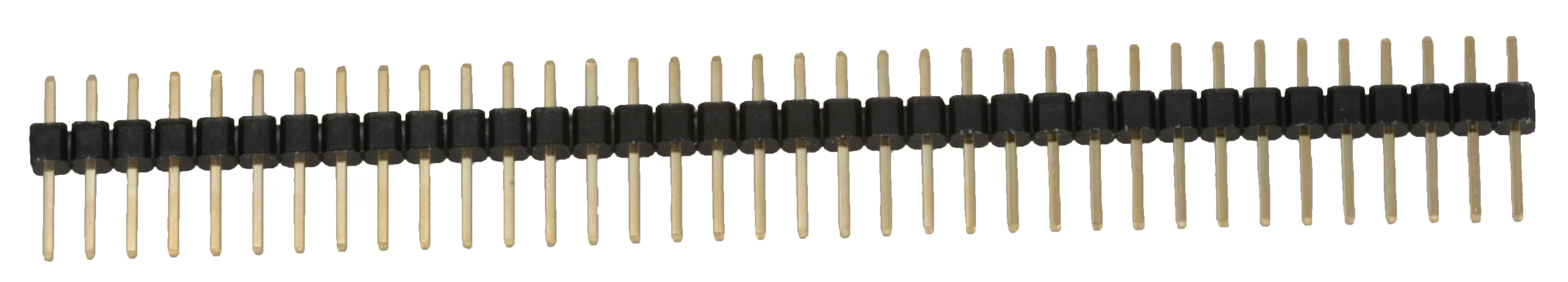

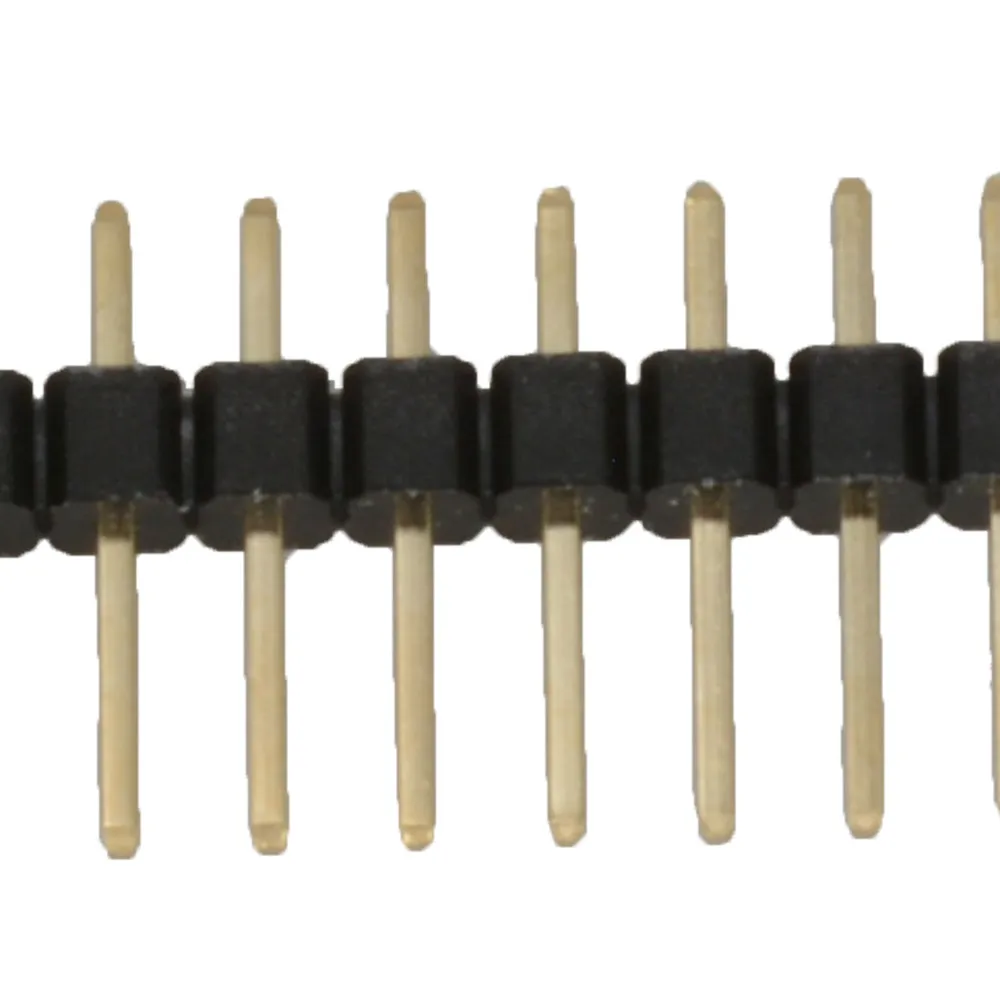

Breakaway Pin Header 36 Position Straight Single Row 2.54mm Pitch 6mm Pins

Specifications

  • 36 pin
  • Breakaway means the header can be separated between pins
  • 0.1" (2.54mm) pin spacing
  • Single row, vertical/straight
  • Gold flash over nickel
  • 3A max current rating
  • 0.235" post
  • 0.12" PC pin
  • 0.453" length

Dimensions & Appearance

Body Orientation:Straight

Features

Number of Rows:1
Board Mount Length:0.120 in.
Housing Color:Black
Contact Material:Brass
Contact Length:0.23 in.
Pitch:0.1 in., 2.54 mm
Contact Plating:Gold Over Nickel
Number of Contacts:36
Housing Material:Polybutylene Terephthalate
Gender:Male
,
