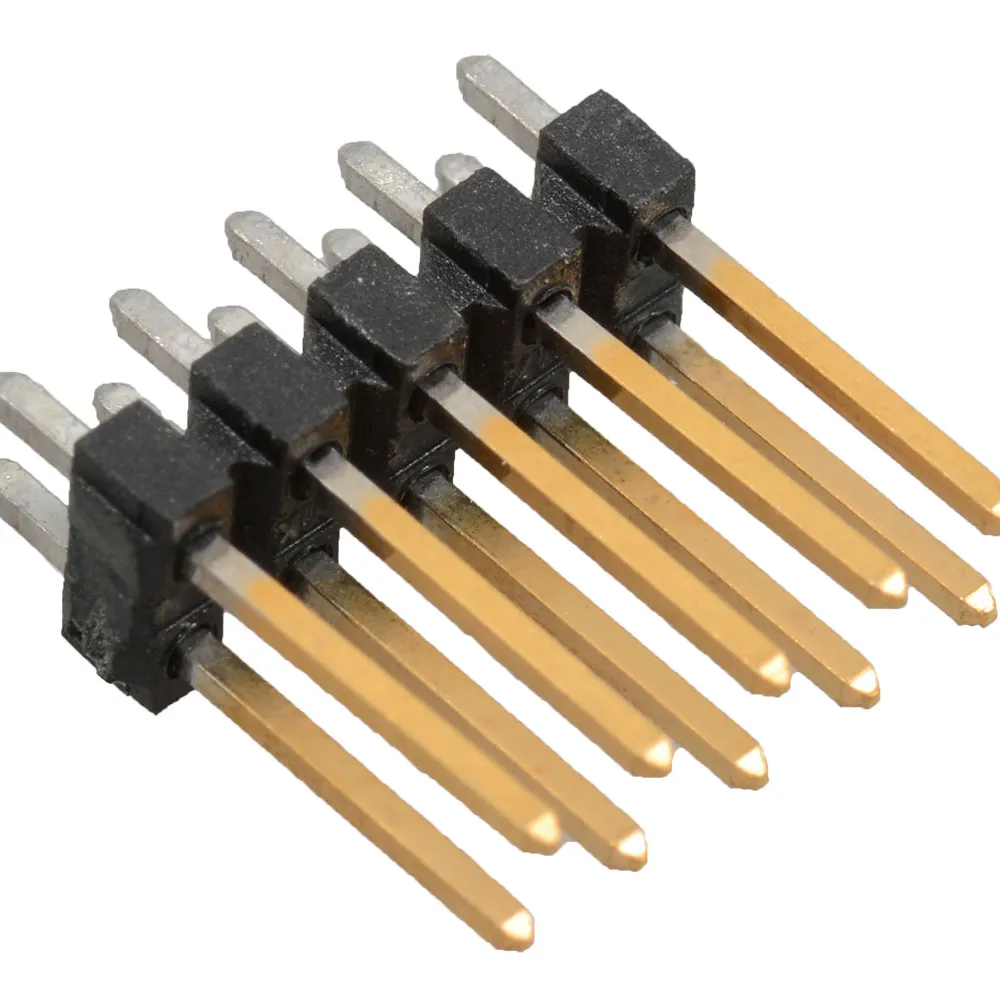

Breakaway Header Dual Row Vertical 10 Position 2.54mm Pitch

Specifications

  • Breakaway
  • Positions: 10 (2x5)
  • Dual row
  • Durability: 50 mating cycles
  • Flammability: UL 94V-0
  • Metal Material: Copper alloy
  • Material Plating Mating: Gold
  • Material Plating Termination: Tin
  • Material, Body: High-temp thermoplastic
  • Vertical orientation
  • Pitch: 2.54 mm (0.1")
  • PC tail length: 2.79 mm
  • Current Rating: 3 A (per contact)
  • Voltage Rating: 250 V (max.)

,
