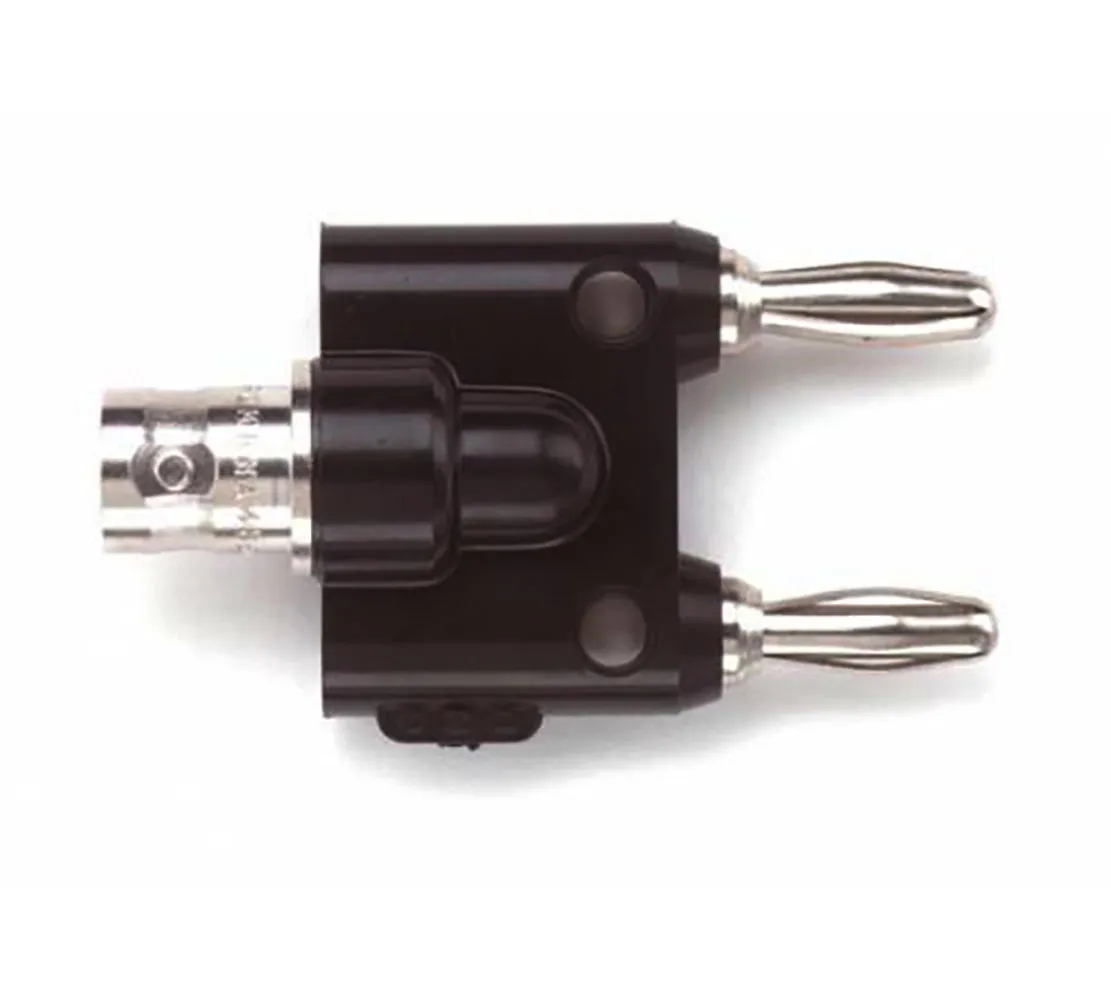

BNC Female to Double Stacking Banana Plugs Black

Features

  • Adapter converts Double Banana Jack Test Instruments to BNC Coaxial configuration for added shielding protection.
  • For test versatility, banana plugs can be vertically and horizontally stacked to the adapter.
  • Banana Plug features Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life.
  • The BNC center contact is Gold Plated, Beryllium Copper for low contact resistance
  • The BNC shell is plated for tarnish resistance
  • Operating Voltage: Hand-held testing: 30VAC/60VDC Max.

Product Identification

Additional Feature:Adapter
Product Type:BNC Jack to Double Banana Plug

Dimensions & Appearance

Body Material:ABS
Color:Black
Mounting Type:Free Hanging
Length:2.050 in.

Features

Insulation Material:ABS
Contact Material:Brass
Insulation:Yes
Contact Plating:Nickel
Gender:Female to Male
Voltage Rating:30 VAC, 60 VDC
Wire Gauge (AWG):N/A
Termination:Solderless
Current Rating:N/A
,
