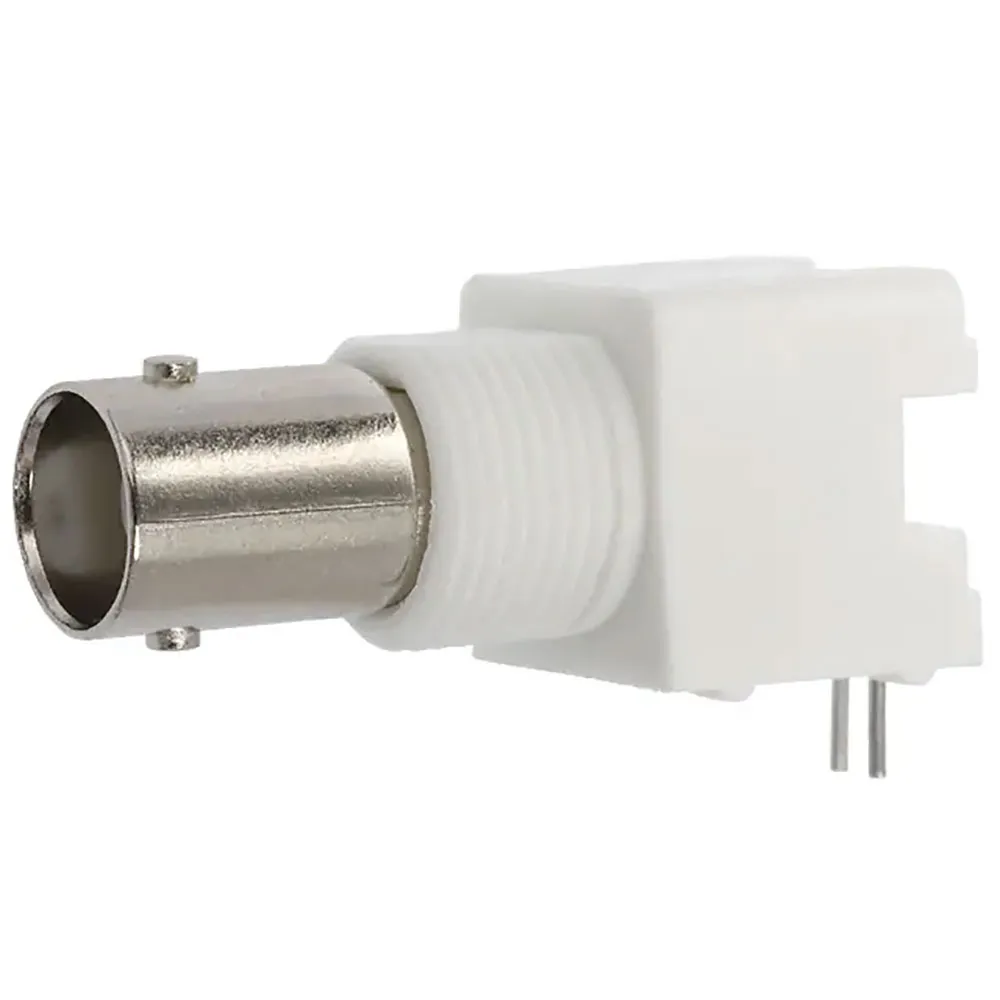

BNC Connector Jack Female Socket 50 Ohm Panel Mount THM Right Angle

Specifications

  • Connector Style: BNC
  • Connector Type: Jack, Female Socket
  • Contact Termination: Solder
  • Shield Termination: Solder
  • Impedance: 50 Ohm
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Mounting Feature: Bulkhead - Front Side Nut
  • Fastening Type: Bayonet Lock
  • Frequency - Max: 4 GHz
  • Number of Ports: 1
  • Features: Isolated
  • Housing Color: Natural, Silver
  • Includes: 3 pcs - 1 Connector, 1 Lock washer, 1 Nut
  • Body Material: Zinc
  • Body Finish: Nickel
  • Center Contact Material: Phosphor Bronze
  • Center Contact Plating: Tin
  • Dielectric Material: Polymethylpentene (PMP)
  • Operating Temperature: -55°C to 85°C
  • Voltage Rating: 500V
  • Mating Cycles: 500

Product Identification

Family:BNC
Manufacturer Series:ValuePro

Dimensions & Appearance

Body Orientation:Right Angle
Body Material:Zinc
Body Plating:Nickel

Features

Operating Frequency:0Hz to 4GHz
Impedance:50 Ohm
Termination Method:Solder
Gender:Female
Contact Material:Phosphor Bronze
Contact Plating:Tin
,
