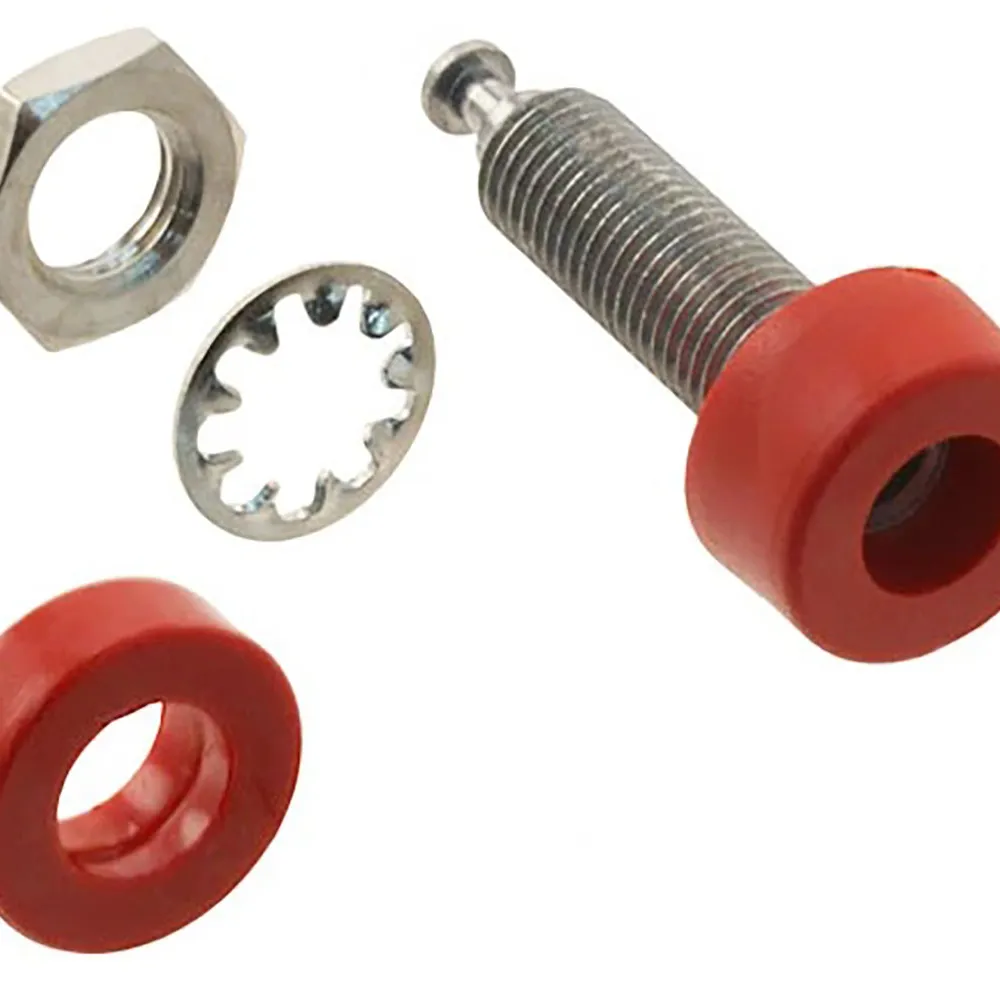

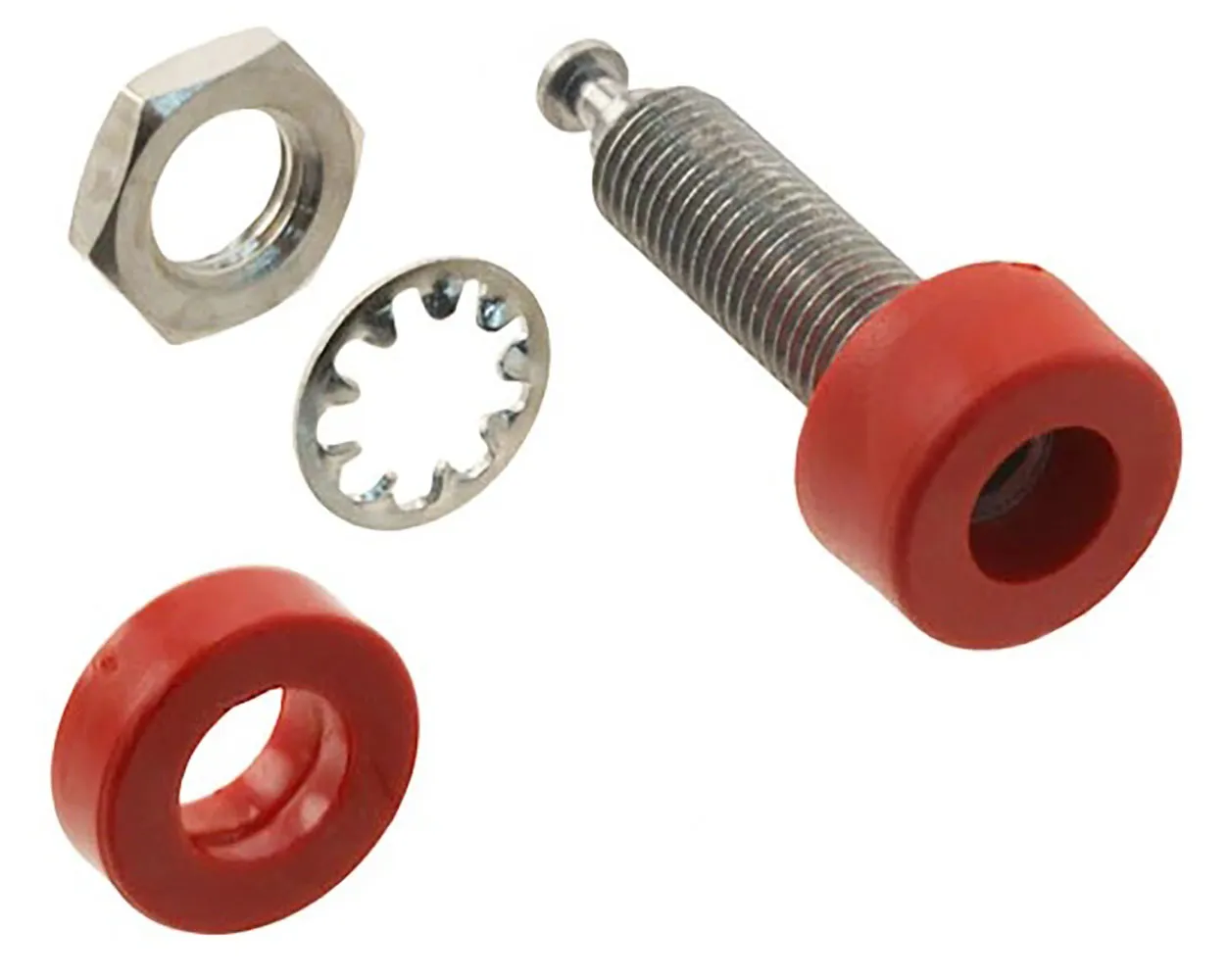

10pcs Black Panel Mount Banana Jack Red Turret Type

Specifications

  • Banana Jacks mount into panels ranging in thickness from .063" (1.6mm) to 0.375"
  • Operating voltage: 30VAC/60VDC max
  • Current: 15A
  • Bright tin plating
  • ¼ internal locking washer: steel, nickel plated
  • ¼-32 hex nut: brass, nickel plated
  • Mounting type: Panel mount
  • Termination: Turret
  • Insulating: Mating end is insulated
  • Sold as a pack of 10

Product Identification

Additional Feature:Accepts 0.166" (4.2mm) Plug, Bag of 10
Product Type:Banana Jack

Dimensions & Appearance

Body Material:Polycarbonate (PC)
Mounting Type:Panel Mount
Color:Red
Length:1.220 in.

Features

Contact Material:Brass
Insulation:Mating End
Insulation Material:Polycarbonate (PC)
Gender:Female
Contact Plating:Nickel
Wire Gauge (AWG):N/A
Termination:Turret
Voltage Rating:2500 Vrms
Current Rating:15 A
,
