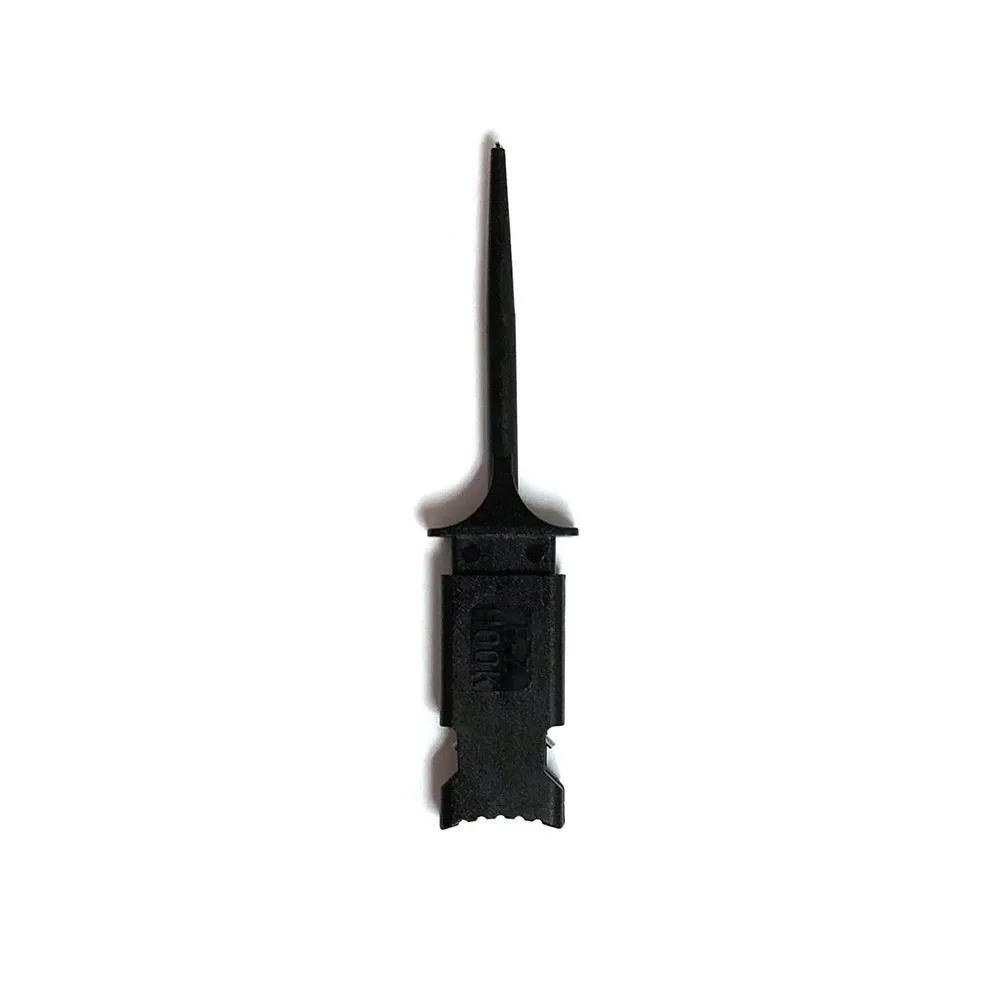

Black Micro-Hook Double Gripper with 0.025" Square Pins

The XKM Micro-Hook double hook (double gripper) is designed for hard to make test connections of varying sizes and shapes. The double hooks assure a solid contact with easy-to-use spring-loaded design. The narrow nose configuration is ideal for side-by-side stacking of the test connectors. Two 0.025" square pins exit the plunger on either side permitting connection to 0.025" square or 0.030" diameter sockets.

Features

• Color: Black
• The narrow nose configuration is ideal for side-by-side stacking of the test connectors.
• Tip design that permits hooks up vertically or horizontally.
• Hook fits over components up to a max diameter of 0.050 in (1.27 mm).
• (2) 0.025 in (0.64 mm) squared pins for easy connection to 0.025 in (0.64 mm) square sockets.

Specifications

• Hook Style: Double Hook
• Part Length: 2.25 in (57.15 mm)
• Material (Housing): Nylon
• Materia
