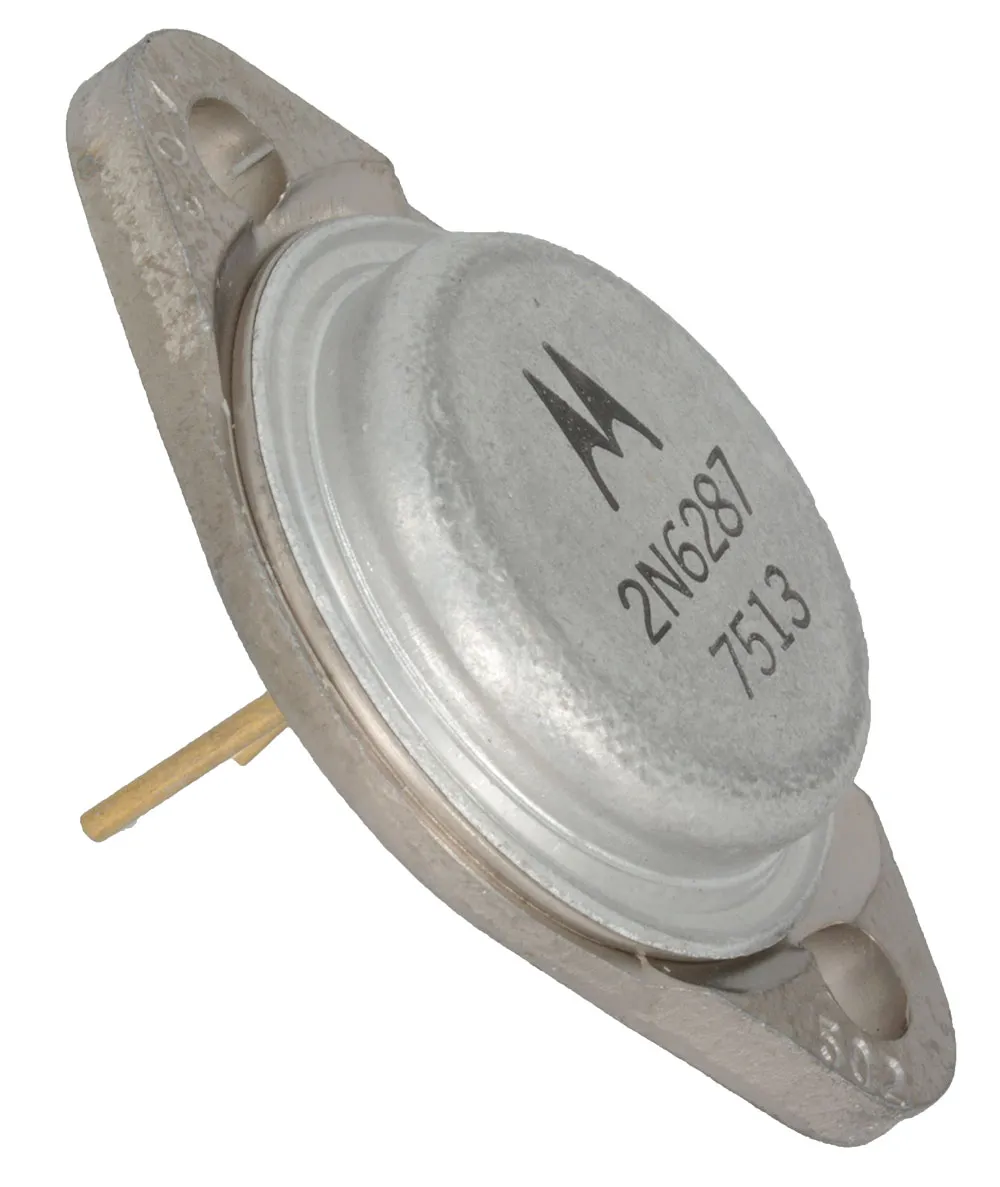

Bipolar Darlington Transistor PNP BJT 100V 20A 160W TO-3

Specifications:

  • Transistor Type: PNP - Darlington
  • Current - Collector (Ic) (Max): 20A
  • Voltage - Collector Emitter Breakdown (Max): 100V
  • Vce Saturation (Max) @ Ib, Ic: 3V @ 200mA, 20A
  • Current - Collector Cutoff (Max): 1mA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 750 @ 10A, 3V
  • Power - Max: 160W
  • Operating Temperature: 200°C (TJ)
  • Mounting Type: Chassis Mount
  • Package / Case: TO-204AA, TO-3

Product Identification

Product Type:Bipolar Power
Manufacturer Series:2N6287

Dimensions & Appearance

Mounting:Through Hole
Width:25.40 mm
Height:6.35 mm
Length:38.90 mm

Operating conditions

Maximum Operating Temperature:200°C
Minimum Operating Temperature:-65°C

Packaging

Packaging:Bulk
Package:TO-3

Output

Output Power:160W

Features

Number of Elements per Chip:1
Pins:3
Maximum Operating Frequency:4Mhz
Maximum Emitter Base Voltage:5V
Transistor Polarity:PNP
Maximum Collector Base Voltage:100 V
Maximum Collector Emitter Voltage:100 V
Maximum Collector Current:20A
Maximum Base Emitter Saturation Voltage:4.0V@200ma
Power Dissipation:160W
Minimum DC Current Gain:750 @ 10A @ 3V
Maximum Collector Emitter Saturation Voltage:2.0V
Configuration:Single
,
