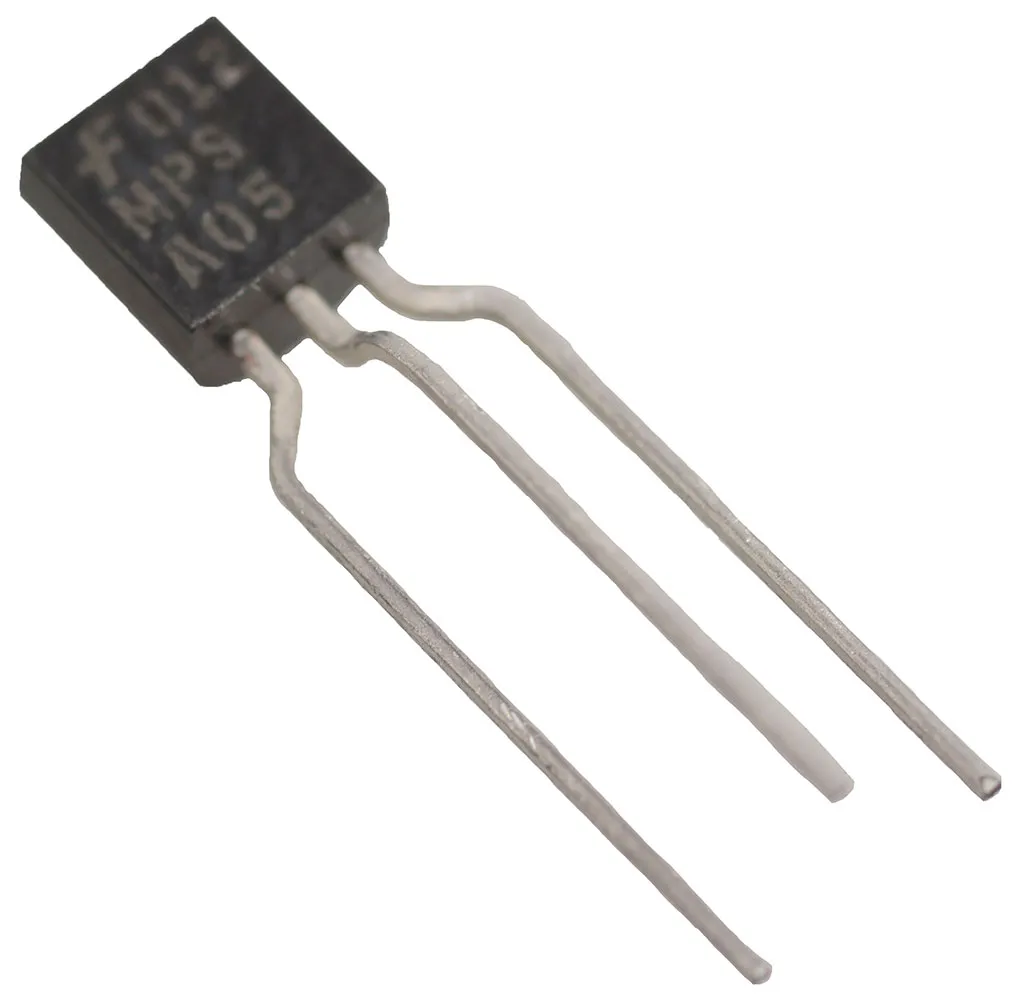

Bipolar (BJT) Transistor NPN 60V 500mA 100MHz 625mW Through Hole TO-92-3 Formed Leads | Jameco.com

Bipolar (BJT) Transistor NPN 60V 500mA 100MHz 625mW Through Hole TO-92-3 Formed Leads

Jameco Part #:

Manufacturer #:

Product Price:

$0.090

In Stock: 0

Quantity	Unit Price	You Save	Discount
10+	$0.090	-	-
100+	$0.060	0.03	34.44%
500+	$0.060	0.03	36.67%
1000+	$0.060	0.03	38.89%

Bipolar (BJT) Transistor NPN 60V 500mA 100MHz 625mW Through Hole TO-92-3 Formed Leads

Product Identification

Product Type:Bipolar Amplifier

Manufacturer Series:MPSA

Mounting:Through Hole

Height:5.20 mm

Length:5.33 mm

Maximum Operating Temperature:150°C

Minimum Operating Temperature:-55°C

Package:TO-92-3 (formed leads)

Output Power:625mW

Number of Elements per Chip:1

Pins:3

Transistor Polarity:NPN

Maximum Emitter Base Voltage:4V

Maximum Collector Current:0.5A

Maximum Collector Base Voltage:60 V

Maximum Collector Emitter Saturation Voltage:0.25V @ 100mA @ 10mA

Maximum Collector Emitter Voltage:60 V

Maximum Operating Frequency:100Mhz

Maximum Base Emitter Saturation Voltage:1.2V @ 100mA @ 1V

Minimum DC Current Gain:100 @ 100mA @ 1V

Configuration:Single

Power Dissipation:625mW
