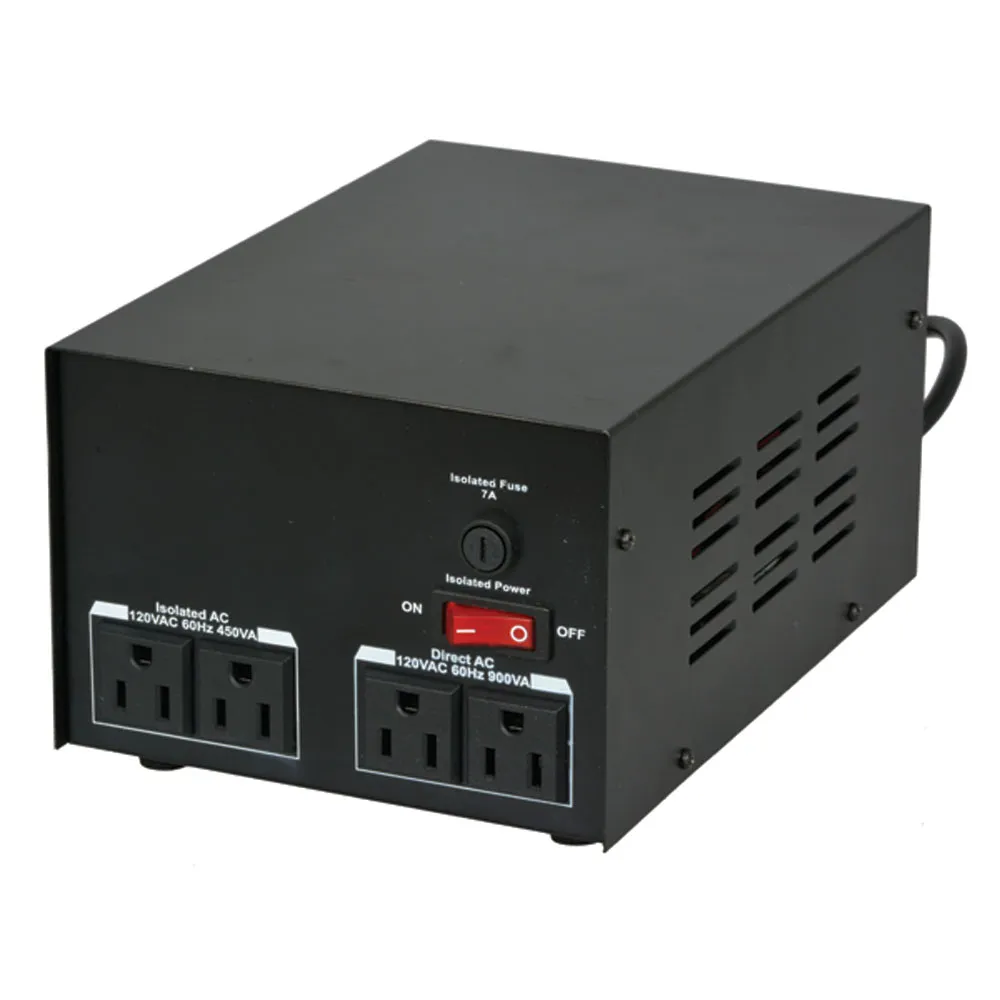

Benchtop Transformer Isolation

Specifications

  • Product type: Power transformer
  • Primary side voltage: 110 VAC
  • Primary side current: 14 Amps
  • Primary side frequency: 50 to 60 Hz
  • Secondary side voltage: 110 VAC
  • Secondary side current: 7 Amps
  • Size: 8.86"L x 6.10"W x 4.33"H

Primary

  • Direct fuse: 110 VAC, 14A
  • Direct AC #1: 110 VAC, 60 Hz, 900 VA
  • Direct AC #2: 110 VAC. 60 Hz, 900 VA
  • Input: 110 VAC, 60 Hz, 1800 VA

Secondary

  • Isolated fuse: 110 VAC, 7A
  • Isolated AC #1: 110 VAC, 60 Hz, 450VA
  • Isolated AC #2: 110 VAC, 60 Hz, 450VA

Product Identification

Product Type:Power Transformer

Dimensions & Appearance

Mounting Style:Bench Top
Color:Black
Height:4.33 in.
Width:6.10 in.
Length:8.86 in.

Output

Number of Outputs:4

Features

Primary Side Connection:NEMA 5-15P
AC Cord Length:5.5 ft.
Secondary Side Connection:NEMA 5-15R
Primary Frequency:50 to 60 Hz
Primary Side Voltage:110 VAC
Primary Side Current:14 A
AC Power Cord:Included
Current Rating:7 A
Secondary Side Voltage:110 VAC
Power Rating:450 VA
,
