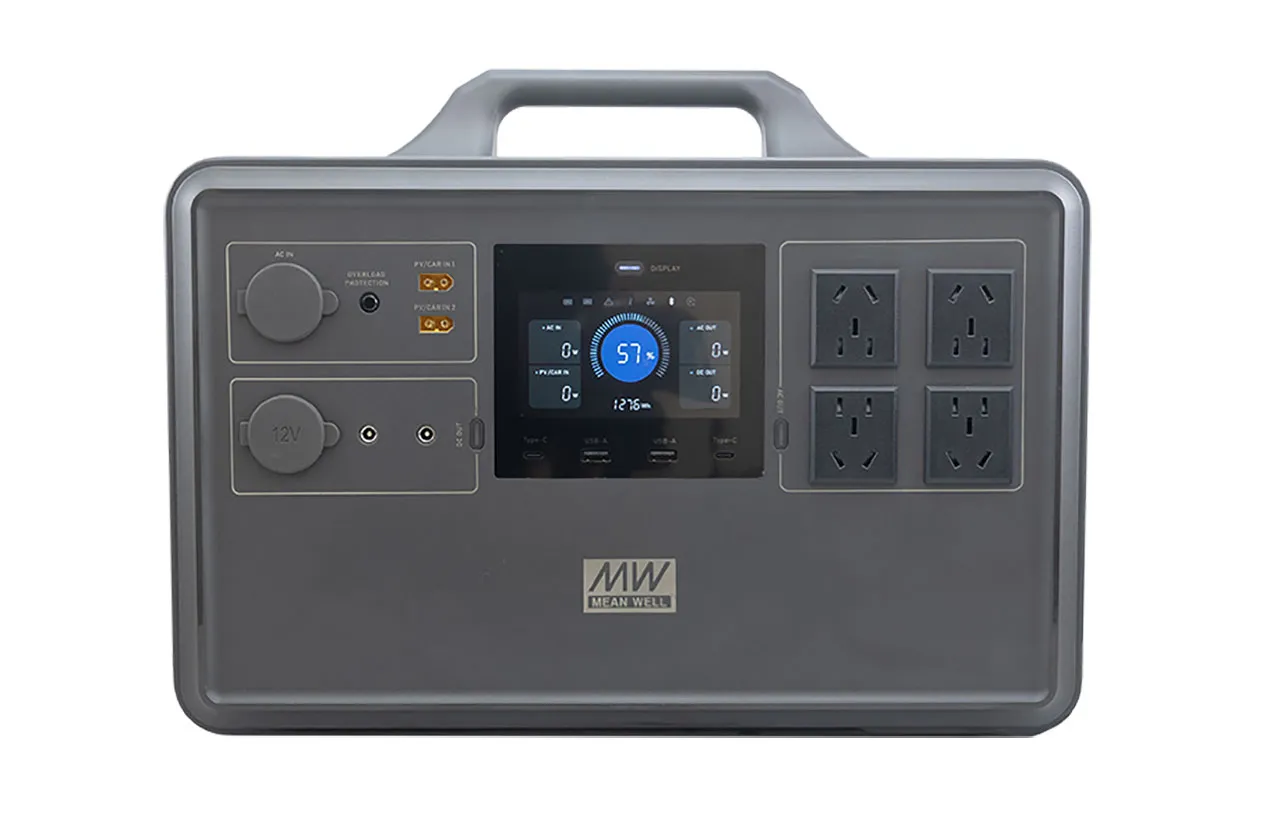

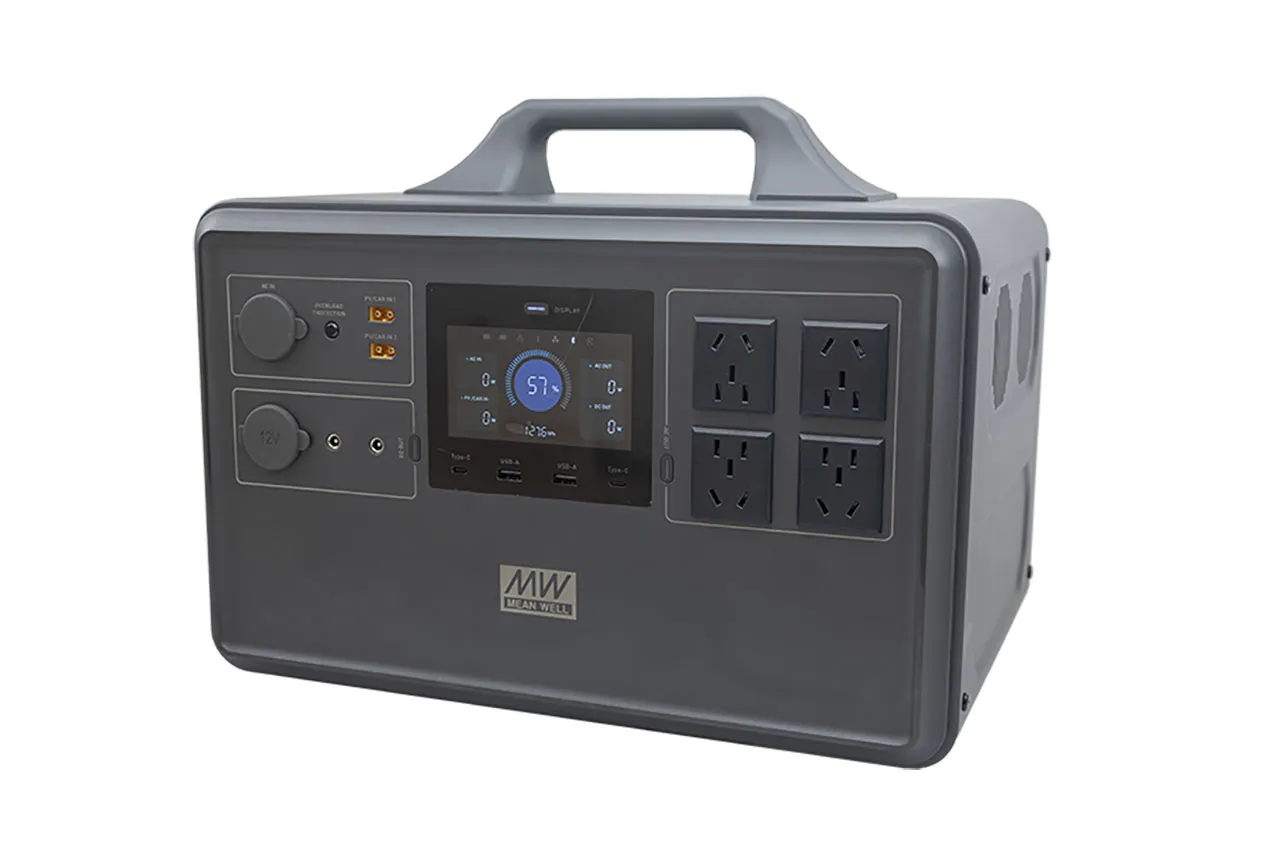

BAT/PWR SPLY/INVERTER,MPPT,2400W,LiFePO4,USB/DC/AC,CN PLUG,P
Product Identification
Product Type:Portable Energy Storage Power Inverter & MPPT Charge Controller
Manufacturer Series:ES-S2200
Compliance
Agency Approvals:CE, EN, CCC
Dimensions & Appearance
Color:Black
Width:11.73 in.
Height:12.20 in.
Length:16.10 in.
Mounting:Benchtop
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C
Input
Input Frequency:50 Hz
Input Voltage Range:200 VAC to 240 VAC, 12 VDC to 59 VDC
Input Voltage:220 VAC, 12 VDC, 24 VDC
Maximum Input Current:15 A
Output
Number of Outputs:4
Output Connector Type:China Receptacle x2, USB-A, USB-C, DC5525/Vehicle
Additional Output Voltages (VDC):5, 9, 12, 15, 20
Output Voltage:230 VAC
Output Current:10 A
Features
AC Power Cord:NOT INCLUDED
Efficiency:N/A
Power Rating:2400 W
