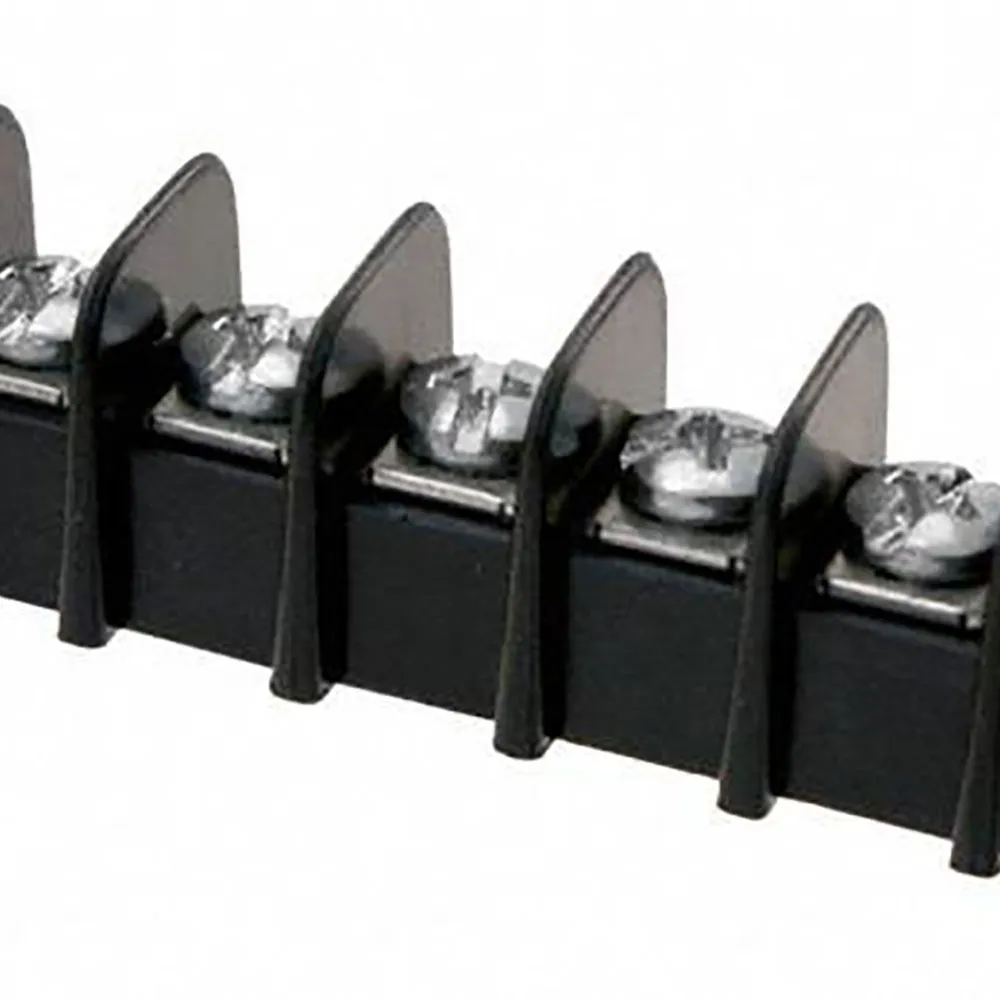

Barrier Terminal Block 5 Position Closed Bottom 9.53mm Pitch

Specifications

  • Number of Positions: 5 Positions
  • Pitch: 0.375" (9.53 mm)
  • Current Rating: 10 A
  • Voltage Rating: 250 V
  • Wire Gauge Max: 14-22 AWG
  • Mounting Style: Through Hole
  • Color: Black
  • Contact plating: Tin
  • Length: 2.71"
  • Width: 0.65"
  • Height: 0.787"
  • Termination Style: Screw
  • M3.5 screw
  • Insulation: Thermoplastic
  • Flammability Rating: UL 94 V-0

Product Identification

Manufacturer Series:HI-200
Product Type:Single Row Barrier Strip

Dimensions & Appearance

Body Orientation:Straight
Mounting:Chassis, Panel
Depth:16.5 mm
Length:68.6 mm

Operating conditions

Minimum Operating Temperature:-55°C
Maximum Operating Temperature:95°C

Features

Number of Rows:1
Bottom Termination:Closed Bottom w/ Flange
Housing Color:Black
Number of Positions:5
Top Termination:Screw, M3.5
Pitch:0.375 in., 9.53 mm
Housing Material:Polyamide
Contact Plating:Tin
Contact Material:Steel
Wire Gauge (AWG):14-22
Voltage Rating:250 VAC
Current Rating:10 A
,
