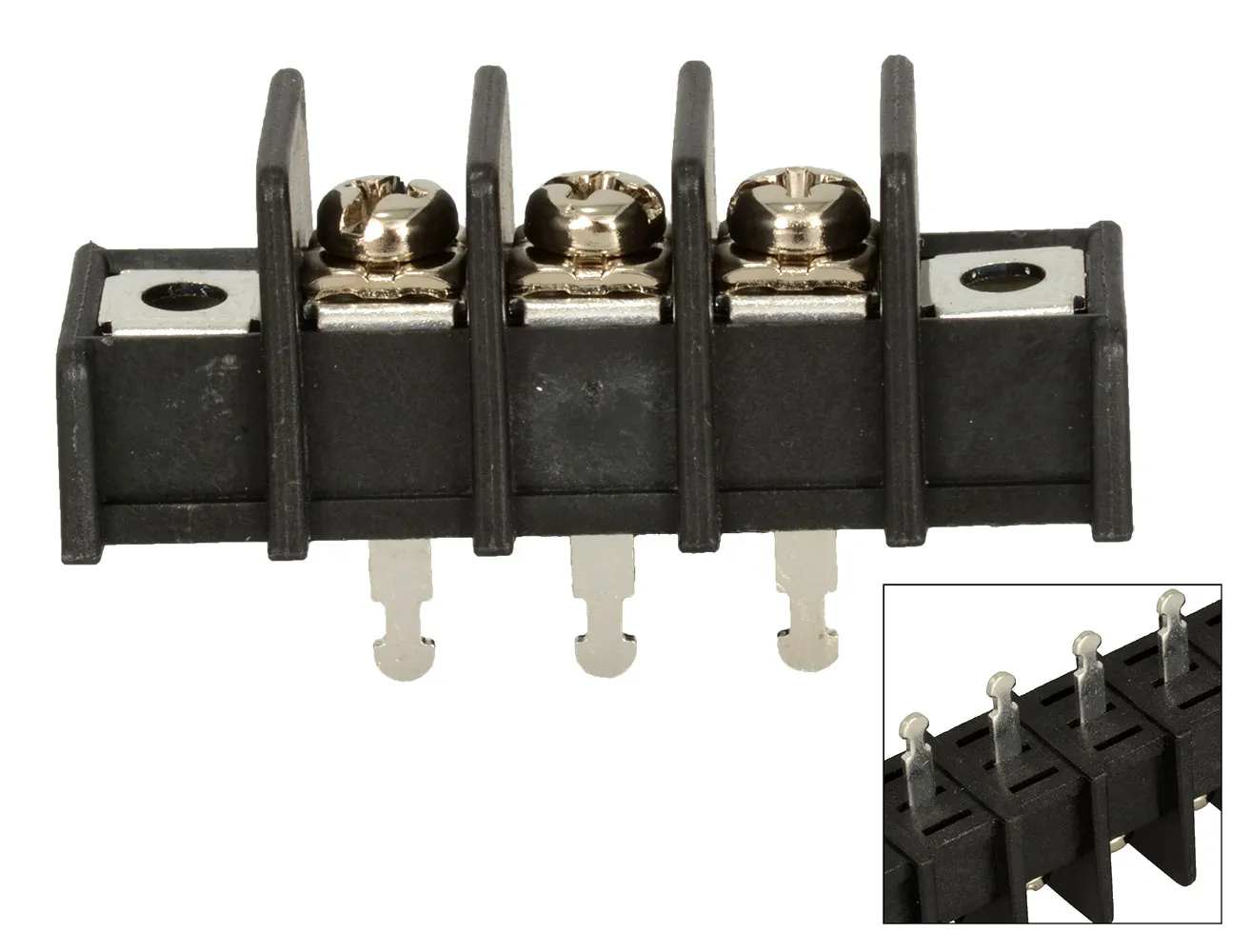

Barrier Terminal Block 3 Position Single Row Wire Solder Turret 0.375" Pitch
Specifications
- Number of Positions: 3 Positions
- Pitch: 0.375" (9.53 mm)
- Current Rating: 10 A
- Voltage Rating: 250 V
- Wire Gauge Max: 14-22 AWG
- Mounting Style: Through Hole
- Color: Black
- Contact plating: Tin
- Length: 1.96"
- Width: 0.65"
- Height: 0.787"
- Termination Style: Screw
- M3.5 screw
- Insulation: Thermoplastic
- Flammability Rating: UL 94 V-0
