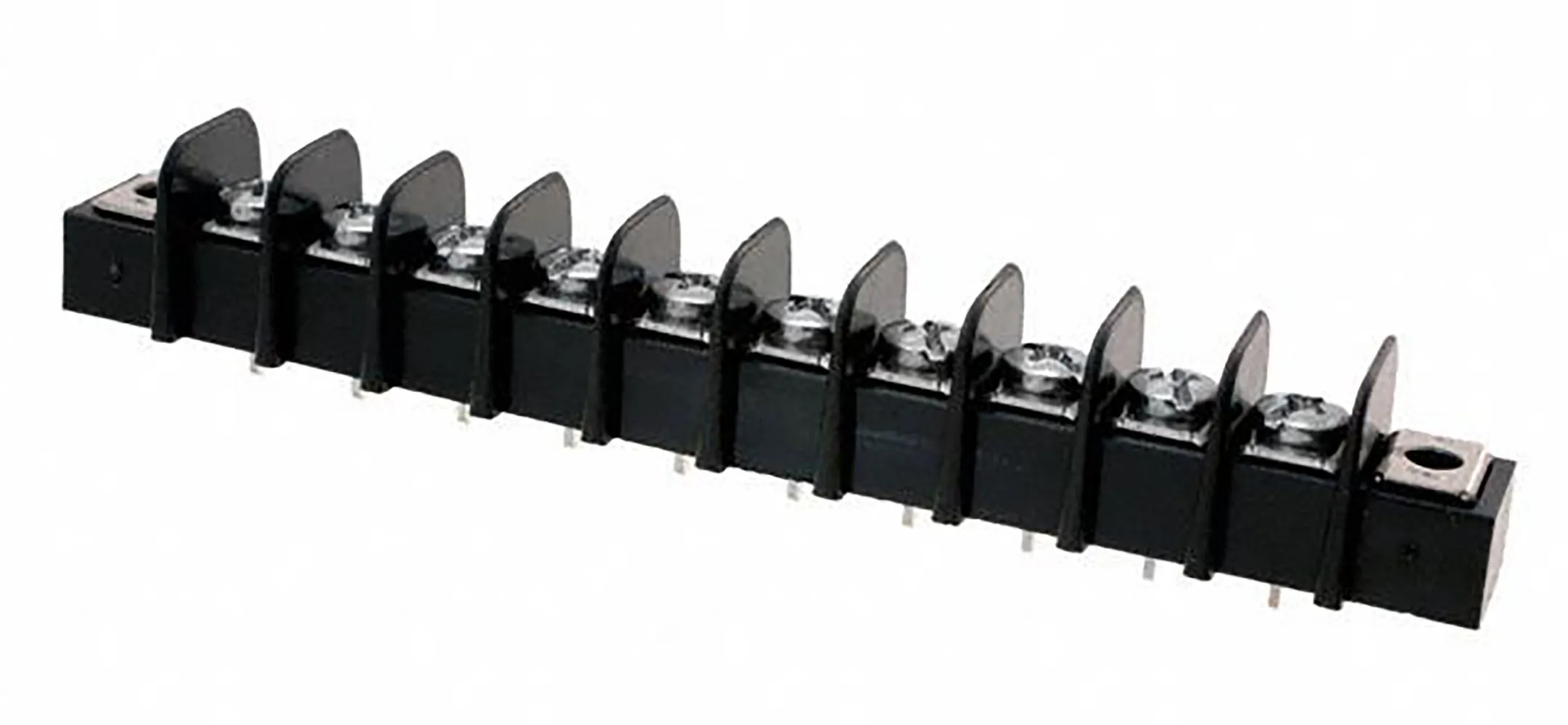

Barrier Terminal Block 10 Position PC Pin Bottom 9.53mm Pitch with Flange

Specifications

  • Number of Positions: 10 Positions
  • Pitch: 0.375" (9.53 mm)
  • Current Rating: 10 A
  • Voltage Rating: 250 V
  • Wire Gauge Max: 14-22 AWG
  • Mounting Style: PC Mount
  • Color: Black
  • Contact plating: Tin
  • Length: 4.58"
  • Width: 0.65"
  • Height: 0.787"
  • Termination Style: Screw
  • M3.5 screw
  • Insulation: Thermoplastic
  • Flammability Rating: UL 94 V-0

Product Identification

Product Type:Single Row Barrier Strip
Manufacturer Series:HI-201

Dimensions & Appearance

Depth:18 mm
Length:116.1 mm
Mounting:Through Hole
Body Orientation:Straight

Operating conditions

Minimum Operating Temperature:-55°C
Maximum Operating Temperature:95°C

Features

Number of Rows:1
Housing Color:Black
Top Termination:Screw, M3.5
Number of Positions:10
Bottom Termination:PC Pin w/ Flange
Pitch:0.375 in., 9.53 mm
Housing Material:Polyamide
Contact Plating:Tin
Contact Material:Steel
Wire Gauge (AWG):14-22
Voltage Rating:250 VAC
Current Rating:10 A
,
