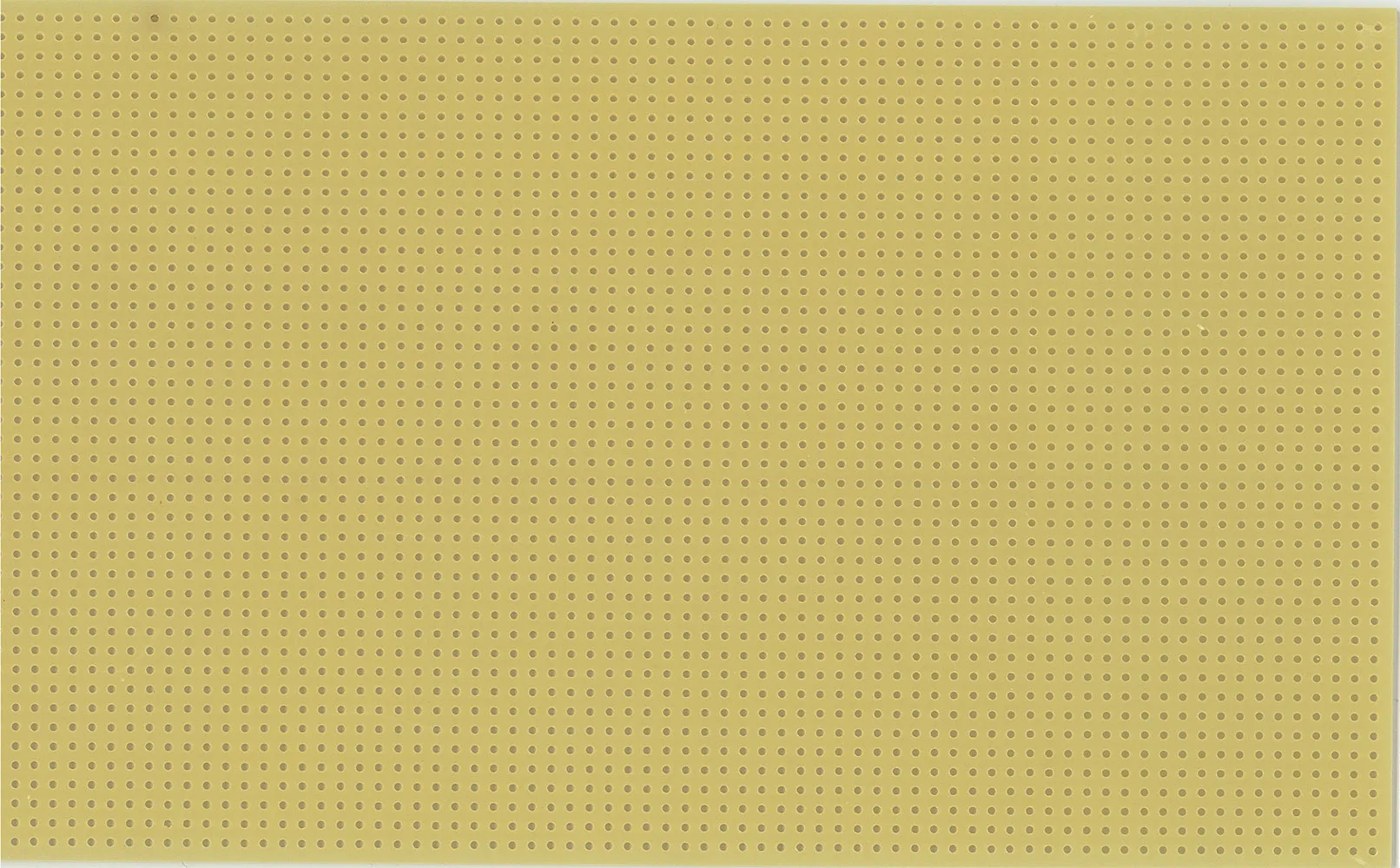

Vectorboard® General Purpose Bare Prototyping Board
General Purpose Prototyping Boards Select the prototype board that fits your needs from our comprehensive product listing. Prototyping boards with punched holes are convenient, economical tools for assembling circuit components and trying cost-effective alternatives to custom designs.Features:
- 3168 holes (72 x 44)
- 0.062" board thickness
- 0.1" hole spacing
- 0.08" pad size
- PCB material epoxy glass
- Size: 4.50"W x 8.50"L
- Fits enclosure(s): P/N 18877
- Circuit pattern: holes only
- Hole pads: drilled only
- Number of holes x diameter: 3168 x 0.042"
- Weight: .15 lbs.
Product Identification
Product Type:Protoboard
Dimensions & Appearance
Width:4.5 in.
Length:8.5 in.
Features
Power / Ground Busses:0
Sides:Single
Pitch:0.1 in., 2.54 mm
Hole Size:0.042 in.
Circuit Pattern:Pad per hole
Thickness:0.0625 in.
Plating:Epoxy Glass
No. Of Holes:3168
