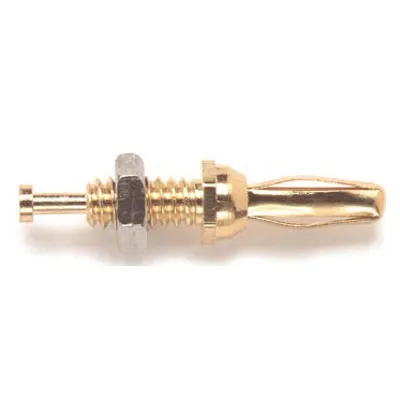

Miniature Banana Plug with Threaded Stud


Features:

  • Threaded stud enables fast and easy mounting to panels
  • Solder turret allows wire attachment.
  • Miniature banana plug features gold plated Beryllium copper for long insertion life and low contact resistance
  • Body material: Brass, gold-plated
  • Hex nut material: 4-40 nut, brass, nickel-plated
  • Rating: 2500VDC @ 5A max.
  • Threaded length: 0.23" (5.8mm)

    • Product Identification

    Additional Feature:10 Pack
    Product Type:Banana Plug
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Color:Gold
    Length:1.01 in.
    Body Material:Brass, Gold Plating
    Mounting Type:Panel Mount

    Features

    Contact Material:Beryllium Copper
    Insulation Material:N/A
    Mating Information:Miniature
    Insulation:Non-Insulated
    Contact Plating:Gold
    Gender:Male
    Wire Gauge (AWG):N/A
    Termination:Turret
    Current Rating:5 A
    Voltage Rating:2500 VDC
    ,
