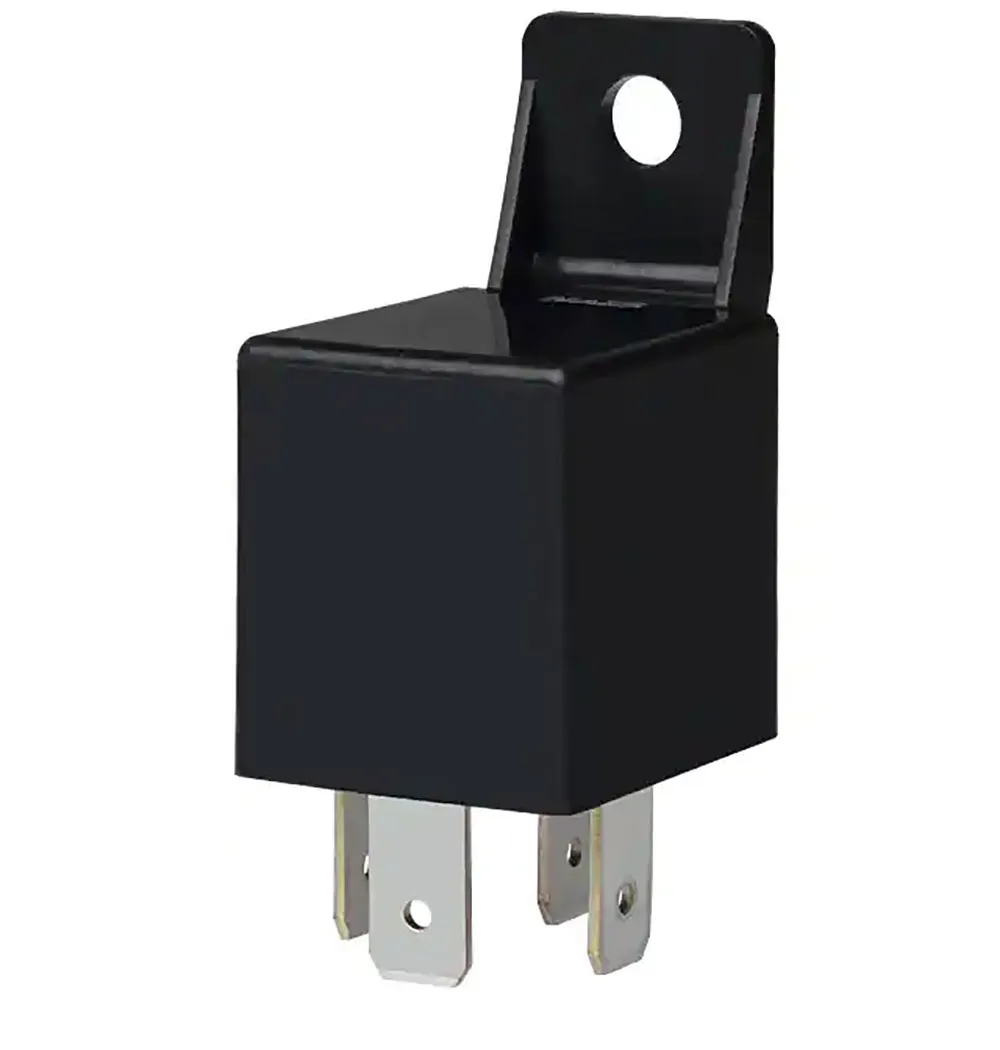

Automotive Relay SPST-NO (1 Form A) 24V 20A 320 Ohm Chassis Mount 0.25" Quick Connect

Specifications

  • Series: CB
  • Coil Type: Non Latching
  • Coil Current: 75 mA
  • Coil Voltage: 24 VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 20 A
  • Switching Voltage: 28 VDC - Nominal
  • Must Operate Voltage: 14 VDC
  • Must Release Voltage: 2.4 VDC
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Features: Fully Sealed
  • Mounting Type: Chassis Mount
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Operating Temperature: -40°C to 85°C
  • Contact Material: Silver Alloy, Cadmium Free
  • Coil Power: 1.8 W
  • Coil Resistance: 320 Ohms

Product Identification

Product Type:Automotive Relay

Features

Pins:4
Coil Voltage:24 VDC
Coil Resistance:320 Ohm
Contact Form:SPST-NO
Current Rating:20 A
,
