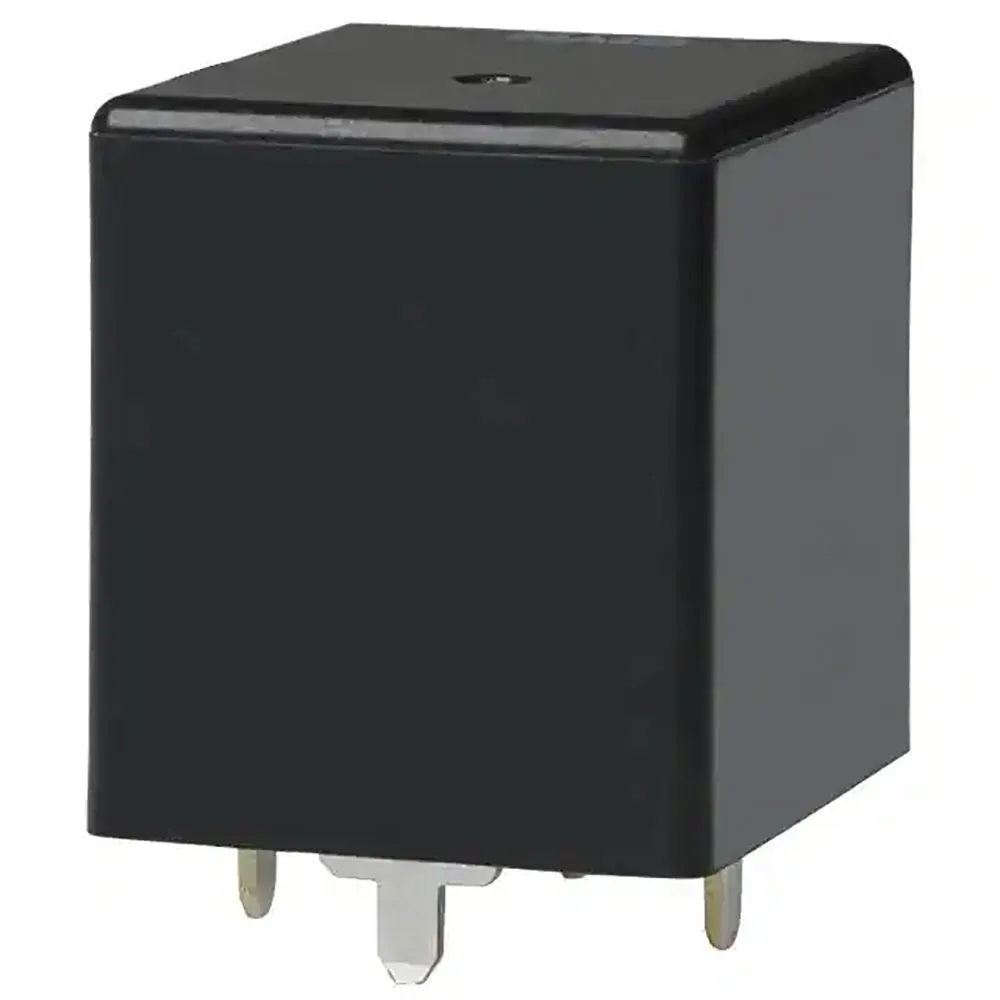

Automotive Relay SPST-NO (1 Form A) 12V 40A Through Hole

Specifications

  • Series: CB
  • Coil Type: Non Latching
  • Coil Current: 117 mA
  • Coil Voltage: 12 VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 40 A
  • Switching Voltage: 14 VDC - Nominal
  • Must Operate Voltage: 7 VDC
  • Must Release Voltage: 1.2 VDC
  • Operate Time: 15 ms
  • Release Time: 15 ms
  • Features: Fully Sealed
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -40°C to 85°C
  • Contact Material: Silver Alloy, Cadmium Free
  • Coil Power: 1.4 W
  • Coil Resistance: 103 Ohms

Product Identification

Product Type:Automotive Relay

Compliance

RoHS Status:Undefined

Features

Pins:4
Coil Voltage:12 VDC
Coil Resistance:103 Ohm
Contact Form:SPST-NO
Current Rating:40 A
,
