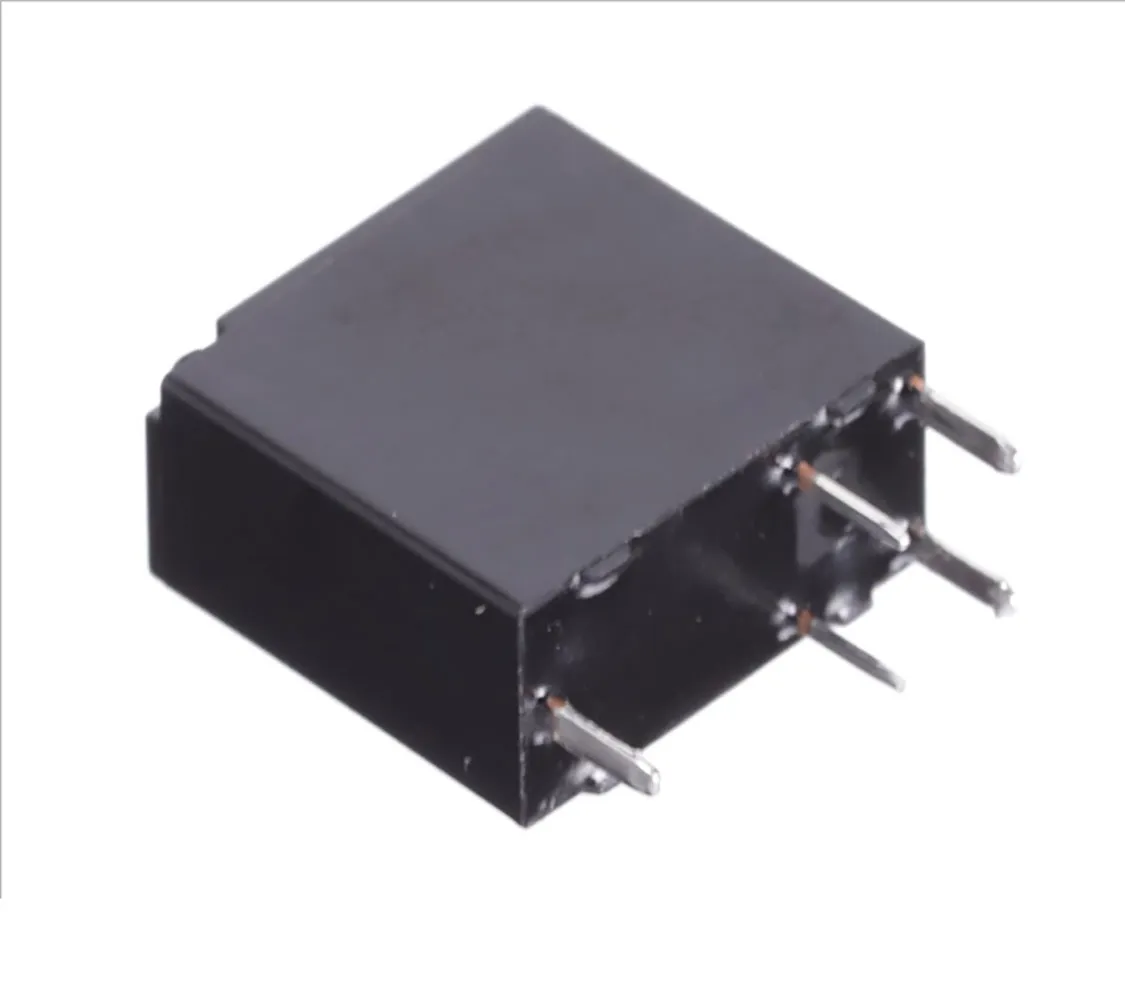

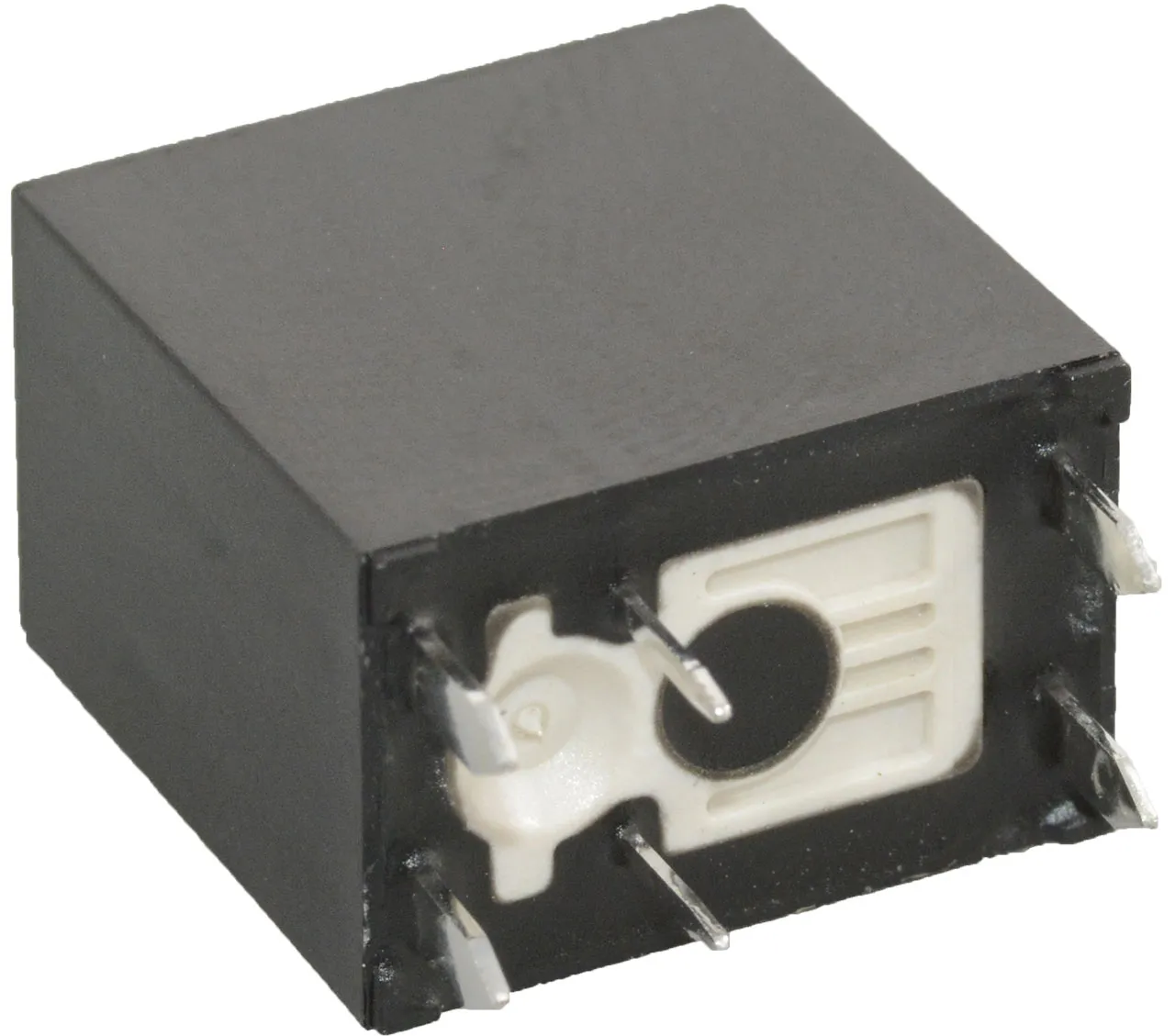

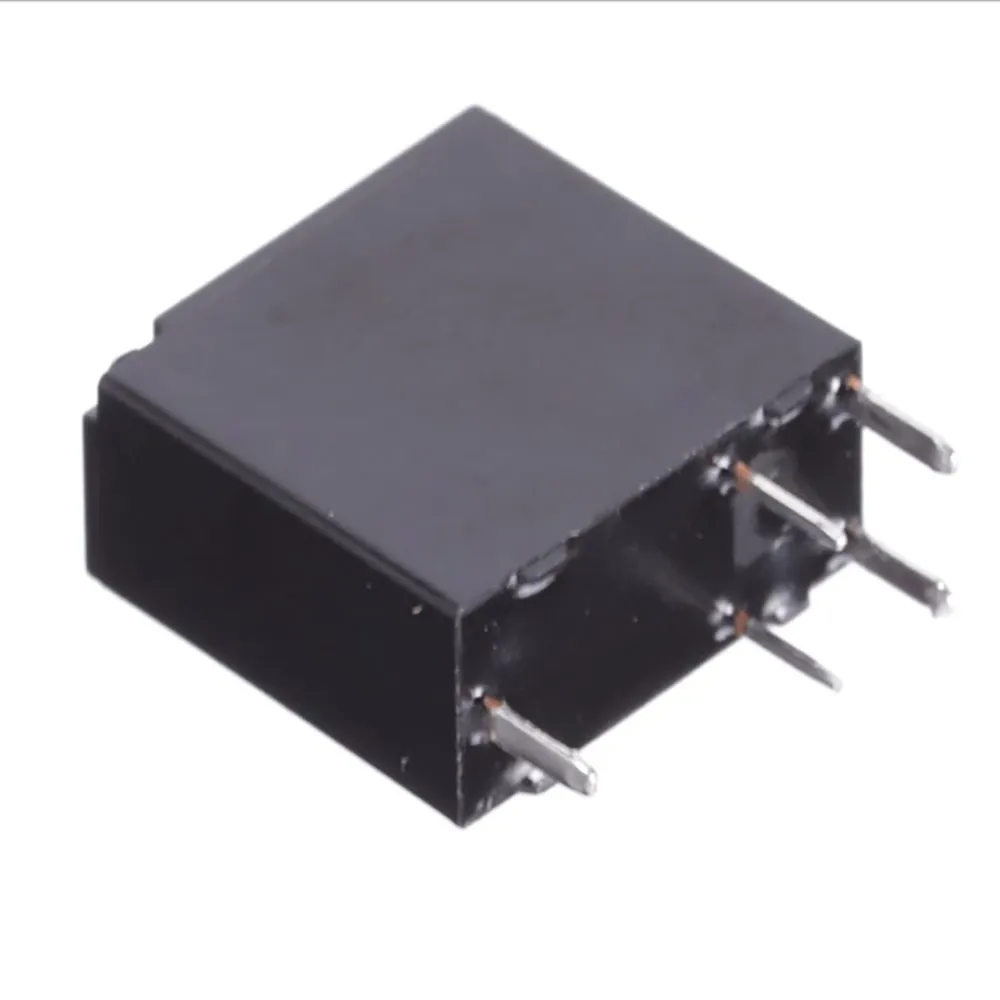

Automotive Relay SPDT (1 Form C) 12V 30A Through Hole

Specifications

  • Series: G8N-1
  • Coil Type: Non Latching
  • Coil Current: 92.3 mA
  • Coil Voltage: 12 VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 30 A
  • Switching Voltage: 16 VDC - Nom
  • Must Operate Voltage: 5.5 VDC
  • Must Release Voltage: 0.8 VDC
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -40°C to 85°C
  • Contact Material: Silver Tin (AgSn)
  • Coil Power: 1.1 W
  • Coil Resistance: 130 Ohms

Product Identification

Product Type:Automotive Relay

Compliance

RoHS Status:Undefined

Features

Pins:5
Coil Voltage:12 VDC
Coil Resistance:130 Ohm
Contact Form:SPDT
Current Rating:30 A
,
