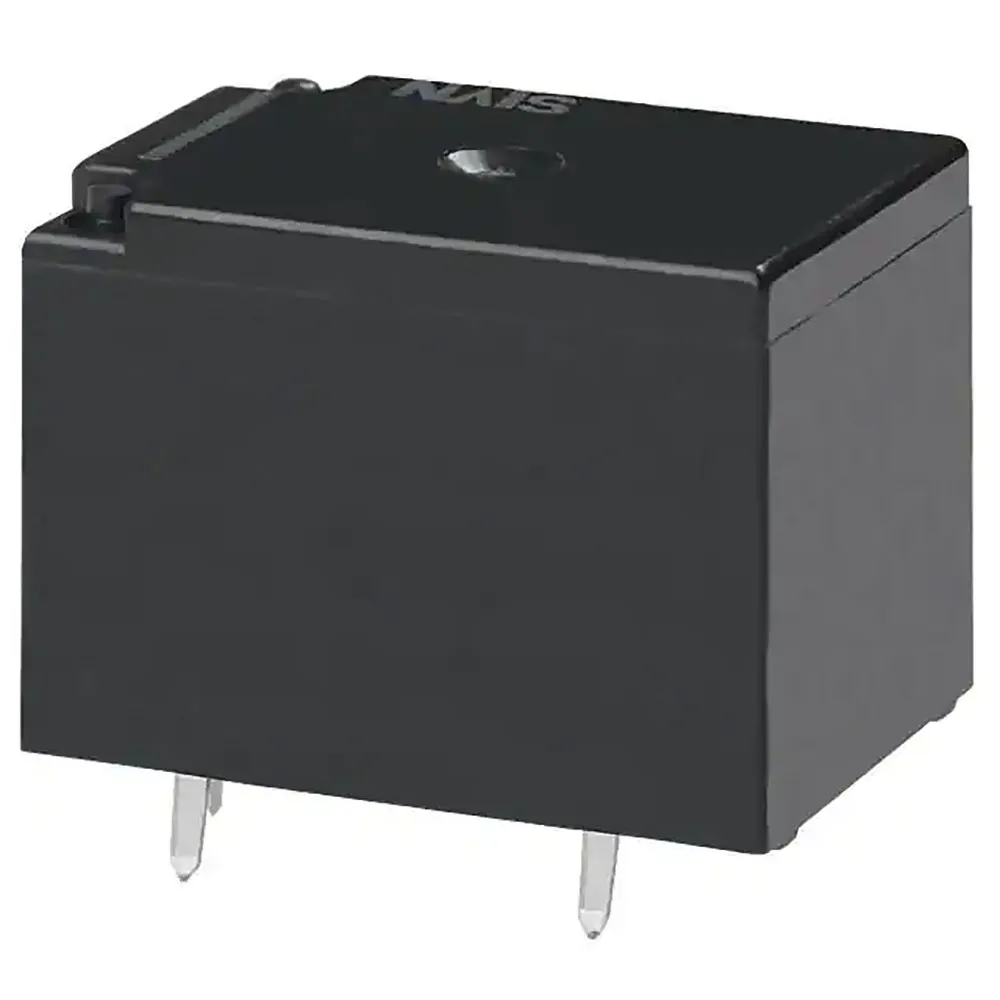

Automotive Relay SPDT (1 Form C) 12V 10A Through Hole

Specifications

  • Series: JS-M
  • Coil Type: Non Latching
  • Coil Current: 30 mA
  • Coil Voltage: 12 VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 10 A
  • Switching Voltage: 15.6 VDC - Max
  • Must Operate Voltage: 9 VDC
  • Must Release Voltage: 1.2 VDC
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Features: Fully Sealed
  • Operating Temperature: -40°C to 105°C
  • Contact Material: Silver Alloy, Cadmium Free
  • Coil Power: 360 mW
  • Coil Resistance: 400 Ohms

Product Identification

Product Type:Automotive Relay

Compliance

RoHS Status:Undefined

Features

Pins:5
Coil Voltage:12 VDC
Contact Form:SPDT
Coil Resistance:400 Ohm
Current Rating:10 A
,
