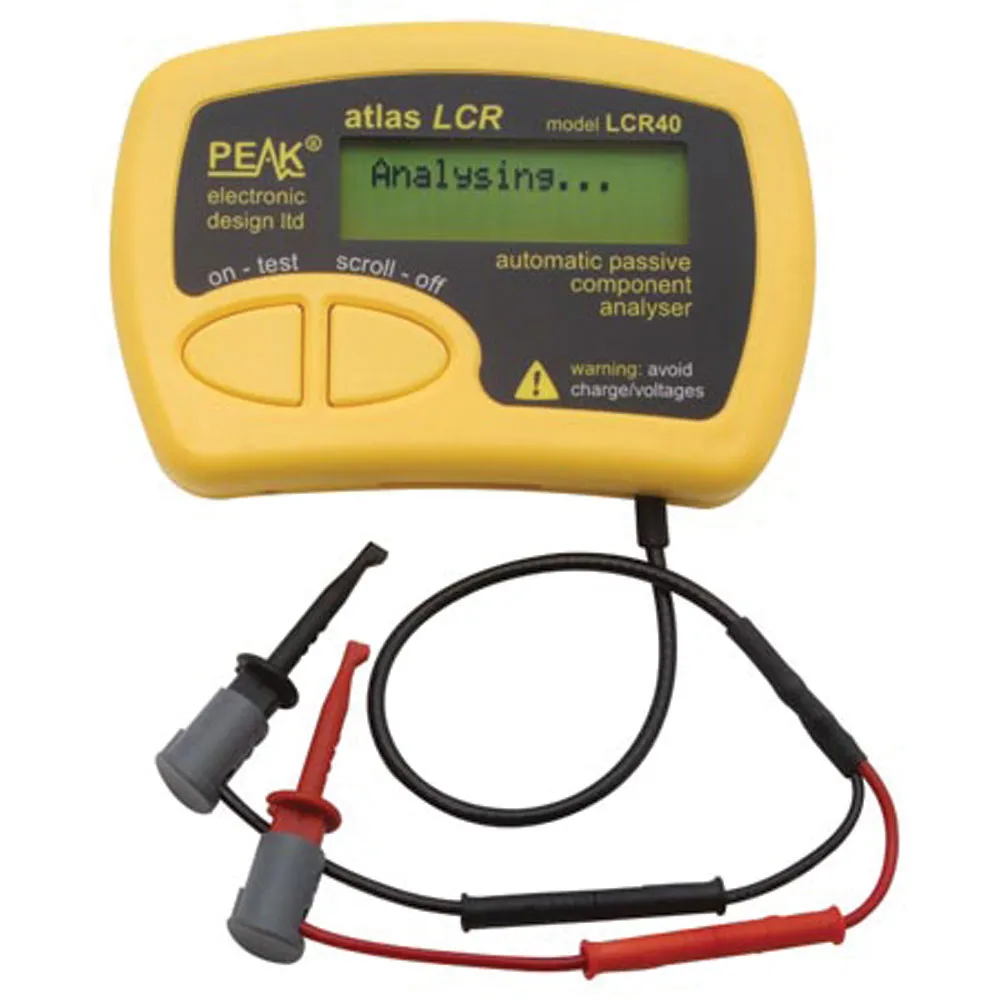

Automatic Passive Component Analyzer Tool

Features

• Automatic component identification
• Automatic test frequency selection (DC, 1kHz, 15kHz and 200kHz)
• Delayed or instant analysis (for hands free operation)
• Auto power-off
• Probe and test lead compensation
• Interchangeable probe sets
• Automatic ranging and scaling
• 1% basic accuracy for resistors
• 1.5% basic accuracy for inductors and capacitors

Specifications

• Specification Summary at 20°C (68°F) unless otherwise specified
• Resistance:
  • Range: 1Ohm to 2MOhm
  • Resolution: 0.3Ohm
  • Accuracy: ±1.0% ±1.2Ohm
• Capacitance :
  • Range: 0.5pF to 10000µF
  • Resolution: 0.2pF
  • Accuracy: ±1.5% ±1.0pF
• Inductance:
  • Range: 1µH to 10H
  • Resolution: 0.4µH
  • Accuracy: ±1.5% ±1.6µH
• Peak test voltage across O/C: -1.05V to +1.05V
• Peak test current into short circuit: -3.25mA to +3.25mA
• Test frequency accuracy: -1.5% to +1.5%
• Sine purity: -60dB 3rd harmonic
• Operating temperature range: 10°C to 40°C (50°F to 104°F)
• Battery operating voltage: 8.5V to 13V
• Weight per product (net.): 0.098kg (3.5oz)
• Dimensions per product : 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
