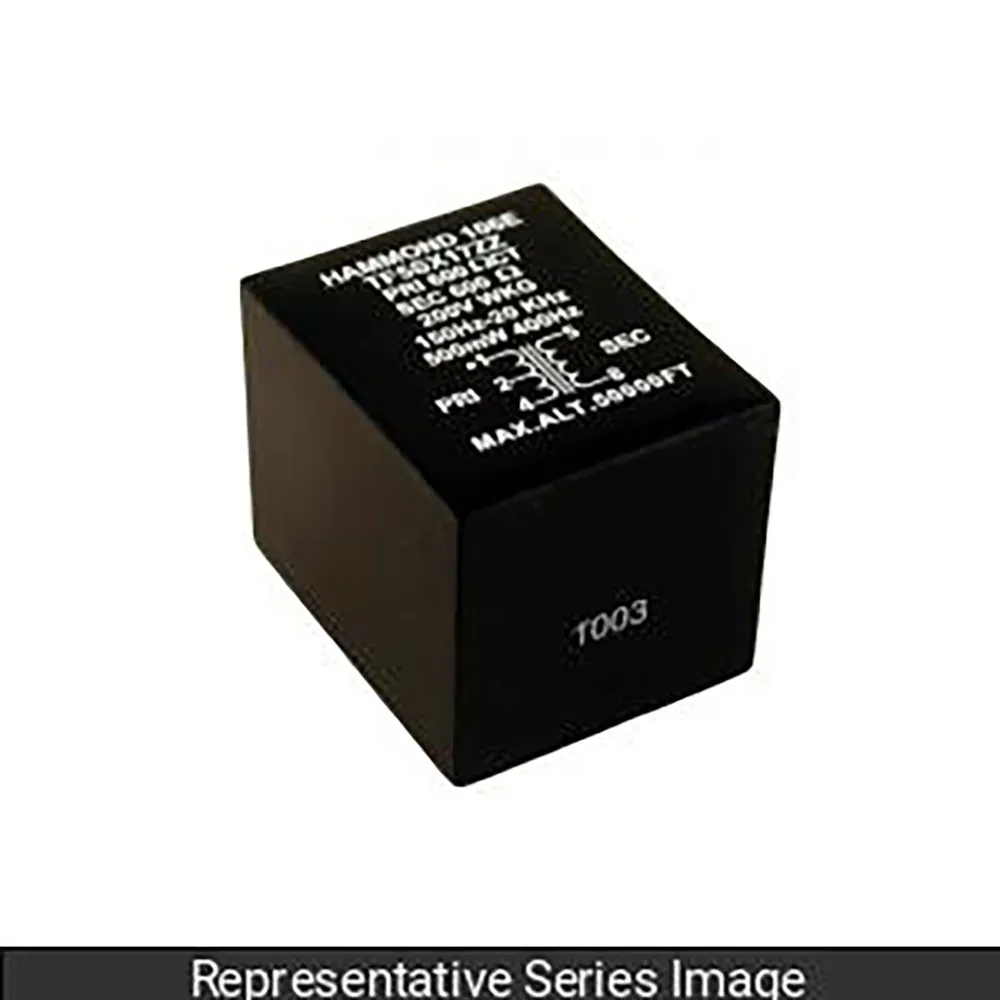

Audio Transformer Potted, Primary 50000Ohms, Secondary 1500 CT Ohms

Features

• Material: N/A
• Primary Nominal Impedance (Ohms): 50000
• Secondary Nominal Impedance (ohms): 1500 CT
• Max Primary D.C. ma.: 0
• Primary DCR (Ohms) +/- 15%: 2400
• Secondary DCR (Ohms) +/- 15%: 52
• Output Milliwatts: 10
• Insertion Loss (dB): 1
• Low Frequency Roll Off -1dB (Hz): 60
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Audio transformer, potted, primary 50000ohms , secondary 1500 CT ohms.

Resources & Downloads

• CAD PDF
