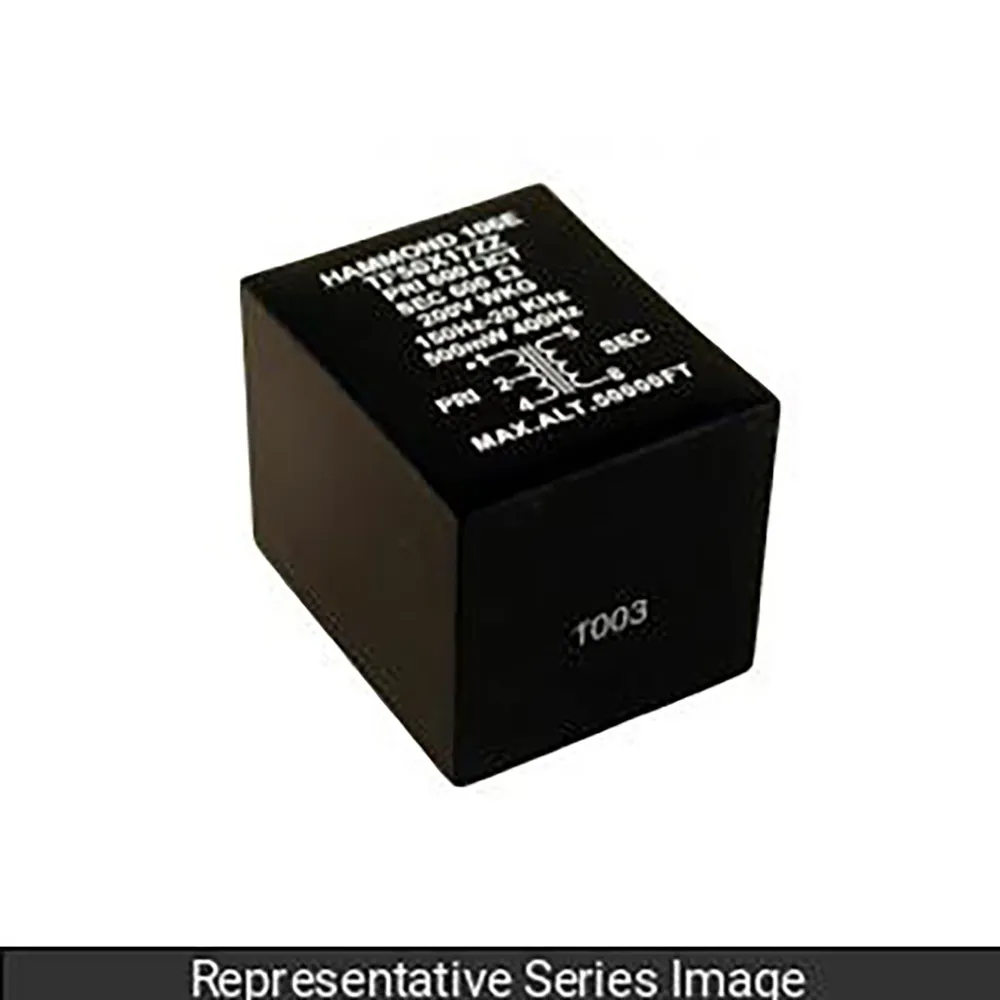

Audio Transformer Potted, Primary 48 CTohms, Secondary 3.2 Ohms

Features

  • Material: N/A
  • Primary Nominal Impedance (Ohms): 48 CT
  • Secondary Nominal Impedance (ohms): 3.2
  • Max Primary D.C. ma.: 32
  • Primary DCR (Ohms) +/- 15%: 2.4
  • Secondary DCR (Ohms) +/- 15%: 0.3
  • Output Milliwatts: 1500
  • Insertion Loss (dB): 1
  • Low Frequency Roll Off -1dB (Hz): 170
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Audio transformer, potted, primary 48 CT Ohms , secondary 3.2 ohms.

Resources & Downloads

Product Identification

Manufacturer Series:106
Product Type:Audio Transformer

Features

Secondary Impedance:3.2 Ohm
Primary Impedance:48 CT Ohm
,
