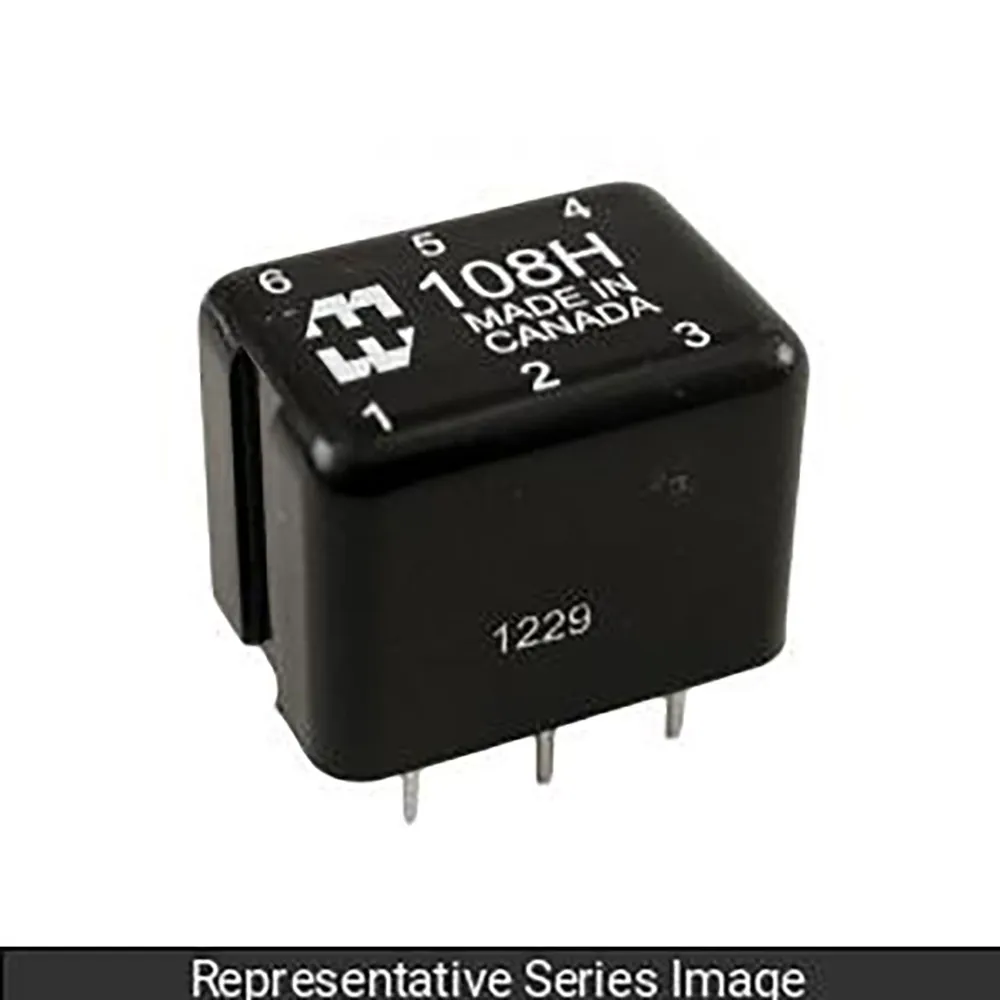

Audio Transformer Potted Primary 1.5K CTohms Secondary 600 CT Ohms 4mA

Features

• Material: N/A
• Primary Nominal Impedance (Ohms) Pins 1-3: 1.5K ct
• Secondary Nominal Impedance (ohms) Pins 4-6: 600 ct
• Primary DCR (Ohms) +/- 20%: 170
• Secondary DCR (Ohms) +/- 20%: 69
• Max. D.C. Unbalance (ma.): 4
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Audio transformer, potted, primary 1.5K ctohms , secondary 600 ct ohms.

Resources & Downloads

• CAD PDF
