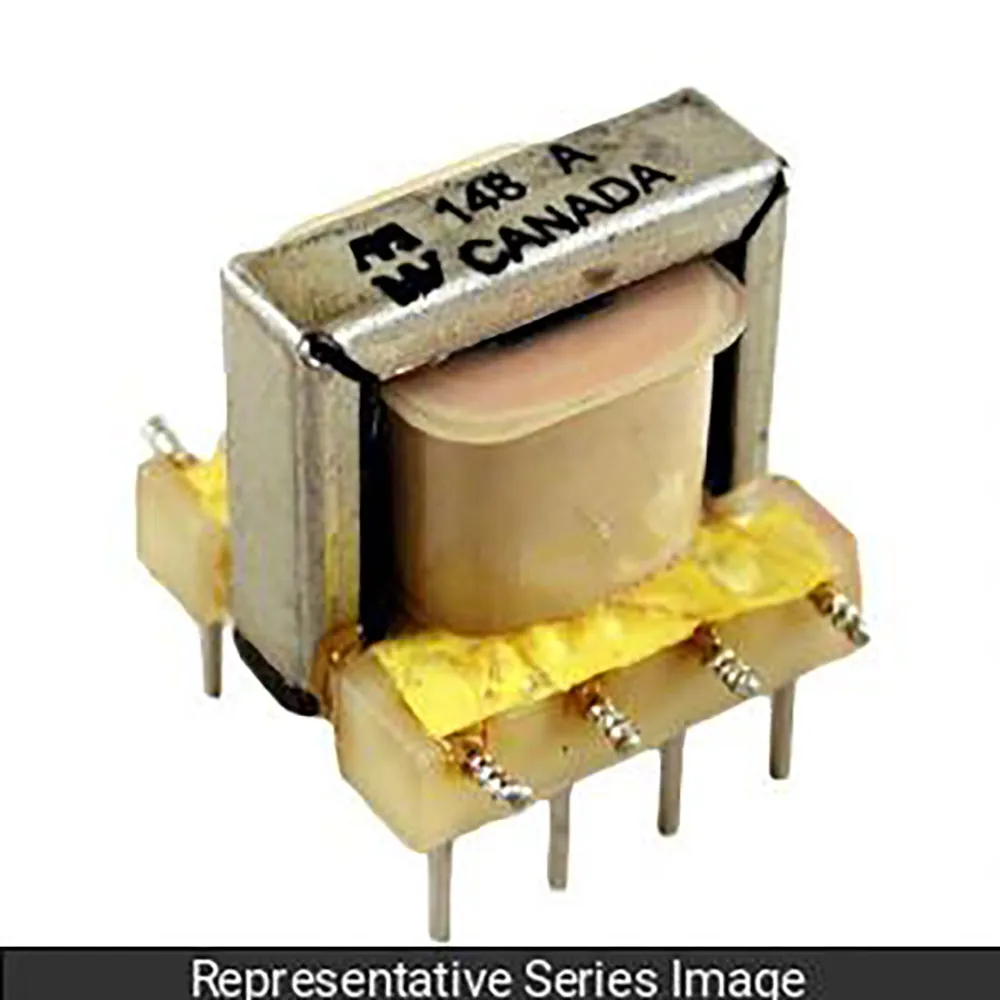

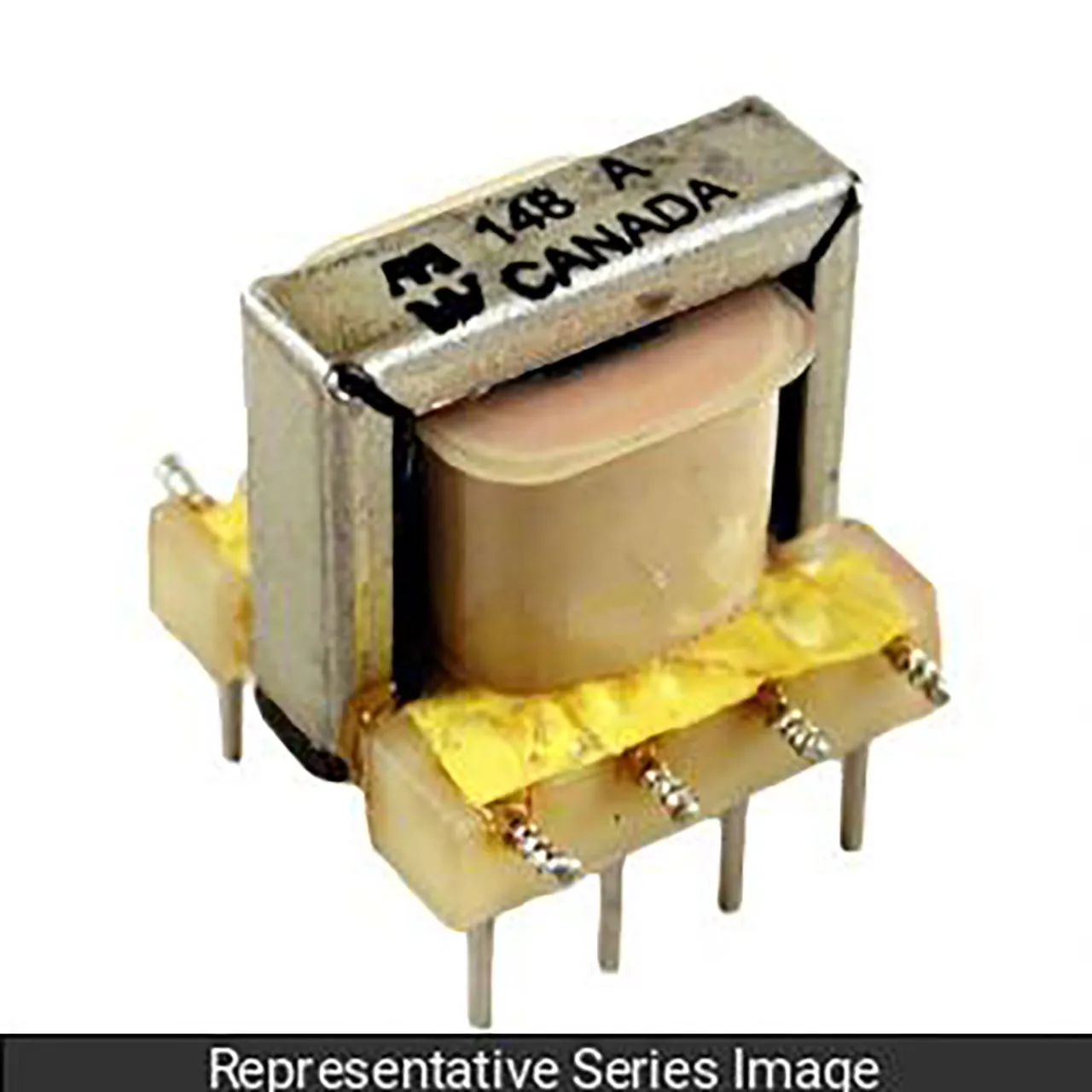

Audio Transformer Open Frame Pc Board Mount, Input, 150:400/1600 Ohms

Features

  • Material: N/A
  • Application: Input
  • Primary Nominal Impedance (ohms): 150
  • Secondary Nomical Impedance (ohms): 400/1600
  • Primary D.C. Current (ma): 3.8
  • Primary D.C. Resistance (ohms) +/- 15%: 11.3
  • Secondary D.C. Resistance (ohms) +/- 15%: 200
  • Output (mW): 300
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Audio transformer, open frame PC board mount, Input, 150:400/1600 ohms.

Resources & Downloads

Product Identification

Product Type:Audio Transformer
Manufacturer Series:148

Features

Secondary Impedance:400/1600 Ohm
Primary Impedance:150 Ohm
Power Rating:300 mW
,
