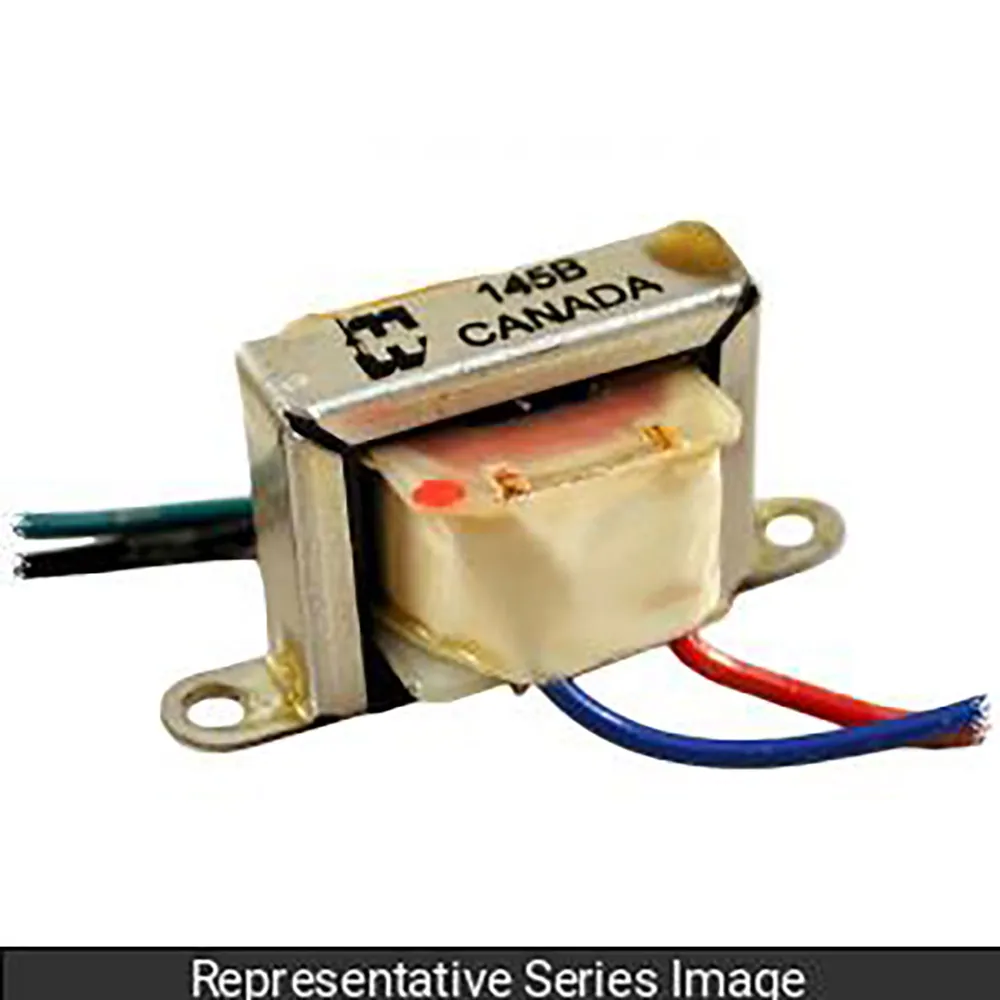

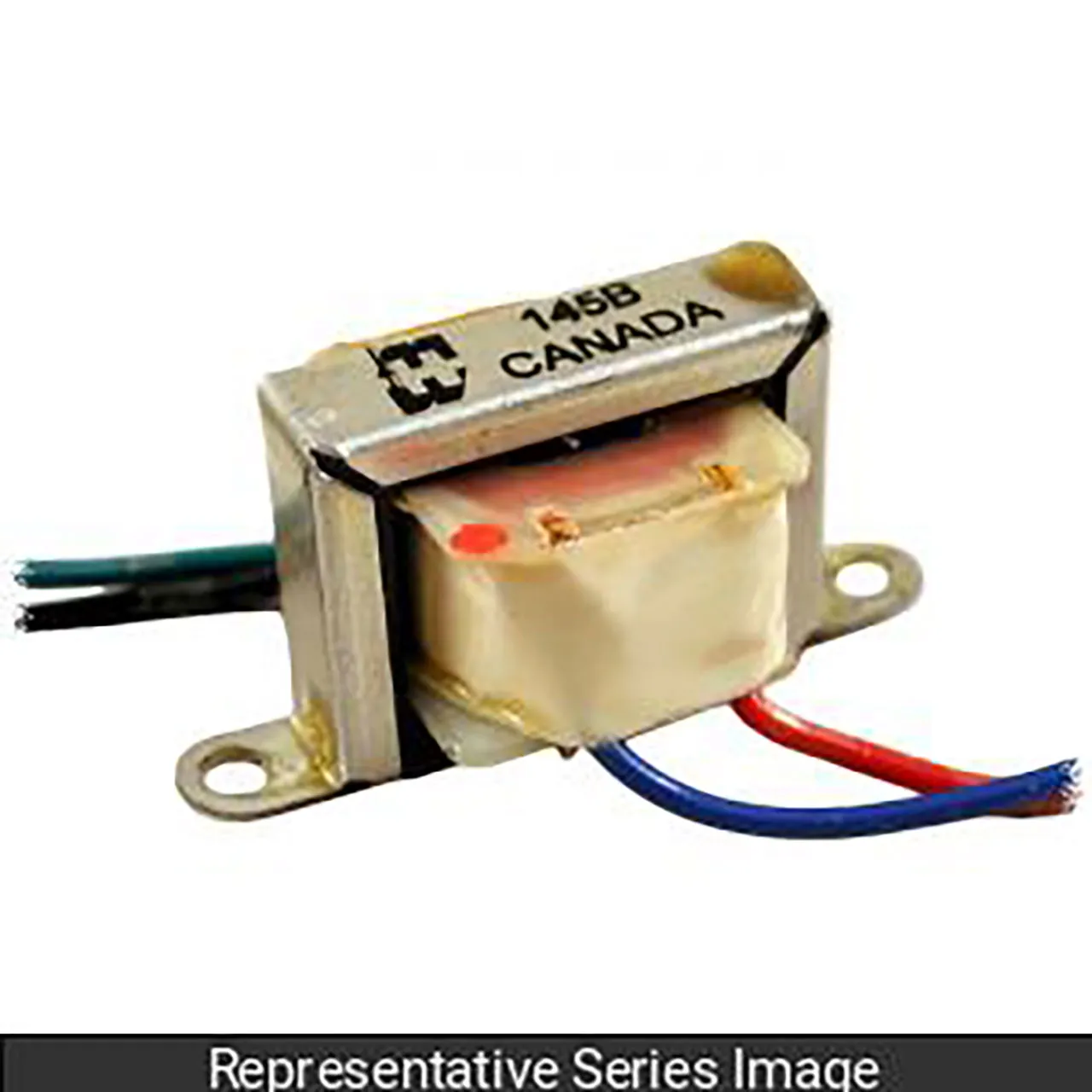

Audio Transformer Chassis Mount, Driver, 15000:200 CT Ohms, 143-146 Series

Features

• Material: N/A
• Application: Driver
• Primary Nominal Impedance (ohms): 15000
• Secondary Nomical Impedance (ohms): 200 ct
• Primary D.C. Current (ma): 4
• Primary D.C. Resistance (ohms) +/- 15%: 850
• Secondary D.C. Resistance (ohms) +/- 15%: 10
• Output (mW): 135
• USMCA Compliant: Yes
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Audio transformer, chassis mount, Driver, 15000:200 ct ohms, 143-146 Series.
