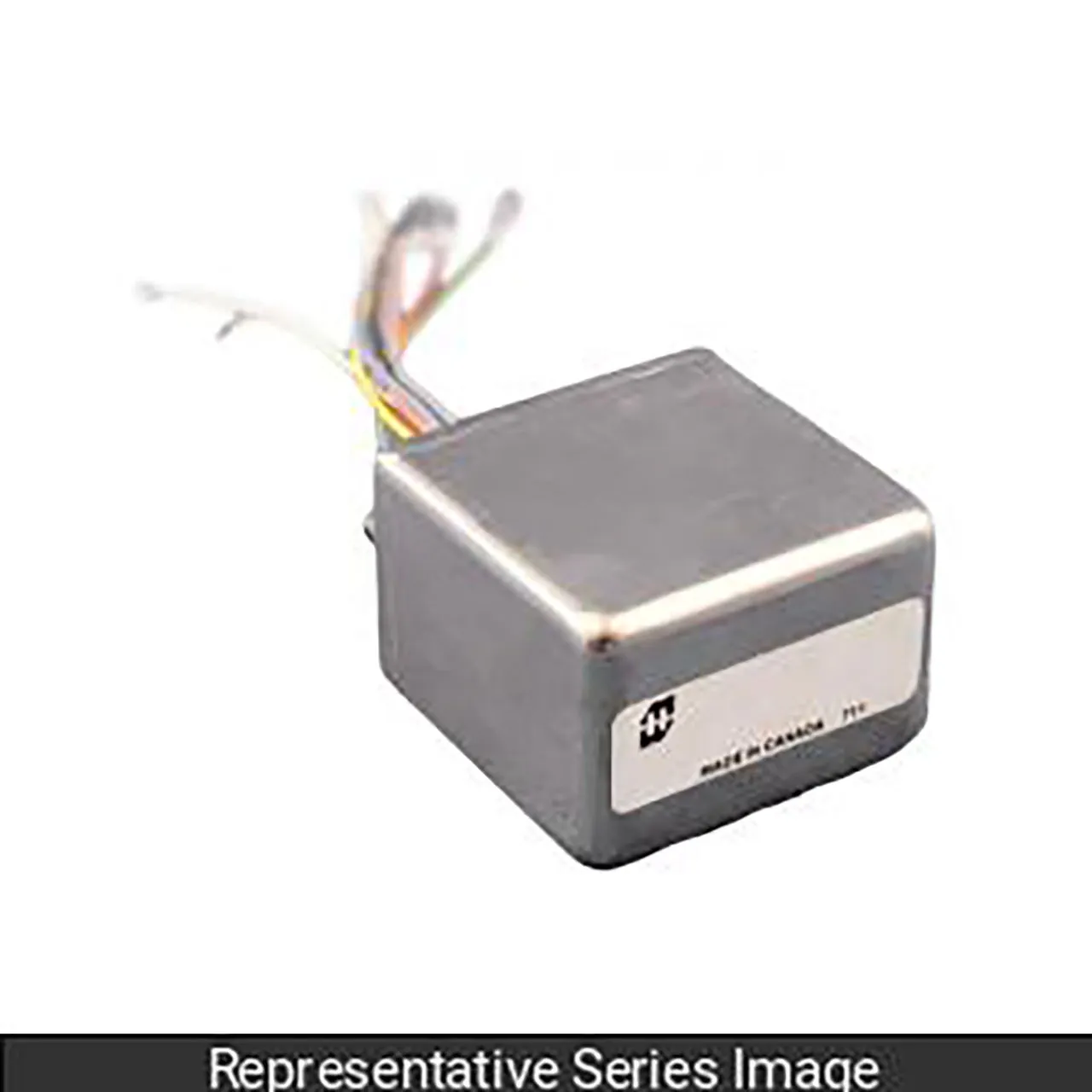

Audio Transformer Broadcast,Sealed, Output To Line, Or Line To Base, 850A Series

Features

  • Material: N/A
  • Application: Output to Line, or Line to Base
  • Primary Nominal Impedance (Ohms): 150/600
  • Secondary Nominal Impedance (Ohms): 1200/4800
  • Primary Nominal Resistance +/-20% (Ohms): 69
  • Secondary Nominal Resistance +/-20% (Ohms): 570
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Audio transformer, broadcast,sealed, Output to Line, or Line to Base, 850A Series.

Resources & Downloads

Product Identification

Manufacturer Series:850A
Product Type:Broadcast Quality Audio Transformer

Features

Transformer Type:Output to Line, or Line to Base
Secondary Impedance:1200/4800 Ohm
Primary Impedance:150/600 Ohm
,
