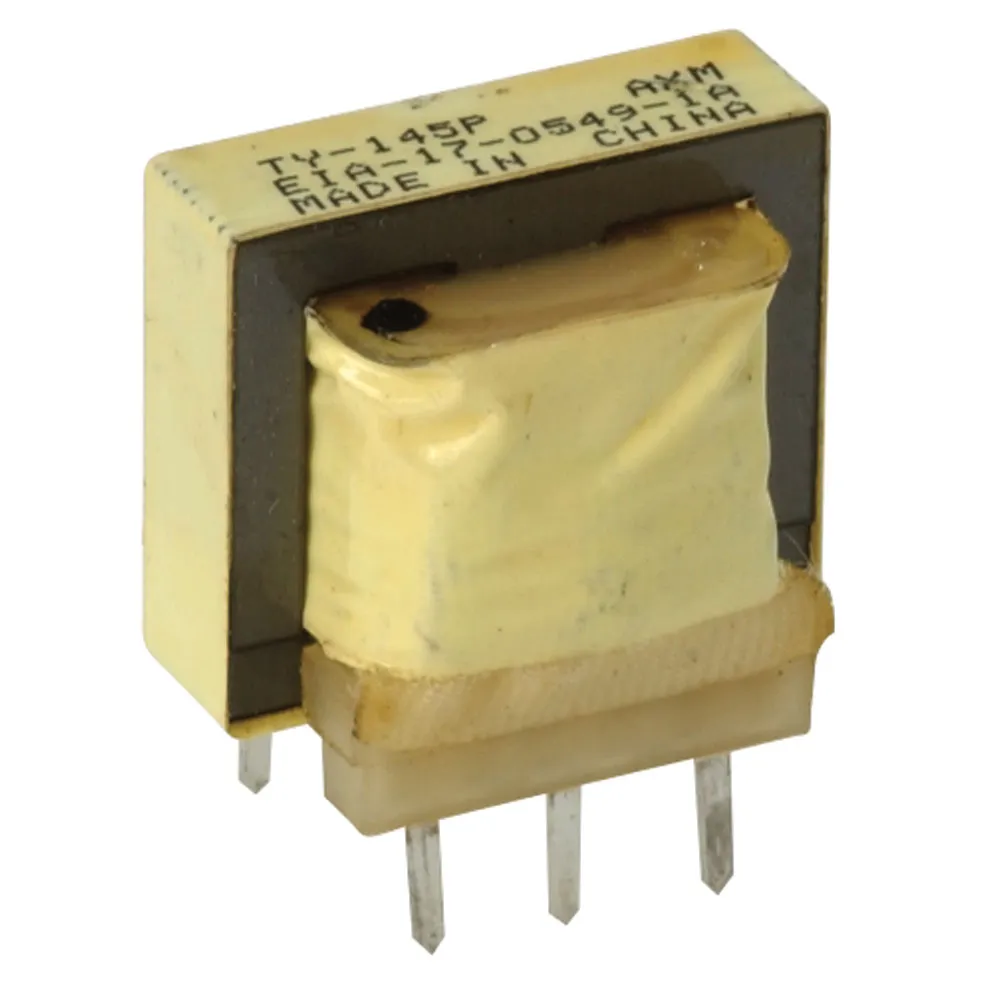

PC Mount Audio Transformer

These transformers operate in the 200 Hz to 15,000 Hz range, making them suitable for a broad application spectrum in the audio industry.

Features:

• Impedance: Primary: 600Ω CT + 15% with 600Ω load; Secondary: 600Ω CT
• Output: 100mW
• Turns ratio: 1:1
• Insertion loss @ 1kHz: <1.5dB
• Return loss: >26dB
• Frequency response: ± 2dB from 200 to15,000 Hz
• Dielectric strength: 1500V primary to secondary to core
• 6-pin PC mount
