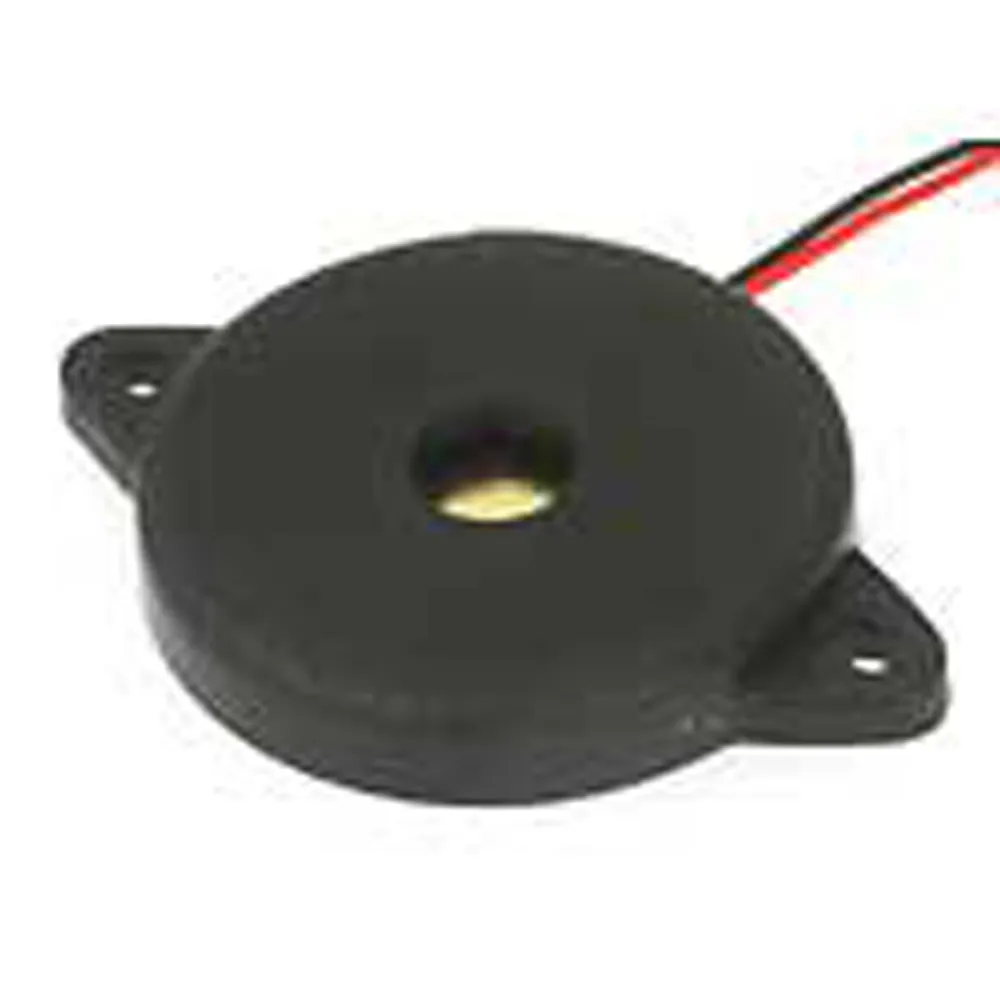

Piezo Transducer Speaker
Features:
- Rated voltage: 12Vp-p
- Maximum current: 3mA
- Resonant frequency: 4kHz
- Sound output: 80dB
- Size: 4.5mm H x 24mm Dia.
Dimensions & Appearance
Height:0.22 in.
Mounting:Panel Mount
Diameter:0.94 in.
Size (H" x Dia."):0.22 x 0.94
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Voltage:12 V to 30 V
Output
Output:80 dBA
Features
Tone Mode:Single
Technology:Piezo
Voltage Range (Vp-p):12-30
Frequency:4000 Hz
Termination Style:Screw
Frequency Range:3500 Hz to 4500 Hz
Current Rating:3 mA
