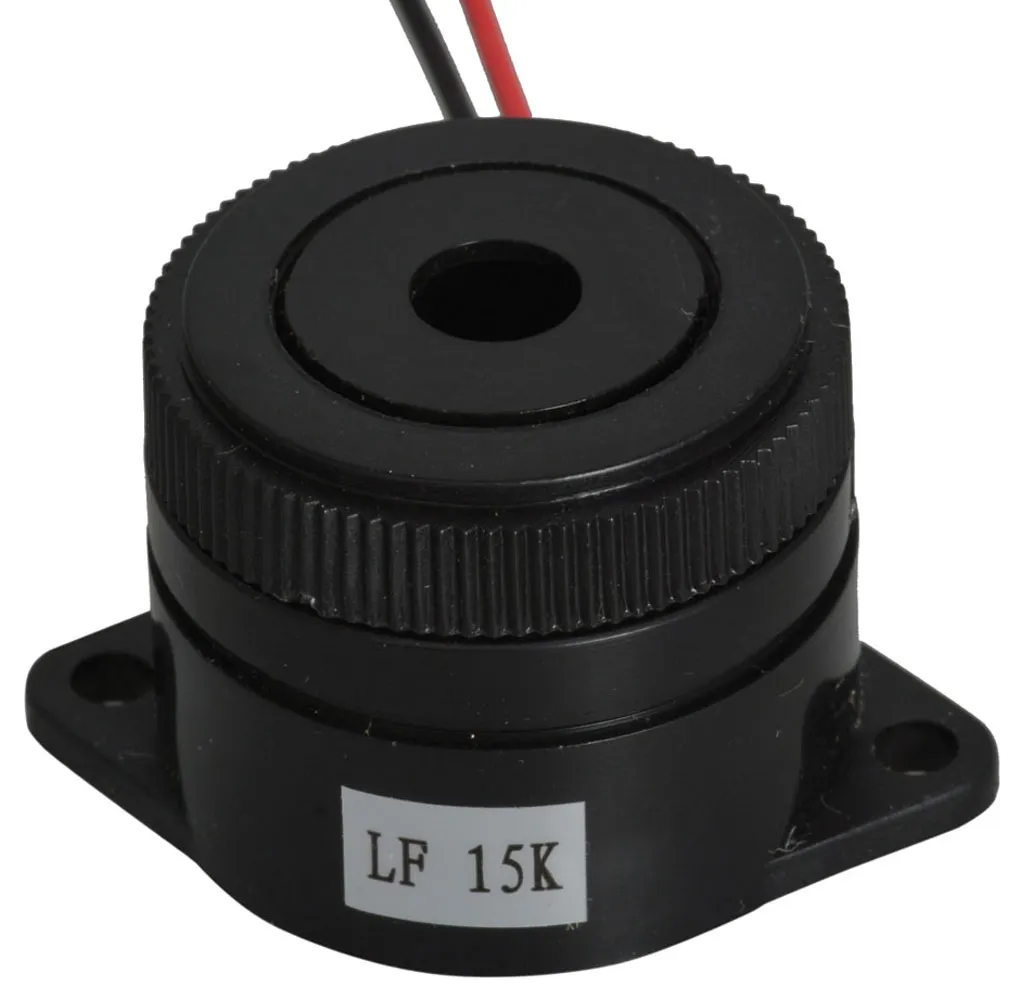

Piezo Buzzer Annunciator

Features:

  • Single tone
  • Operating voltage: 24 VDC @ 20mA
  • Voltage range: 1.5-28 VDC
  • Sound output: 95dB
  • Frequency: 3200Hz
  • Size: 1.0"H x 1.1"Dia. (25.4mm H x 27.9mm Dia.)

Dimensions & Appearance

Diameter:1.61 in.
Height:1 in.
Size (H" x Dia."):1.0 x 1.61
Mounting:Panel Mount

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Voltage:21 V

Output

Output:95 dBA

Features

Tone Mode:Single
Voltage Range (Vp-p):1.5-28
Technology:Piezo
Frequency:3200 Hz
Termination Style:Wire Lead
Frequency Range:2700 Hz to 3700 Hz
Current Rating:20 mA
,
