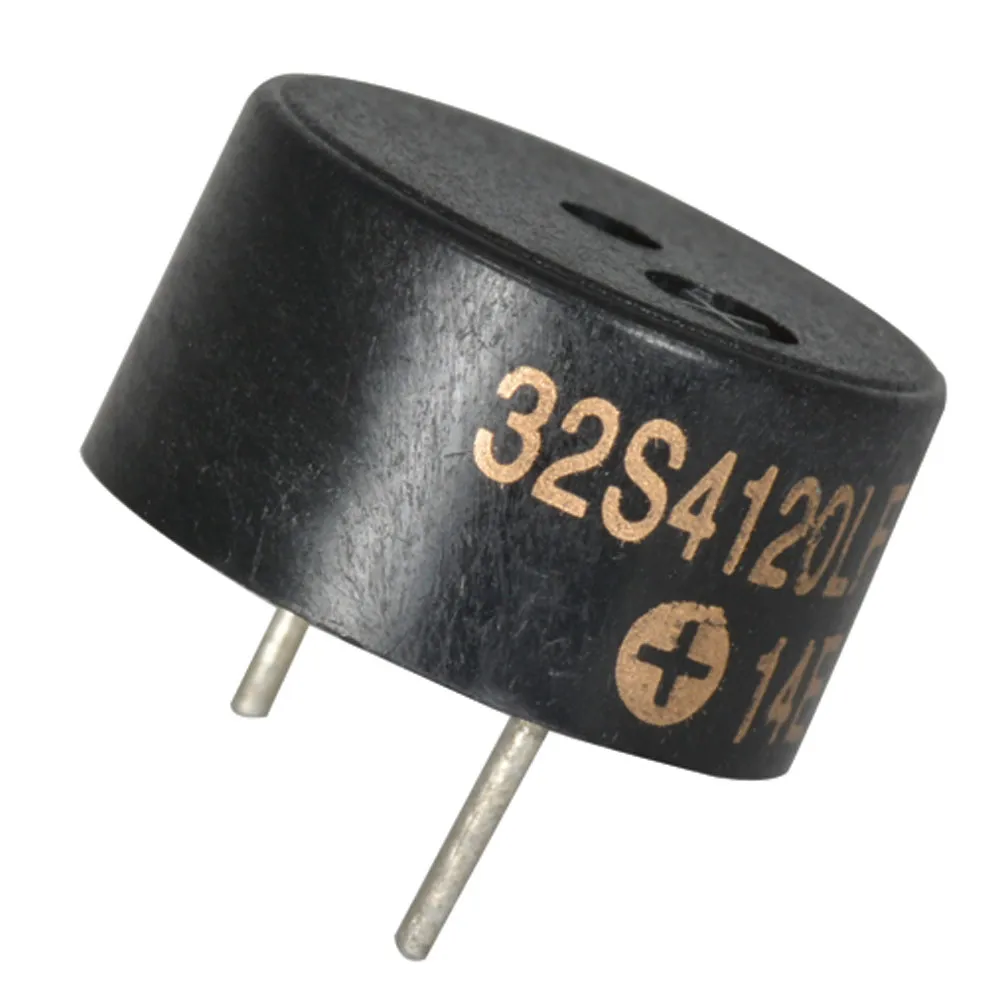

Piezo Buzzer Annunciator

Features:

  • Single tone
  • Operating voltage: 12V @ 7mA
  • Voltage range: 3-16V
  • Sound output: 80dB
  • Frequency: 4000Hz
  • Size: 0.30"H x 0.54"Dia. (7.6mm H x 13.7mm Dia.)

    • Dimensions & Appearance

    Diameter:0.54 in.
    Height:0.30 in.
    Size (H" x Dia."):0.30 x 0.54
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:60°C

    Input

    Input Voltage:12 V

    Output

    Output:80 dBA

    Features

    Tone Mode:Single
    Voltage Range (Vp-p):3-16
    Technology:Piezo
    Termination Style:PC Pins
    Frequency:4000 Hz
    Frequency Range:3500 Hz to 4500 Hz
    Current Rating:7 mA
    ,
