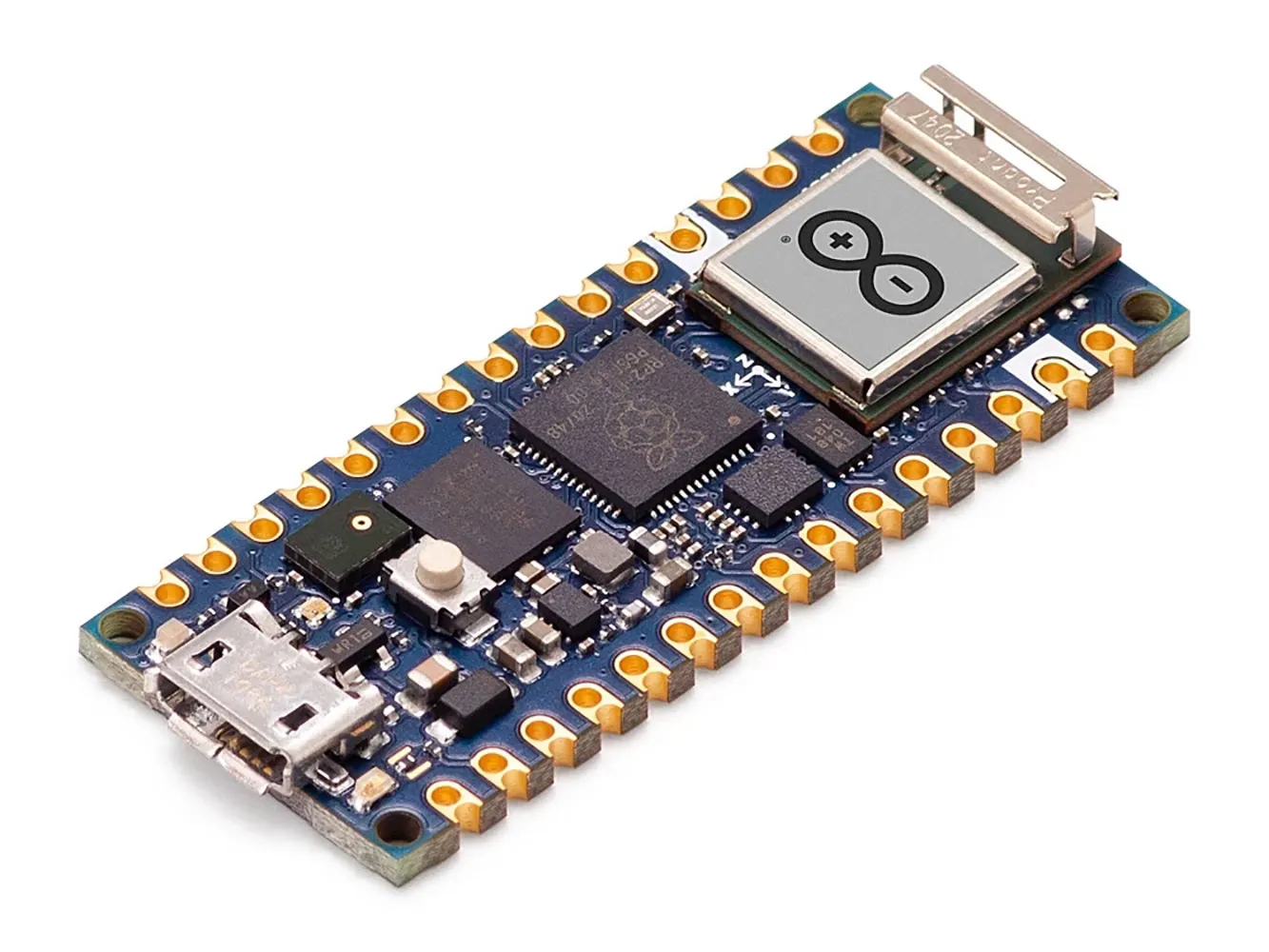

Arduino Nano RP2040 Connect

This is the only connected RP2040 board. It's designed to fit the Arduino Nano form factor, making it a little board with a lot of power. The Raspberry Pi RP2040 chip, a dual-core Arm Cortex M0+ running at 133MHz, is the brain of the board. It contains 264KB of SRAM and 16MB of off-chip flash memory for additional storage.

But it's the on-board connectivity choices that are really fascinating. The u-blox NINA-W102 radio module, which is extremely popular and versatile, is included to make this a genuine IoT champion. With complete Arduino Cloud connectivity, you may also tap into the power of the cloud.

It also has built-in sensors that transform your creations into powerhouse projects. Microphone and motion detection provide a level of flexibility to the board that is nearly unheard of in this size. The Arduino Nano RP2040 Connect is the best choice for RP2040 devices, and it's ideal for both upgrading existing projects and developing new innovative ideas.

Specifications

• Board: Nano RP2040 Connect
• Microcontroller: Raspberry Pi RP2040
• USB Connector: Micro USB
• Pins
  • Built-in LED pin: 13
  • Digital I/O Pins: 20
  • Analog Input Pins: 8
  • PWM pins: 20 (Except A6, A7)
  • External interrupts: 20 (Except A6, A7)
• Connectivity
  • Wi-Fi: Nina W102 uBlox module
  • Bluetooth: Nina W102 uBlox module
  • Secure element: ATECC608A-MAHDA-T Crypto IC
• Sensors
  • IMU: LSM6DSOXTR (6-axis)
  • Microphone: MP34DT05
• Communication: UART, I2C, SPI
• Power: 3.3V (circuit operating voltage); 5-21V (Input Voltage, VIN); 4mA (DC Current per I/O Pin)
• Memory
  • AT25SF128A-MHB-T: 16MB Flash IC
  • Nina W102 uBlox module: 448 KB ROM, 520KB SRAM, 16MB Flash
• Size: 45mm L x 18mm W
• Weight: 6g

Resources & Downloads

• Schematic (.pdf)
• Pinout (.pdf)
• For the full technical documentation, tutorials and much more, visit Arduino Docs (off-site)
• Arduino Nano RP2040 Connect FAQ (off-site)

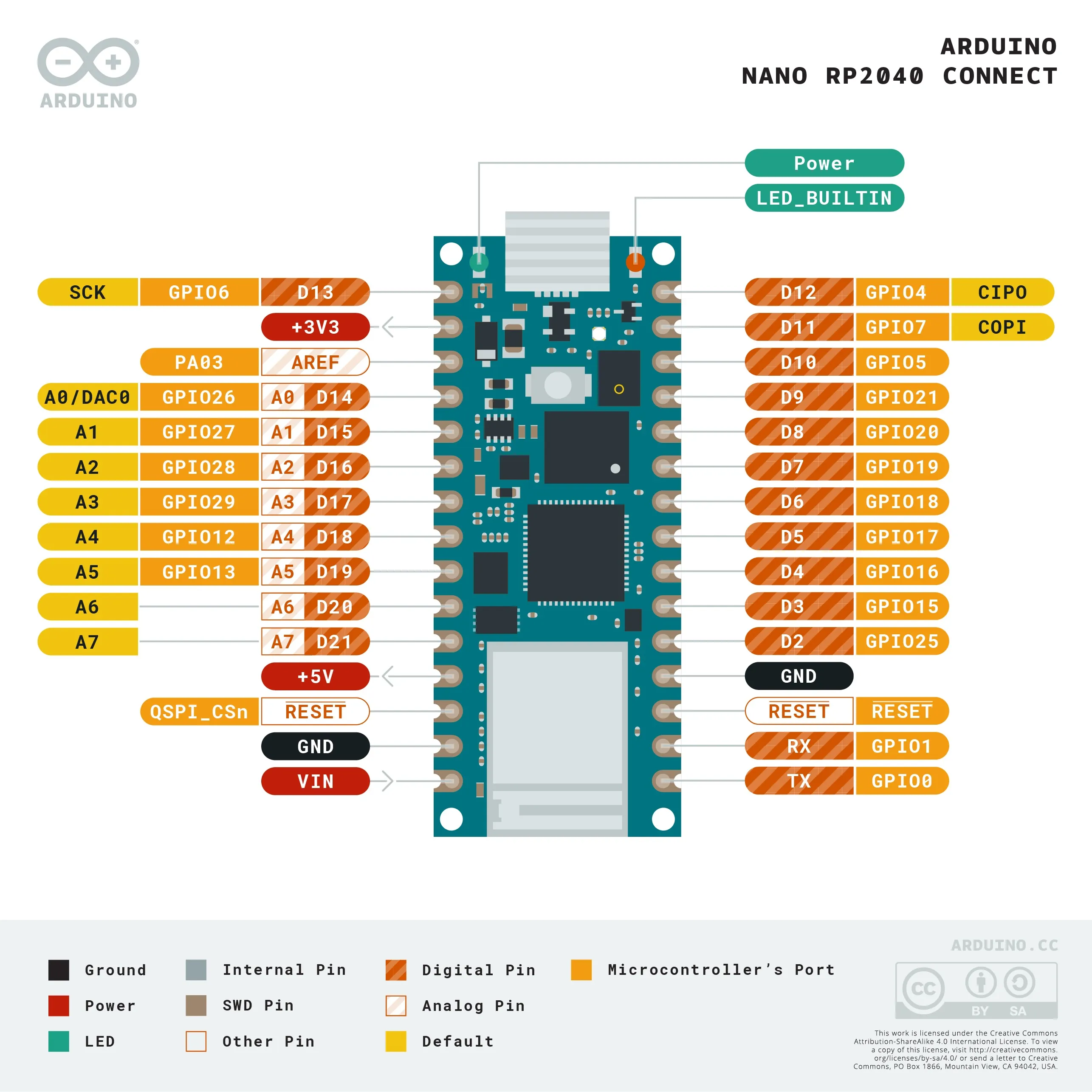

Arduino Nano RP2040 Connect Pinout
