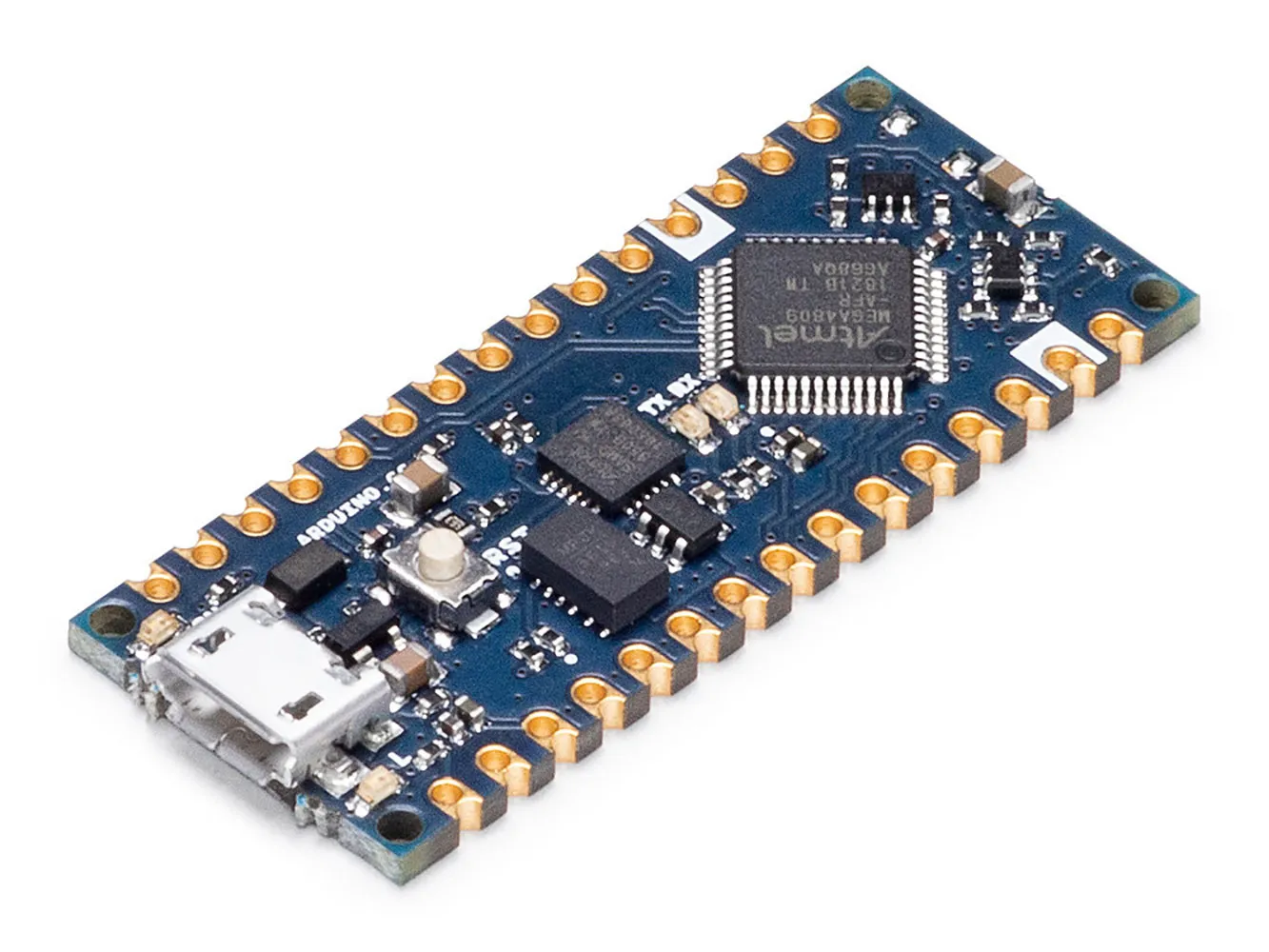

Arduino Nano Every Board without Headers

The Nano Every is Arduino's 5V compatible board in the smallest available form factor! The Arduino Nano is the preferred board for many projects requiring a small and easy to use microcontroller board. The Arduino Nano Every is an evolution of the traditional Arduino Nano but features a lot more powerful processor, the ATMega4809. This will allow you to make larger programs with a lot more variables than with the Arduino Uno because it has 50% more program memory and the RAM is 200% bigger.

Specifications

• Microcontroller: ATMega4809
• Operating Voltage: 5V
• Input Voltage (limit): 21V
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Clock Speed: 20MHz
• CPU Flash Memory: 48KB (ATMega4809)
• SRAM: 6KB (ATMega4809)
• EEPROM: 256byte (ATMega4809)
• PWM Pins: 5 (D3, D5, D6, D9, D10)
• UART: 1
• SPI: 1
• I2C: 1
• Analog Input Pins: 8 (ADC 10 bit)
• Analog Output Pins: Only through PWM (no DAC)
• External Interrupts: all digital pins
• LED_BUILTIN: 13
• USB: Uses the ATSAMD11D14A
• Size: 1.77"L x 0.71"W (45 x 18 mm)
• Weight: 5 gr (with headers)

Resources & Downloads

• Getting Started section (off-site)
• ATMega4809 datasheet (.pdf)
• ATSAMD11D14A datasheet (.pdf)
• EAGLE files (.zip)
• Schematic (.pdf)
