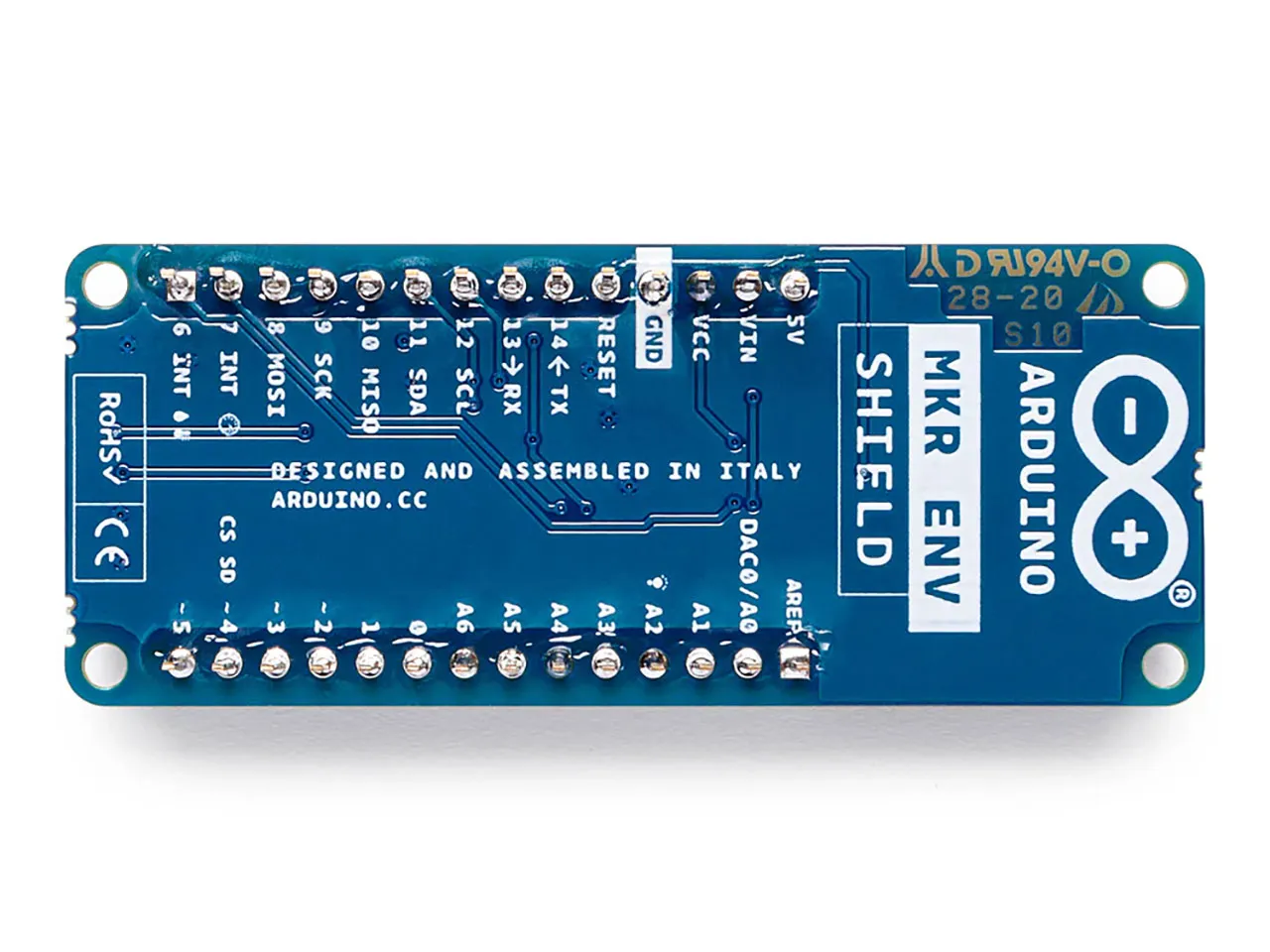

Arduino MKR ENV Shield Rev2

Features

  • ICs: LPS22HB, TEMT6000
  • Input Voltage: 3.3V
  • Operating Voltage: 3.3V
  • Ranges:
    • Pressure: 260 to 1260 hPa
    • rH sensitivity: 0.004% rH/LSB
    • Humidity accuracy: ± 3.5% rH, 20 to +80% rH
    • UVA, UVB and UVBI measurement
    • 0 to 650 Lux
  • Communication: I2C/Analog
  • Length: 61 mm
  • Width: 25 mm
  • Weight: 32 gr.

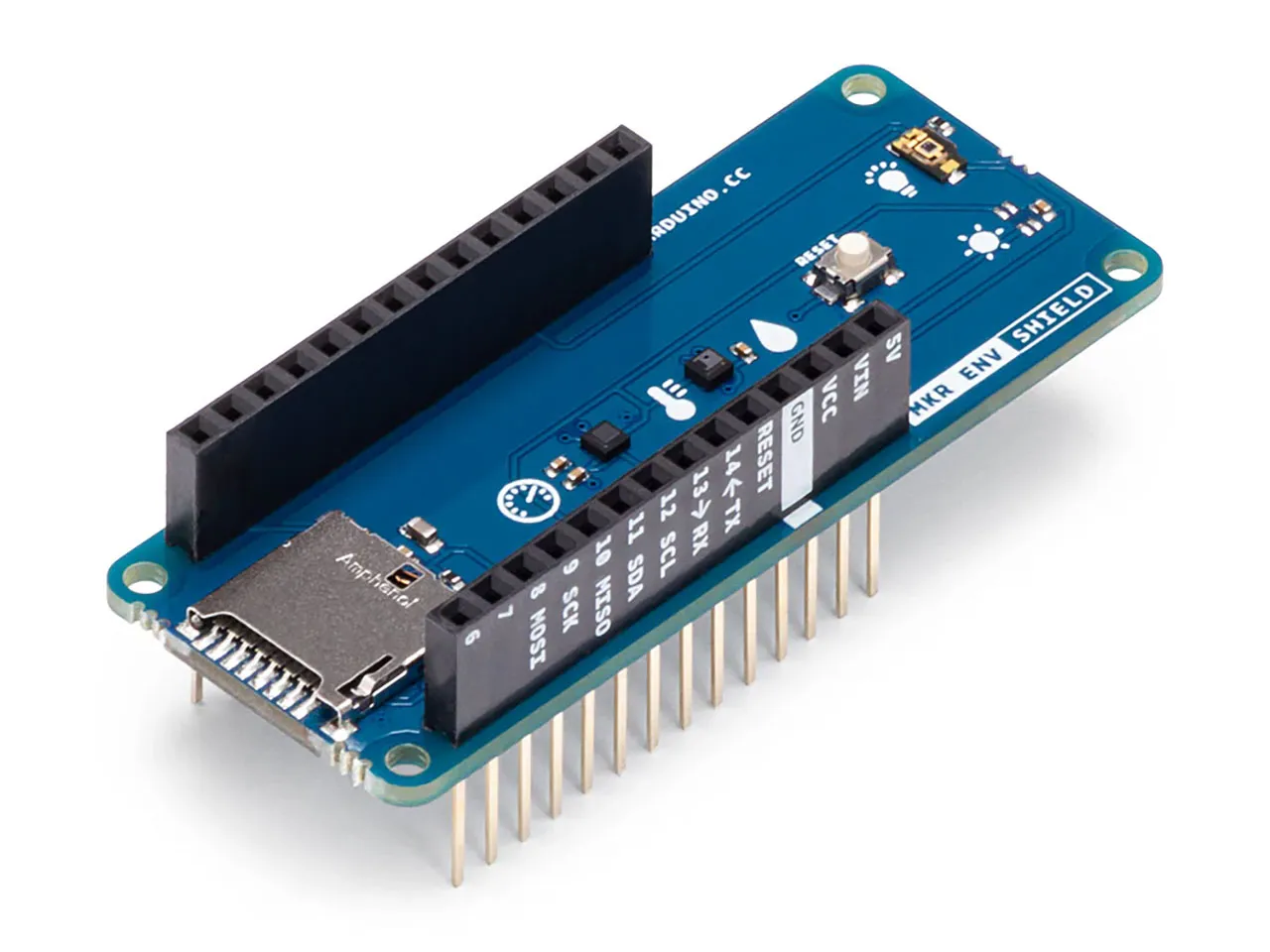

Overview

The MKR ENV Shield allows a MKR board to acquire environmental data collected by an array of sensors.

These sensors are of the latest generation and measure:

  • Atmospheric pressure
  • Temperature and humidity
  • Light intensity (in LUX, max 650)
To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided). There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used:
  • ST LPS22HB: atmospheric pressure
  • ST HTS221: temperature and humidity
  • VISHAY TEMT6000: Lux of the ambient.

,
