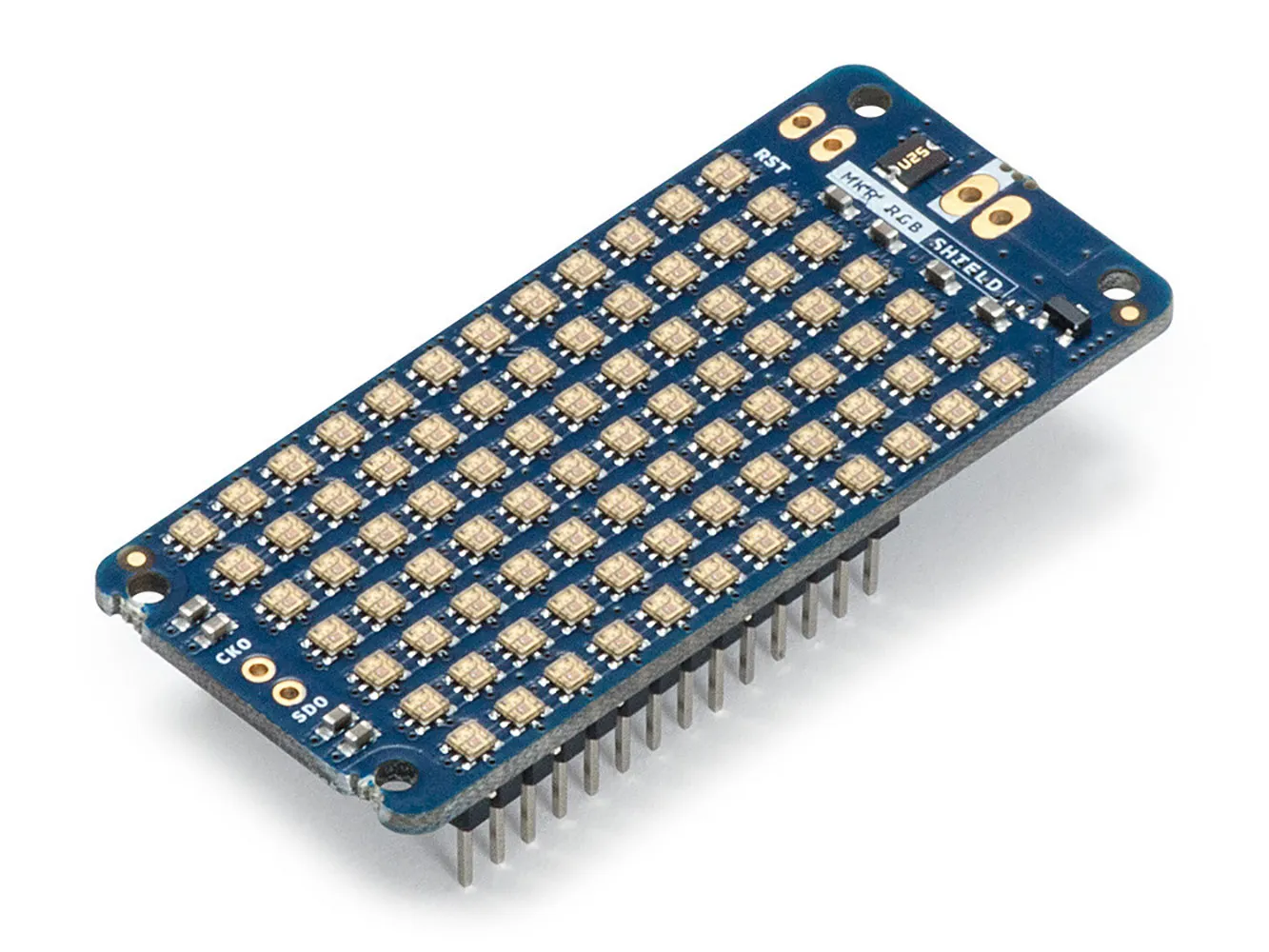

Arduino MKR 84 RGB LED Shield

Write messages and add colorful graphics with this shield. A ready to use library with examples and methods is available for use to easily write static and scrollable text (see below for download). You can use this shield to show values from your board, and it's controllable from the Arduino IoT cloud. No need for solder or special adapters; just plug the RGB matrix shield on top of your favorite MKR board and you are ready to go! The mounted LEDs are very dense and bright and have full RGB colors!

Don't miss our getting started guide that explains everything you need to use the shield!

Specifications

• LEDs: 84 RGB (APA102)
• Input Voltage: 5V
• Maximum Current: 2.5 A
• Communication: SPI
• Size: 2.42"L x 1.06"W (61.5 x 27 mm)
• Compatibility: MKR Family

Resources & Downloads

• Getting Started Guide (off-site)
• EAGLE files (.zip)
• Schematic (.pdf)
