Arduino GIGA Display Shield

Features

Connectors
  • Camera: SOCKET 2ROW 20POS VERTICAL PASS THROUGH (Arducam compatible)
  • Display Video: F32Q-1A7H1-11020
  • Display Touch: F32Q-1A7H1-11008
Display
  • KD040WVFID026-01-C025A
  • Size: 3.97”
  • Resolution: 480 x 800 RGB
  • Color: 16.7M
  • Touch Mode: Five points and Gestures
  • Interface: I2C
Sensors
  • IMU: BMI270
  • Microphone: MP34DT06JTR

Overview

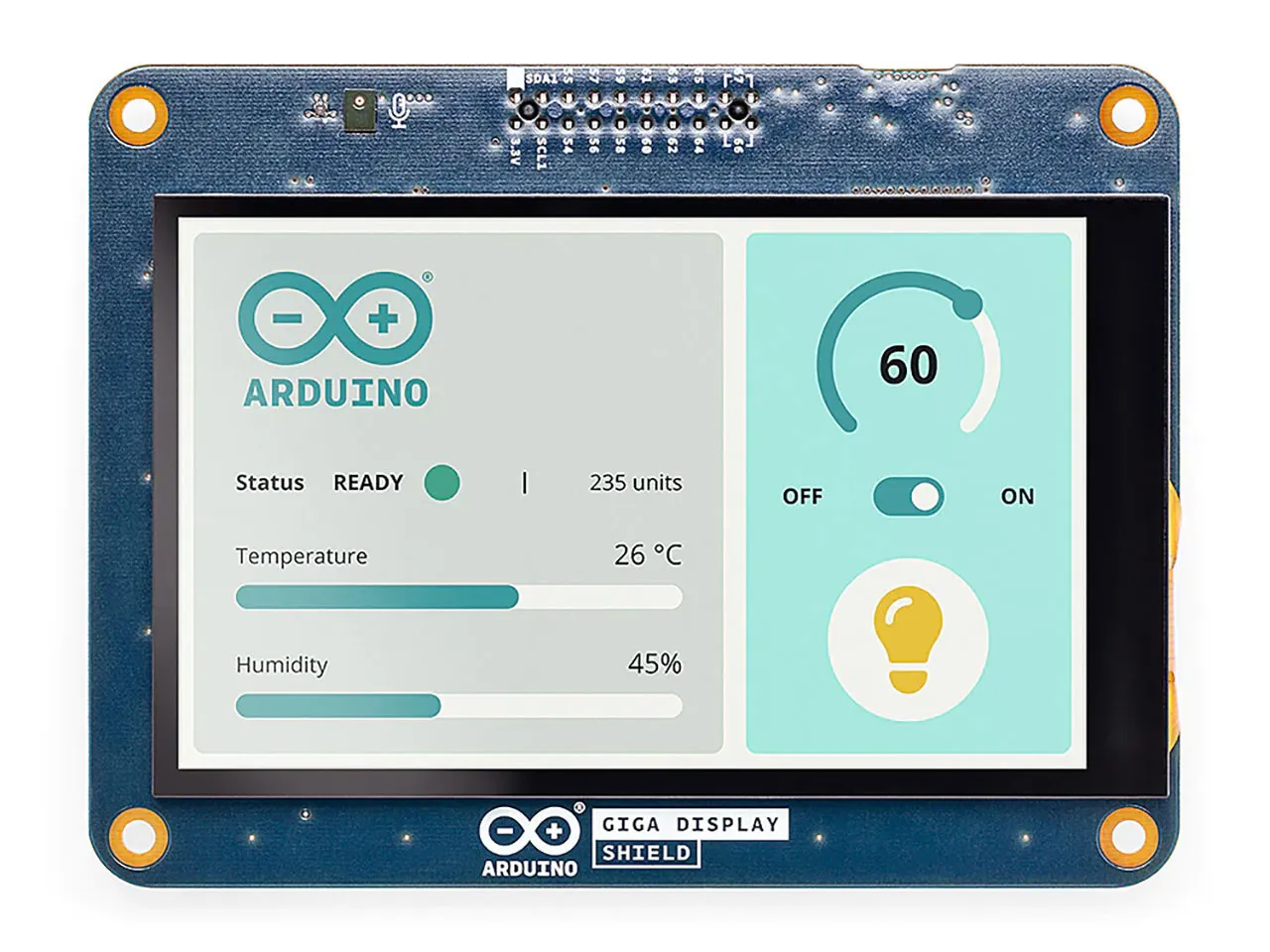

Introducing the GIGA Display Shield, a touch screen shield designed to easily deploy graphic interfaces in your projects. Capitalizing on the new pin header connector in the middle of GIGA R1 WiFi, this shield offers seamless integration and enhanced functionalities.

With the GIGA Display Shield, you gain access to a multitude of features, including a digital microphone, a 6-axis IMU, and the Arducam connector. These added capabilities allow you to completely utilize the other 54 available pins, which makes it incredibly convenient to create handheld devices or dashboards for controling your project.

,
