Arduino 4 Relays Shield

Arduino

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$30.490

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$30.490	-	-
25+	$24.550	5.94	19.48%
250+	$20.950	9.54	31.29%

The Arduino 4 Relays Shield allows your Arduino driving high power loads.

Features

Thinker Kit interface: 2x TWI, 2x OUT, 2x IN
Interfaces with Arduino Board: DIO
Relays: 4 (60W)
Operating Voltage: 5 V
Current needs: 140 mA (with all releays on, about 35 mA each)
Single pole charge-over contact maximum current: @ 30 V DC 2A
Maximum load voltage: 48 V
PCB Size: 53 x 68.5 mm
Weight: 0.044 Kg
Product Code: A000110

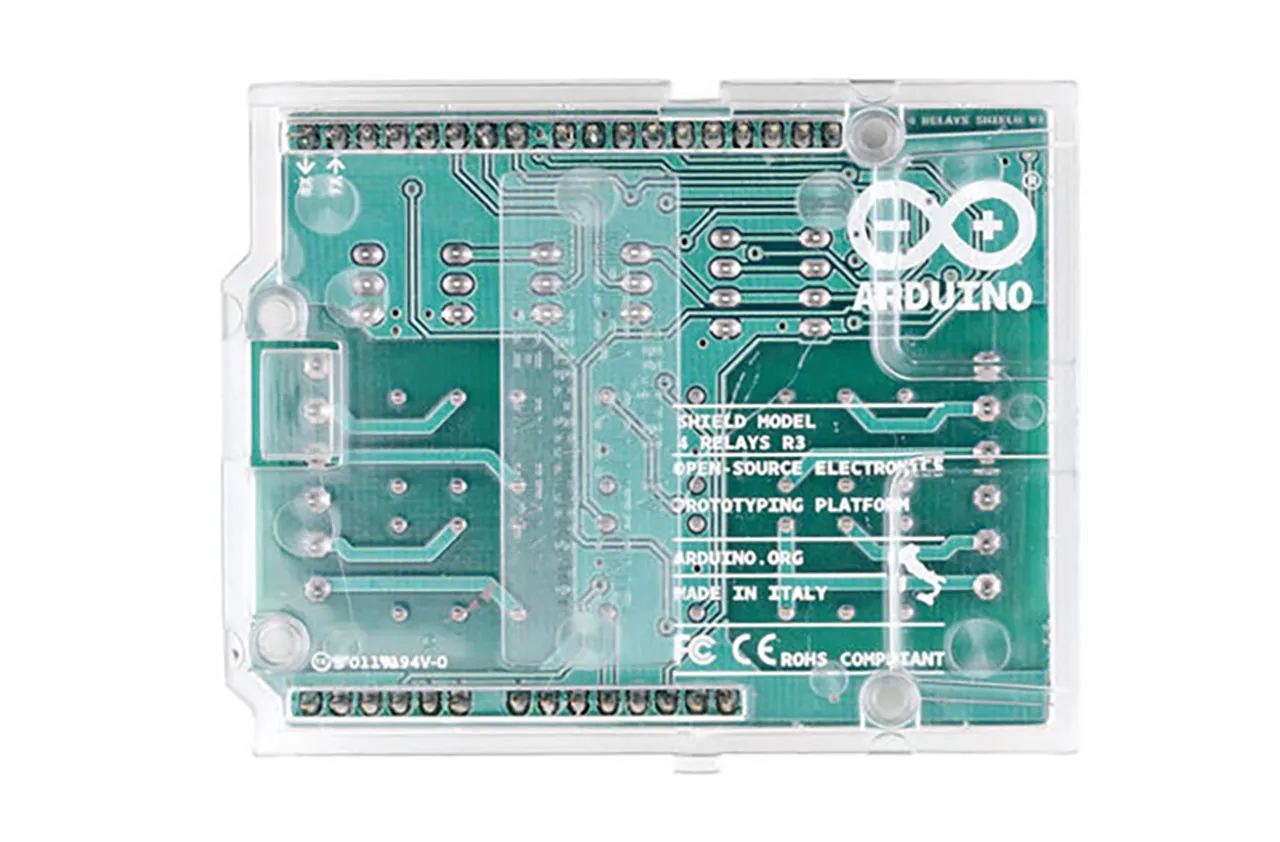

Overview

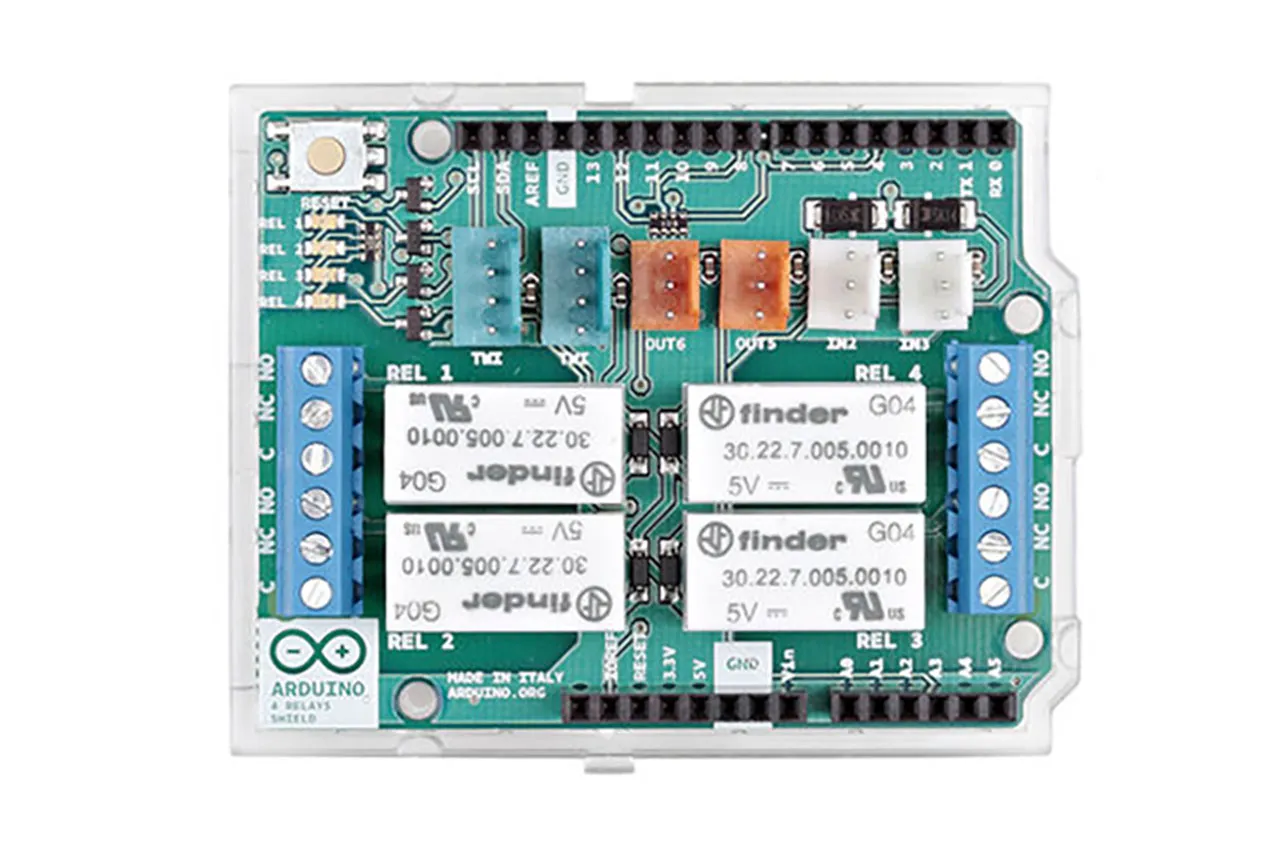

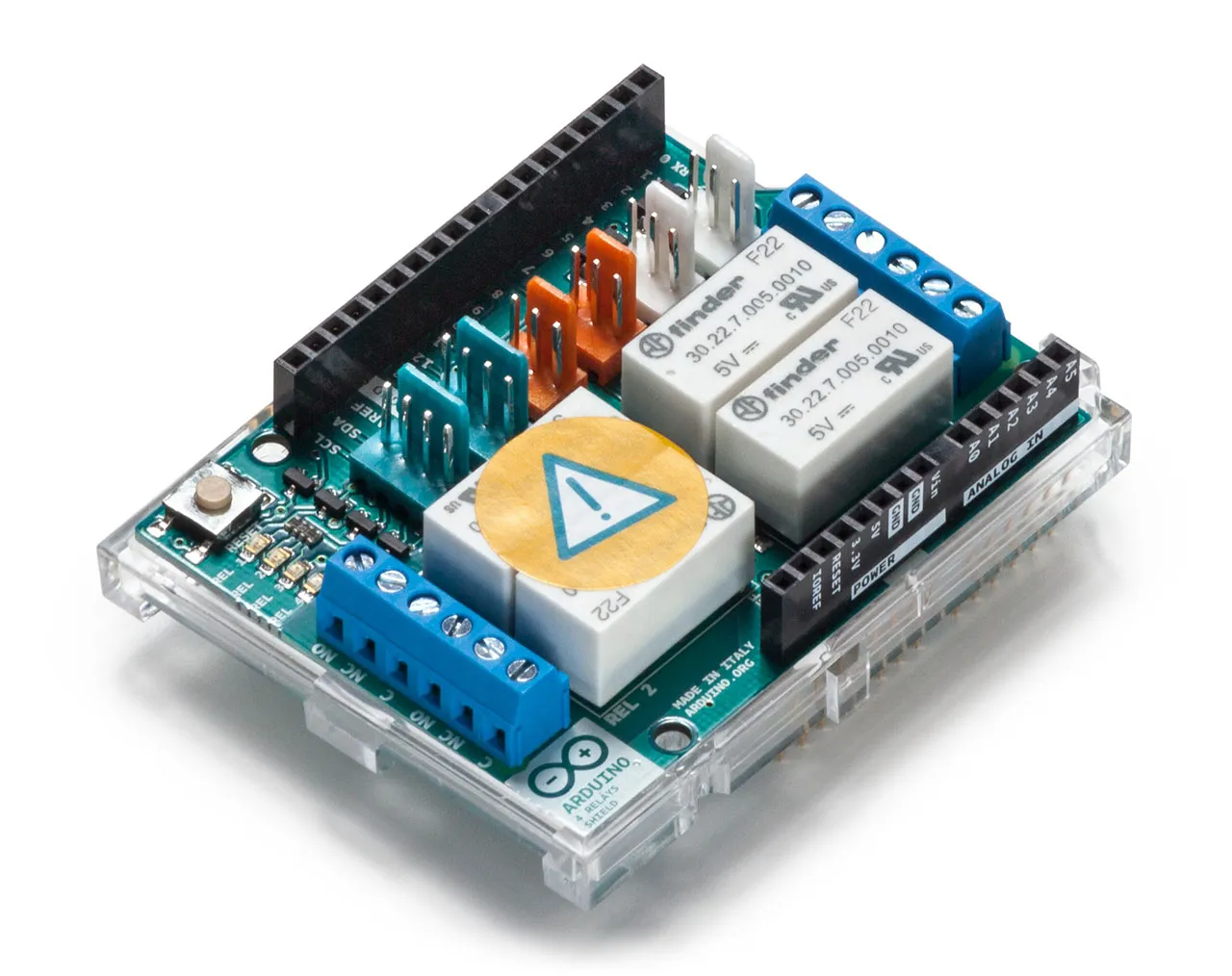

The Arduino 4 Relays Shield is a solution for driving high power loads that cannot be controlled by Arduino's digital IOs, due to the current and voltage limits of the controller. The Shield features four relays, each relay provides 2 pole changeover contacts (NO and NC); to increase the current limit of each output the 2 changeover contacts have been put in parallel. Four LEDs indicate the on/off state of each relay.
