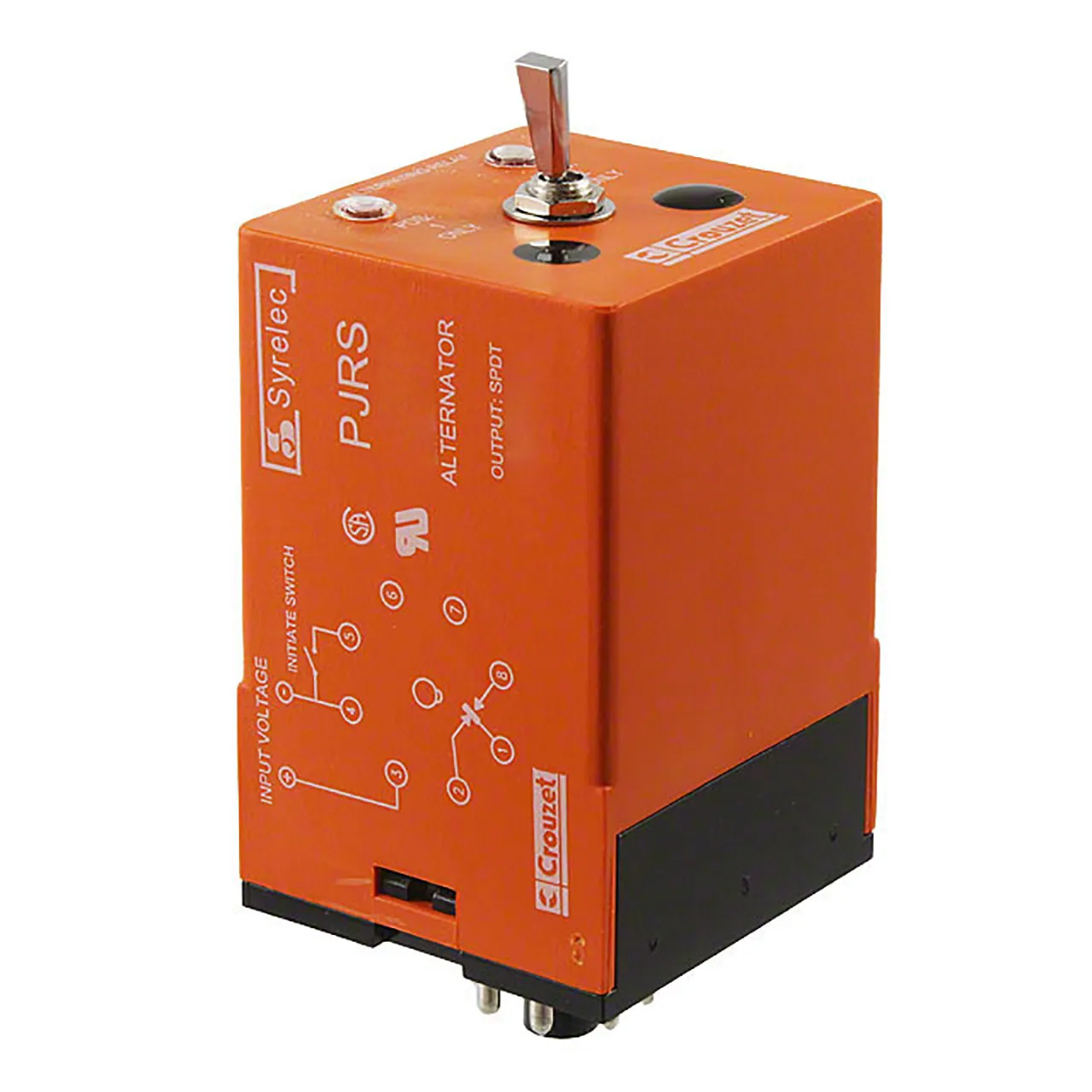

Alternating Relay with Selector Switch 8-Pin Plug-In SPDT 10A 110 VAC

Features

  • Product Type: Impulse Relay
  • Mounting: Socketable
  • Control Voltage: 250 VAC, 250 VDC
  • Agency Approvals: CSA, UL
  • Contact Rating: 10 A
  • Manufacturer Series: JR
  • Coil Voltage: 110 VAC
  • Contact Form: SPDT (1 Form C)
  • Additional Feature: Lighted Indicator
  • Power Rating: 2200 VA, 80 W
  • Relay Construction: Latching, Single Coil
  • Termination: Plug In, 8 Pin (Octal)
  • Minimum Operating Temperature: -10°C
  • Maximum Operating Temperature: 60°C
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Harmonized Code: 8536490099
  • ECCN: EAR99

Overview

Alternating Relay with Selector Switch 8-Pin Plug-In SPDT 10A 110 VAC.

Product Identification

Manufacturer Series:JR
Additional Feature:Lighted Indicator
Product Type:Impulse Relay

Compliance

Agency Approvals: UL, CSA

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Features

Relay Construction: Single Coil, Latching
Contact Form:SPDT (1 Form C)
Coil Voltage:110 VAC
Control Voltage: 250 VDC, 250 VAC
Contact Material:Silver Cadmium Oxide (AgCdO)
Termination: 8 Pin (Octal), Plug In
Contact Rating:10 A
Power Rating:2200 VA, 80 W
,
