Air-Flow switch, NO with Mounting clip and clamp (for attach

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$83.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$83.850	-	-
5+	$76.950	6.90	8.23%
25+	$70.850	13.00	15.5%

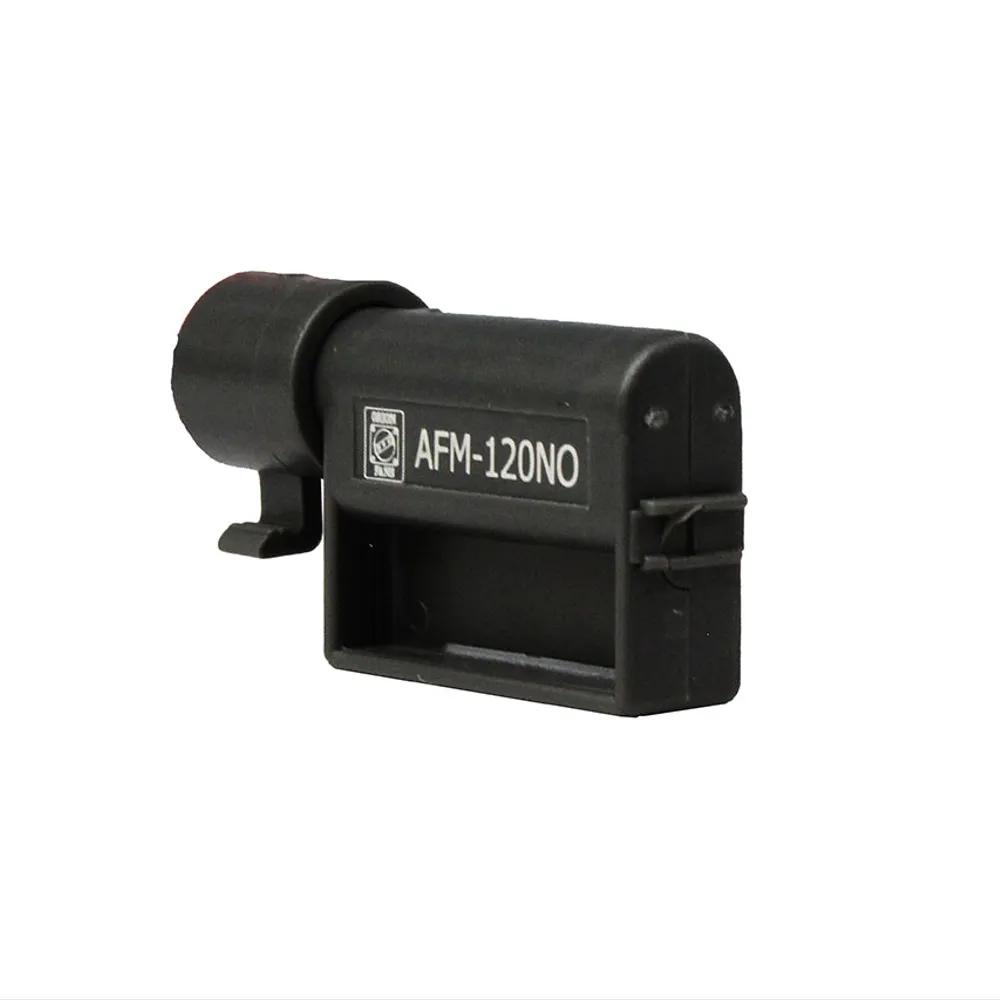

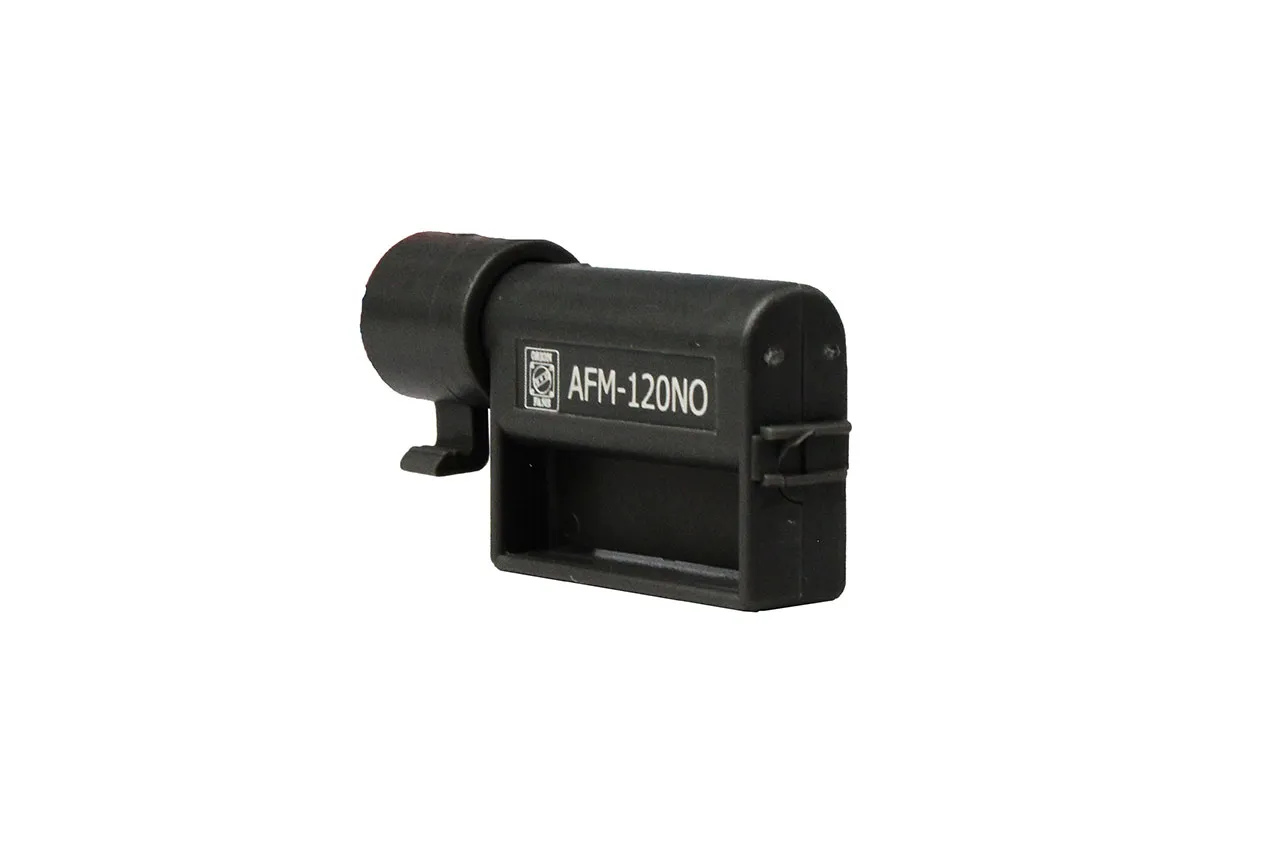

Air-Flow Switch NO with Mounting Clip and Clamp (for attaching to existing fan assembly)

Features

Product Type: Air Flow Switch - NO
Maximum Switching Voltage: 60 VDC
Maximum Switching Current: 170 mA
Additional Features: Normally Open Switch, With Mounting Clip & Clamp
Width: 1.30 in., 34 mm
Height: 0.70 in., 17.50 mm
Depth: 0.30 in., 7.50 mm
Agency Approvals: CE, NEMA 1
IP Rating: IP20

Overview

The Air-flow monitor provides a simple alternative to indicate positive or negative air flow of fals or blowers. When properly installed and connected in series with an optical (ie. LED) or auduble signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2 ft/s, turning the signaling device on or off. The AFM monitor can also be attached to an existing plastic grill or guard.
