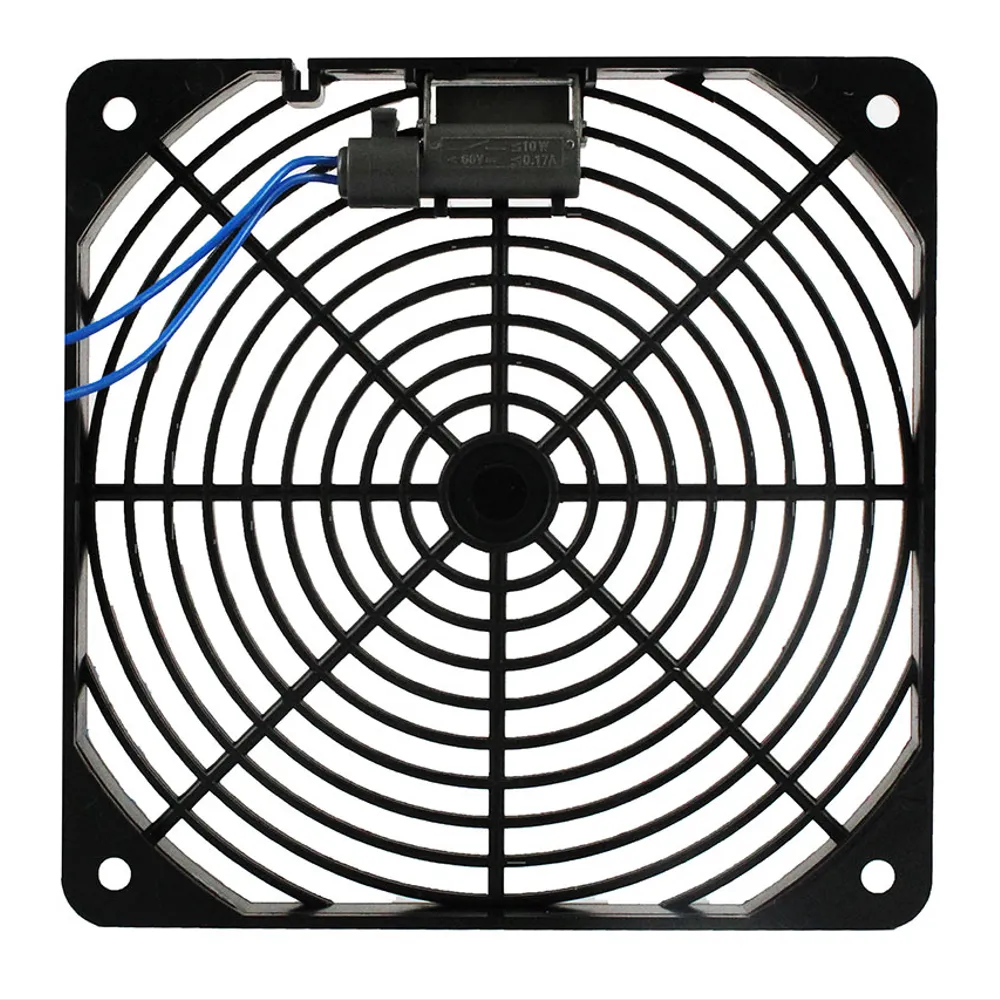

Air-flow Monitor NO with 92x92mm (3.62") Plastic Finger Guard

Features

  • Product Type: Air Flow Monitor - NO
  • Maximum Switching Voltage: 60 VDC
  • Maximum Switching Current: 170 mA
  • Additional Features: Normally Open Switch, With 92x92mm Plastic Guard
  • Fits Fan Size: 92mm
  • Width: 1.30 in., 34 mm
  • Height: 0.70 in., 17.50 mm
  • Depth: 0.30 in., 7.50 mm
  • Agency Approvals: CE, NEMA 1
  • IP Rating: IP20

Overview

The Air-flow Monitor provides a simple alternative to indicate positive or negative air flow of fals or blowers. When properly installed and connected in series with an optical (ie. LED) or auduble signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2 ft/s, turning the signaling device on or off. The AFM Monitor can also be attached to an existing plastic grill or guard.

Product Identification

Additional Feature:Normally Open Switch, With 92x92mm Plastic Guard
Product Type:Air Flow Monitor - NO

Compliance

RoHS Status:ROHS Compliant
Agency Approvals: NEMA 1, CE

Dimensions & Appearance

Depth:0.30 in., 7.50 mm
Height:0.70 in., 17.50 mm
Width:1.30 in., 34 mm

Features

IP Rating:IP20
Voltage Rating:60 VDC
Current Rating:170 mA

Related products

Fits Fan Size:92mm
,
