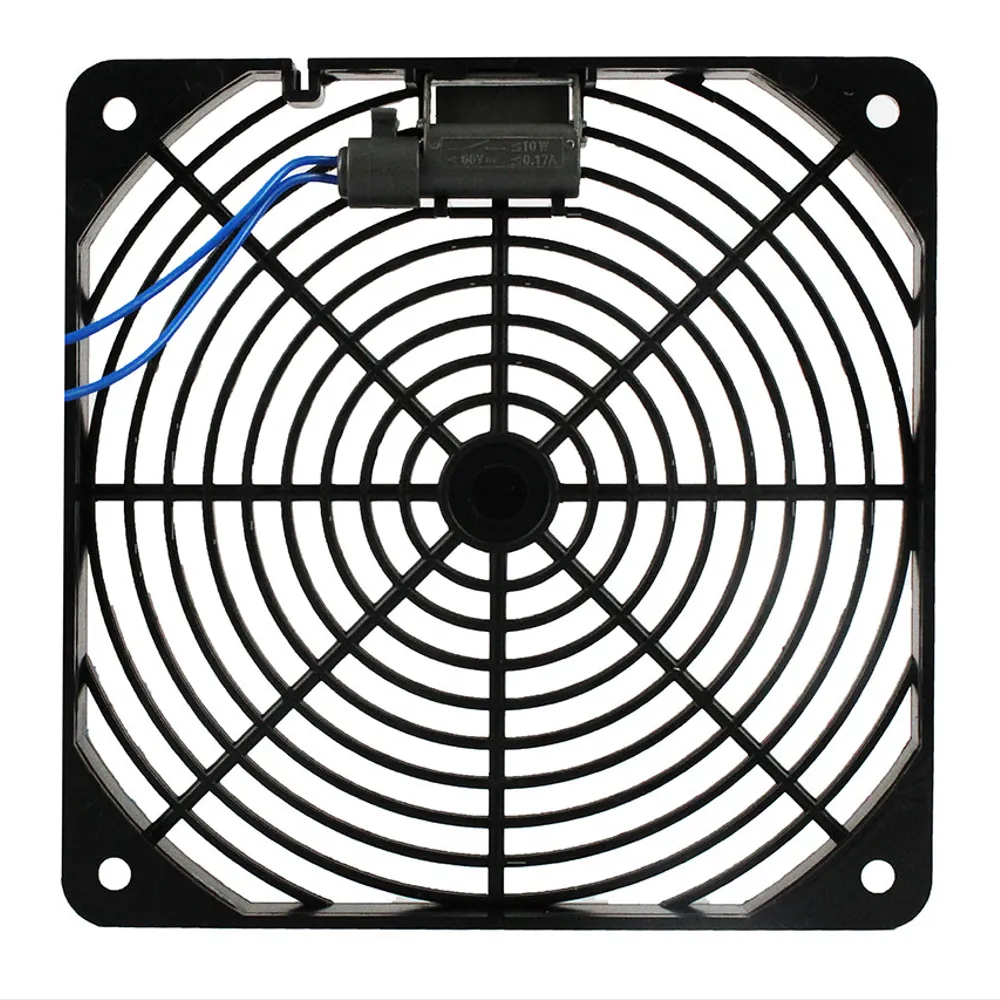

Air-Flow Monitor NC with 120x120mm (4.27") Plastic Finger Guard

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$51.750

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$51.750	-	-
5+	$47.550	4.20	8.12%
25+	$43.650	8.10	15.65%

Features

Product Type: Air Flow Monitor - NC
Maximum Switching Voltage: 240 VAC/DC
Maximum Switching Current: 500 mA
Additional Features: Normally Closed Switch, With 120x120mm Plastic Guard
Fits Fan Size: 120mm
Width: 1.30 in., 34 mm
Height: 0.70 in., 17.50 mm
Depth: 0.30 in., 7.50 mm
Agency Approvals: CE, NEMA 1
IP Rating: IP20

Overview

The Air-flow Monitor provides a simple alternative to indicate positive or negative air flow of fals or blowers. When properly installed and connected in series with an optical (ie. LED) or auduble signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2 ft/s, turning the signaling device on or off. The AFM Monitor can also be attached to an existing plastic grill or guard.
