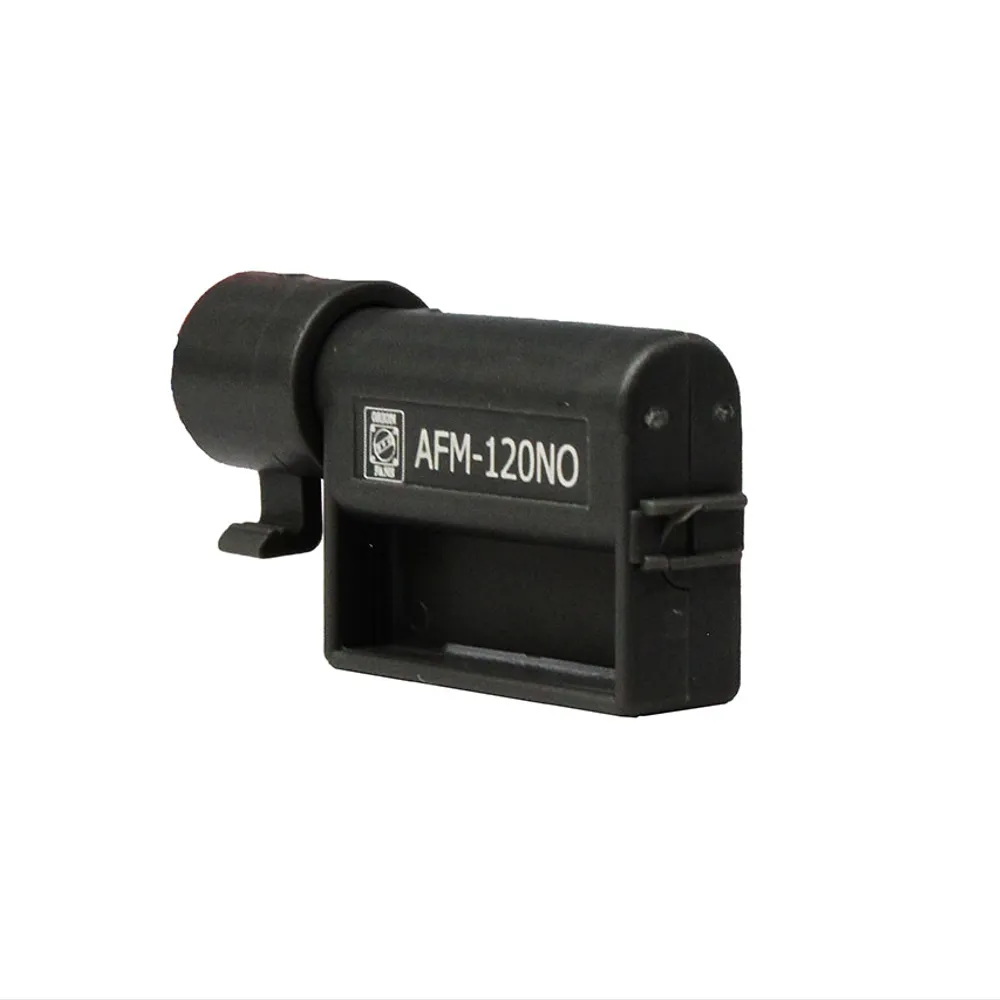

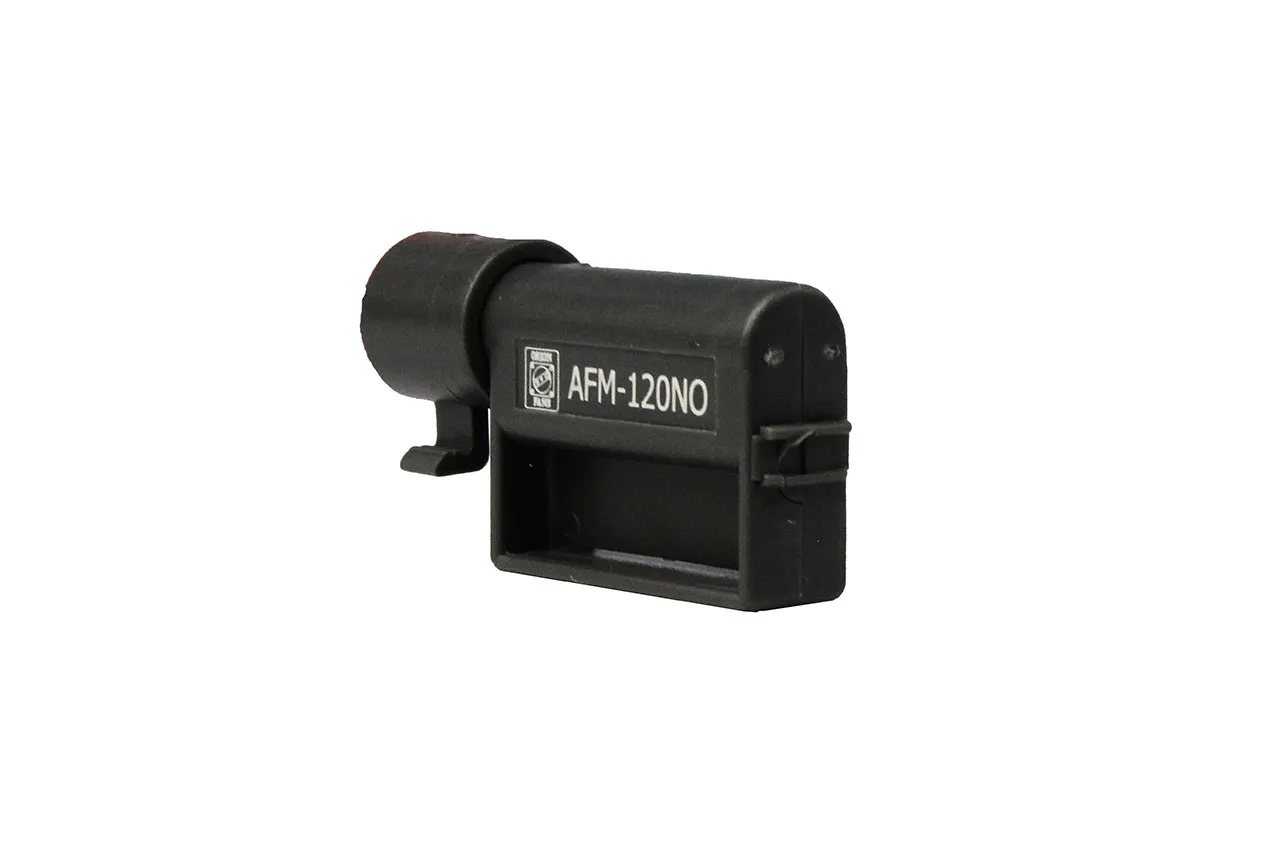

Air Flow Monitor Kit for 80 92 or 120mm Fan with LED Buzzer and More

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$79.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$79.850	-	-
5+	$73.450	6.40	8.02%
25+	$67.550	12.30	15.4%

Features

Product Type: Air Flow Monitor - NC Kit
Maximum Switching Voltage: 240 VAC/DC
Maximum Switching Current: 500 mA
Additional Features: Normally Closed Switch, With 80 92 & 120mm Plastic Guard, Buzzer, LED Holder, Power Supply
Fits Fan Size: 80mm, 92mm, 120mm
Width: 1.30 in., 34 mm
Height: 0.70 in., 17.50 mm
Depth: 0.30 in., 7.50 mm
Agency Approvals: CE, NEMA 1
IP Rating: IP20

Overview

The Air-flow monitor provides a simple alternative to indicate positive or negative air flow of fals or blowers. When properly installed and connected in series with an optical (ie. LED) or auduble signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2 ft/s, turning the signaling device on or off. The AFM monitor can also be attached to an existing plastic grill or guard.

The Air-Flow Monitor Kit includes air-flow switch (AFM-01NC), clip, three plastic guard (80, 92, and 120mm), LED and holder, buzzer, switch and wall-mount power supply, and with 10-foot wire assembly.
