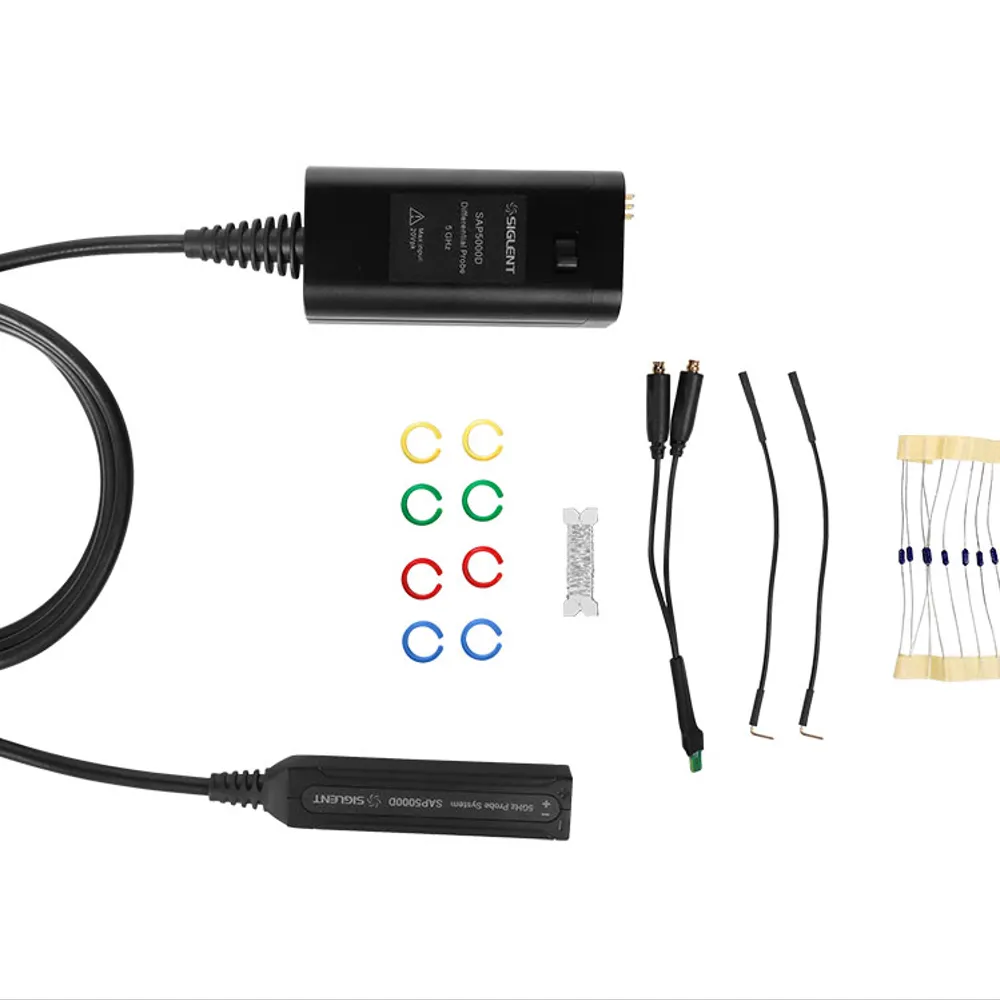

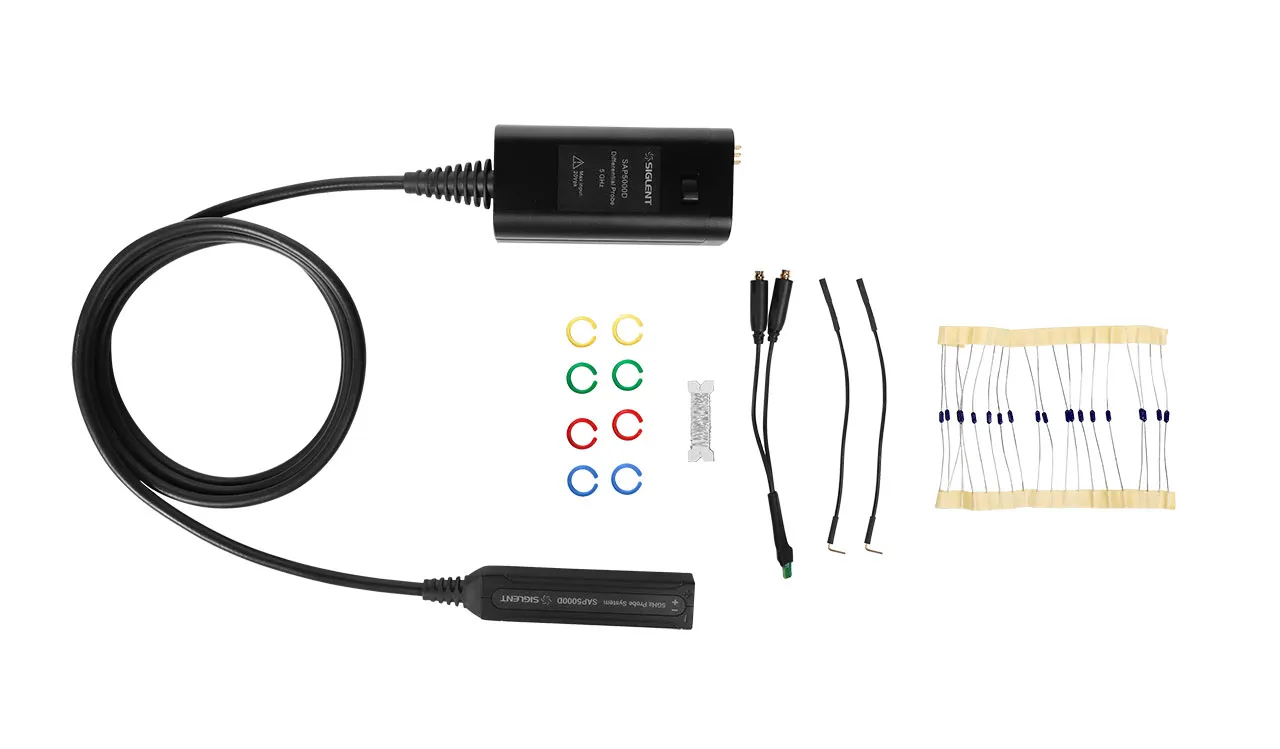

Active Differential Probe 5Ghz Bandwidth 10 to 1 Attenuation

Siglent Technologies

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$4242.000

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$4242.000	-	-

Features

Probe Bandwidth: DC to >5 GHz
Single-ended input resistance: 10 kOhm
Differential input resistance: 20 kOhm
Probe gain: 10:1
Differential input capacitance: 400 fF
±2.5 V input dynamic range
±12 V offset voltage setting range
SAPBus interface

Overview

The SAP5000D is a high-bandwidth differential active probe known for its high bandwidth, low noise, and high input impedance, making it ideal for measuring high-speed signals. Its high input resistance and low input capacitance characteristics ensure minimal load introduced to the measurement system.

The SAP5000D active probe utilizes the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the Siglent SDS5000X, SDS6000 Pro, and SDS7000A series oscilloscopes. The SAP series active probes do not require external power sources as the oscilloscope provides power and communication interface to the active probe via the SAPBus. When connected to the oscilloscope, the SAP series active probes allow you to read probe information from the oscilloscope's interface.
