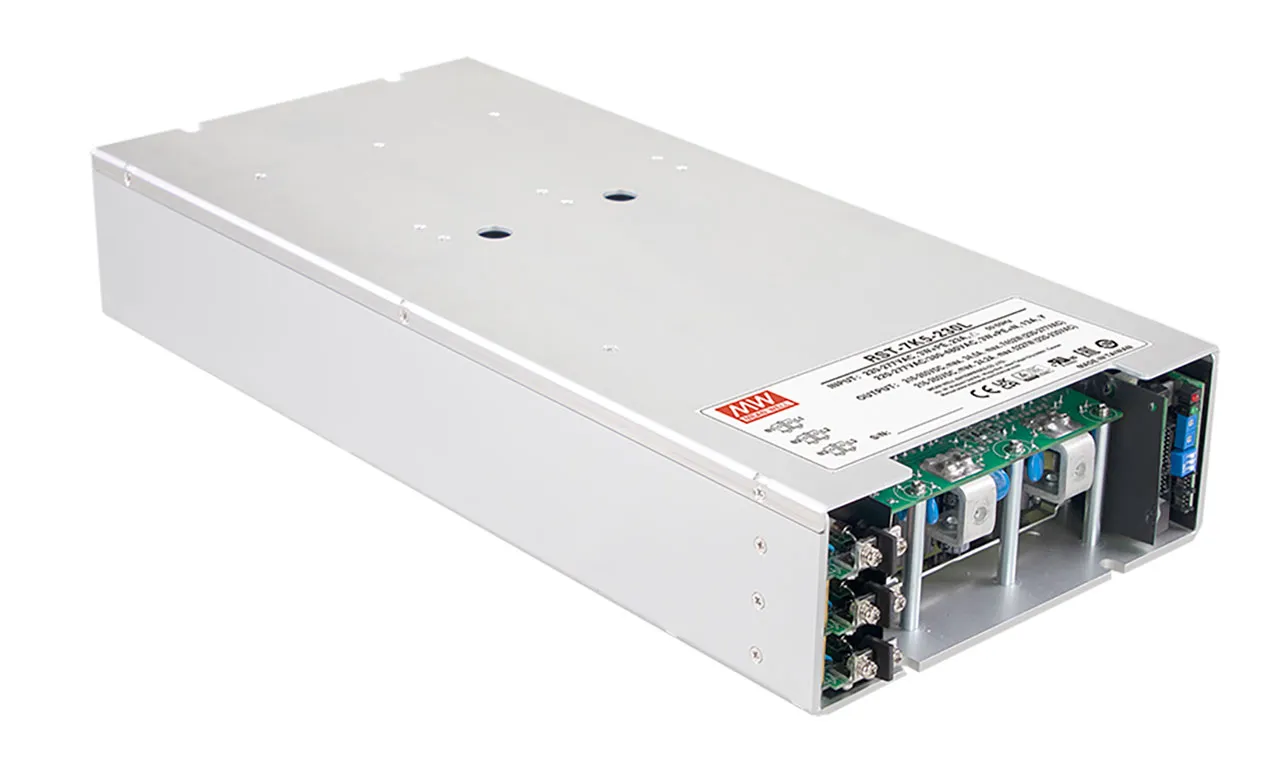

AC-DC Switching Power Supply 230 VDC 34.5 Amps 7452 Watts 3-Phase Input Water Cooled

Features

• 3-phase 3-wire 196-305VAC or 3-phase 4-wire 340-530VAC wide input range
• Built-in active PFC function
• High efficiency up to 95%
• Water cooled
• Output voltage and constant current level programmable
• Wide voltage adjustment range 1 to 120%
• Active current sharing up to 4 units (28.5KW)
• Built in remote ON-OFF control, alarm signal
• Protections: short circuit, overload, over voltage, over temperature, fan fail
• 5 year warranty

Overview

RST-5000 is a 5KW single output enclosed type AC/DC oiwer supply. This series operates for the wide range three phase AC input (3 phase 3-wire / (delta) 196-305VAC or 3 phase 4-wire / (wye) 340-530VAC) and offers the models with the DC output mostly in demand from the industry. Each model is cooled by an internal fan with fan speed control, working for the temperature up to 70C. Moreover, RST-5000 provides vast design flexibility by equipping various built-in functions such a sthe output programming, active current sharing, remote ON-OFF control, auxiliary power, and more.

Applications

• Energy & power system
• UV or laser diode application
• Electrolysis system
• Factory control or automation apparatus
• Burn-in facility
• RF application
• EV charging station
